Product Details
Place of Origin: shenzhen
Model Number: BT-PA398-35M8W-RS485
Payment & Shipping Terms
Price: Price negotiable
Packaging Details: Carton
Delivery Time: 35 days upon PO
Payment Terms: L/C,T/T
Frequency Rang(MHz): |
380-415MHz |
Dimensions: |
200 × 140 × 28 Mm |
Gain(max.): |
50±2dB |
Output Power(max.): |
39±1dBm |
Band Width (MHz): |
35MHz |
Input Power (max.): |
+10dBm |
Frequency Rang(MHz): |
380-415MHz |
Dimensions: |
200 × 140 × 28 Mm |
Gain(max.): |
50±2dB |
Output Power(max.): |
39±1dBm |
Band Width (MHz): |
35MHz |
Input Power (max.): |
+10dBm |

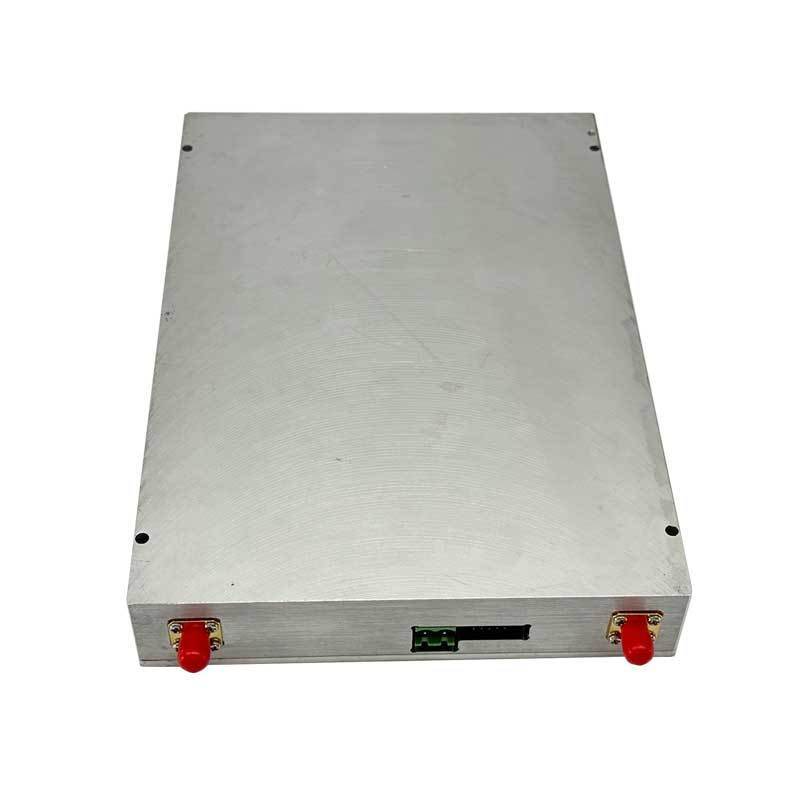

A 380–415 MHz TETRA RF power amplifier module designed for wireless communication systems, featuring 8 W maximum output power, up to 50 dB gain, adjustable gain control, ALC, and RS485 monitoring.
| Parameter | Specification |
|---|---|
| Frequency | 380–415 MHz |
| Output Power | 39 ± 1 dBm / Max. 8 W |
| Gain | 50 ± 2 dB Max. |
| Power Supply | +28 V DC / ≤3.8 A |
The BT-PA398-35M8W-RS485 is a TETRA RF Power Amplifier Module designed for the 380–415 MHz frequency range. It provides up to 39 ± 1 dBm output power with a maximum gain of 50 ± 2 dB, providing RF amplification within wireless communication equipment.
The module amplifies RF signals within the 380–415 MHz band and supports adjustable gain, Automatic Level Control (ALC), and RF performance monitoring. Its RF interface uses an SMA connector, while an RS485 interface provides configuration, status query, alarm, and monitoring functions.
The module combines high RF gain, adjustable gain control, ALC, RS485 monitoring, and protection functions in a compact 200 × 140 × 28 mm package. The module also supports temperature, VSWR, power, and PA fault monitoring for integration into wireless communication equipment.
Wide 35 MHz Operating Band
Designed for RF amplification across the 380–415 MHz frequency range, with a 35 MHz bandwidth.
Up to 39 ± 1 dBm Output Power
Provides maximum output power of 39 ± 1 dBm, equivalent to approximately 8 W, for RF system integration.
Flexible Gain Control
Maximum gain reaches 50 ± 2 dB, with an adjustable gain range of at least 25 dB and gain adjustment steps of ≤1 dB.
Integrated Signal Management
The module supports ALC ≥10 dB and RS485-based monitoring of forward power, reverse power, temperature, VSWR, ALC and attenuation.
Built-In RF Protection
The module supports over-temperature, over-power, VSWR and PA fault alarms. At temperatures above 85°C, the PA switches off and automatically resumes operation below 65°C.
Remote Setup & Status Query
RS485 supports PA ON/OFF, module address, ALC and ATT configuration, together with operating-status and alarm queries.
| Parameter | Specification |
|---|---|
| Frequency Range | 380–415 MHz |
| Bandwidth | 35 MHz |
| Maximum Output Power | 39 ± 1 dBm |
| Maximum Gain | 50 ± 2 dB |
| Gain Adjustable Range | ≥25 dB |
| Gain Adjustment Step | ≤1 dB |
| Gain Adjustment Error | Total error ≤ ±1.5 dB |
| Maximum Input Power | +10 dBm |
| In-Band Ripple | ≤2.0 dB |
| VSWR | ≤1.3:1 |
| IMD3 | ≤−60 dBc @ 2-tone, 200–500 kHz spacing, ×36 dBm |
| ALC | ≥10 dB |
| Frequency Range | Specification |
|---|---|
| Power Supply | +28 V DC |
| Current Consumption | ≤3.8 A |
| RF Connector | SMA-50KFD |
| Control Interface | RS485 |
| Function | Specification |
|---|---|
| Module Address | Default = 0 |
| PA Control | ON / OFF |
| ALC / ATT | Supported |
| Forward Power Detection | >20 dBm detection range |
| Forward Power Accuracy | <±2 dBm |
| Temperature Detection | 0–85°C |
| Temperature Accuracy | <±3°C |
| Over-Temperature Alarm | ＋85°C |
| Automatic Recovery | Below +65°C |
| Over-Power Alarm | Output power > Po + 2 dB |
| VSWR Alarm | Supported |
| PA Fault Alarm | Low Gain Alarm |
| Parameter | Specification |
|---|---|
| Operating Temperature | −25 to +65°C |
| Humidity | 5%–95% |
| Parameter | Specification |
|---|---|
| Dimensions | 200 × 140 × 28 mm |
| RF Connector | SMA-50KFD |
| Control Port | RS485 |
| Power/Monitor Port | 4W2 Port |
The module operates from 380 to 415 MHz, with a bandwidth of 35 MHz.
The maximum output power is 39 ± 1 dBm, corresponding to approximately 8 W.
The maximum gain is 50 ± 2 dB, with an adjustable gain range of at least 25 dB.
Yes. The module provides an RS485 interface for PA setup, operating-status queries, alarm monitoring and parameter detection.
The module supports over-temperature, over-power, VSWR and PA fault alarms. It switches off above 85°C and automatically switches on below 65°C.
The module measures 200 × 140 × 28 mm and operates from a +28 V DC power supply, with current consumption of ≤3.8 A.
