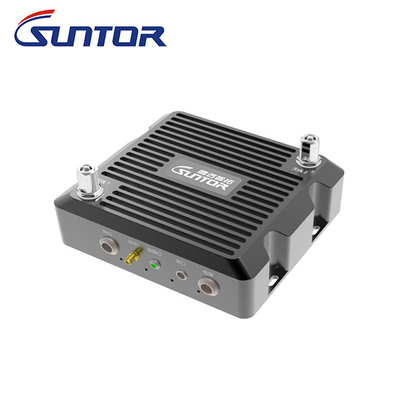

COFDM Soft Defined Radio Private IP Mesh Network For Drone / UAV / UGV / USV

Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST9904US
Minimum Order Quantity 1PCS
Price Checking with Sales
Packaging Details normal packing
Delivery Time in 12 days
Payment Terms T/T
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Frequency 1300-1500 GHz(1300-1500 Can Be Customized) Bandwidth 5/10/20 MHz
RF Power 4W Video Input IP Network And WIFI
LOS 30KM NLOS 300-1000m
Application UAV,UAS,UGVUSV Etc Receive Sensitivity -100dBm@5MHz
Highlight

4W Soft Defined Radio

,

Soft Defined Radio IP Mesh Network

,

SDR IP Mesh Network

Leave a Message
Product Description



Soft Defined Radios Private IP Mesh network For Drone/ UAV / UGV / USV



1. Feature Of Soft Defined Radios Private IP Mesh Network



---- Can be rapid deployment



----- Beidou Positioning



----- No central Networking



----- Small size with light weight



---- Ready to use at start up



---- Strong Instultability





2. Description of Soft Defined Radios Private IP Mesh Network



    Unmanned System Mesh Network radio,with small size, light weight, easy to install,



    The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.



    The transmission distance can reach more than 10km in the open environment on the ground, 300-1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.





3. Specification of Soft Defined Radios Private IP Mesh Network



System Parameter
Operating frequency 1300~1500MHz
Bandwidth 5/10/20MHz,Flexible and configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacity Peak rate 52Mbps@20MHz,can be choose 100Mbps
RF Transmitted power 4W
Receive Sensitivity -100dBm@5MHz
Video input Support IP network video input and WIFI video access(HDMI/AV need to be customized)
Networking function Networking capable ≥64 nodes
Networking hops >10 hops
Network topology Centerless network, star network, chain network, mesh network, etc
Encryption mode DES/AES128 / AES256 (Optional)
Power supply mold DC 20-36V supply
Power Consumption ≤42W
Equipment interface
Antenna interface N-K×2
WIFI interface SMA-K
Series interface Aviation interface
Ethernet interface Aviation interface
Power interface Aviation interface
Physical indicators
Dimension ≤185×135×63mm(include the interface)
Equipment Weight ≤2Kg
Protection degree IP65
Working temperature -40℃~+65℃




4. Accessories of Soft Defined Radios Private IP Mesh Network

COFDM Soft Defined Radio Private IP Mesh Network For Drone / UAV / UGV / USV 0


1 X Unmanned System Radio Host X1
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Network port air plug
1 X Serial Port air plug
1 X Power cable


5. Application of Wireless Data Links for drones,UAV,UGV,USV

Suitable for UVA, unmanned vehicles, unmanned boats, robots, and other application scenarios with lightweight networking requirements,fast network access, automatic multi-hop relay, can quickly form an interconnected three-dimensional network with handheld individual soldier system, vehicle-mounted system and surrounding base station networking equipment to achieve efficient collaboration.

COFDM Soft Defined Radio Private IP Mesh Network For Drone / UAV / UGV / USV 1


6. FAQ


Q1. Can I have a sample order for wireless data Links?

A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.

    Customized one will based on the requirements and quantity.



Q3. Do you have any MOQ limit for Unmanned System Radio?

A3: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. Is it OK to print my logo on COFDM Transmitter product?

A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
