CD15NMT Light Weight Mini Drone Data Link System 15KM 800MHz TTL Wireless Drone Video Link
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 800MHz Or 1.4GHz | Air To Ground Distance | 15KM |
|---|---|---|---|
| Interface | Ethernet Port+TTL | Bandwidth | 3/5/10 MHz |
| RF Transmission Power | 300mW | Power Supply | DC 9-13V |
| Size | 88*55*17mm | Weight | 110g |
| Highlight | TTL Drone Data Link System,15KM Drone Data Link System,Lightweight Drone Video Link |
||
Product Description

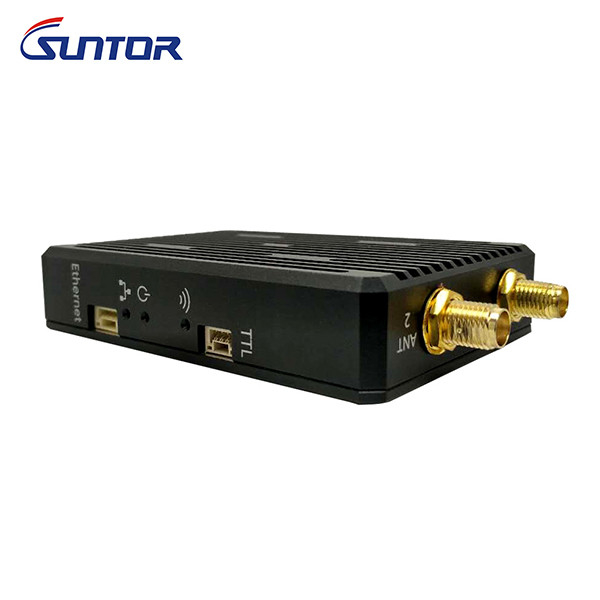

Light Weight Mini 15KM 800MHz TTL Drone Wireless Video Data Link
1. Fast details and feature of Drone Wilress Video Data Link
---Long range more than 15km in LOS, 200meters-500meters in NLOS
---Lowest RF power 25dBm and power consumption TX 5W RX 5W
---Support IP video output and bidirectional TTL serial data
---The uplink and downlink data link transmission rates can be adjusted proportionally(2D3U,3D2U,4D1U)
---Optional Bandwidth(3MHz/5MHz/10MHz/20MHz)
---TDD OFDM wireless transmission technology
---Optional frequency 800MHz,1.4GHz,2.4GHz
---Dimension 88x55x17mm Weight N.W.:110g N.W.:140g(included antenna)
---Duplex Transmitting Rate is 3-8Mbps
---Support Point to Point and Point to Multi-Point in 1-4 TX to 1RX, or 1TX to 1-4 RX. For example: Three drones to one GCS, Three GCS to one drone
---Dual antenna diversity design to make the signal transmission quality more stable, and high receiving sensitivity
2. Description of Drone Wilress Video Data Link
CD15NMT is the latest miniaturized and functional wireless transmission equipment.
It adopts TDD wireless transmission technology and dual antenna diversity design to make the signal transmission quality more stable.
The device can support bidirectional transmission of network data and TTL serial data at the same time.
3. Specification of Drone Wilress Video Data Link
Hardware
| RF | Frequency | 2.4G(2401.5-2481.5MHz) 1.4G(1427.9-1447.9MHz) 800M(806-826 MHz) |
| RF Power | 25dBm±2 | |
| Receivng sensitivity | 2.4G(1Mbps):20MHz -99dBm 10MHz -102dBm5MHz -104dBm 3MHz -106dBm1.4G(1Mbps):10MHz -103dBm 5MHz -106dBm 3MHz -108dBm800M(1Mbps):10MHz -103dBm 5MHz -106dBm 3MHz -108dBm | |
| Antenna | Double Antenna | SMA Type |
| Serial Port | TTL *1 | Baud rate 115200 |
| Power | consumption | 5V power supply the consumption maximum in 850mA±15%. |
| 9~13V | optional | |
| Working temperature | -25℃~60℃ | |
Wireless
| Anti-interference | Frequency hopping | Support automatic frequency hopping in the range of frequency |
| Retransmission configuration | Select whether to retransmit according to different data carried | |
| Transmitting mode | Transmission mode |
Single antenna transmission, single antenna receiving / single antenna transmitting, dual antenna receiving |
| Data link | Master-slave data bidirectional communication, dynamically adjusting rate based on wireless data | |
| Access | PTP;PTMP | |
| Bandwidth | 2.4GHz | 3MHz/5MHz/10MHz/20MHz |
| 1.4GHz | 3MHz/5MHz/10MHz | |
| 800MHz | 3MHz/5MHz/10MHz | |
| Rate | Single node supports up to 30Mbps, adaptive average distribution system rate | |
| Encryption |
Support user configuration layer 2 encryption to turn off And encryption (ZUC, SNOW3G, AES three encryption options are optional) |
|
| Modulation | QPSK,16QAM,64QAM | |
| Latency | Air latency | Delay from node-central node transmission <10ms |
| Start delay | entral node/slave node boot delay <15s | |
| Network Start | Time <1min |
4. FAQ of Drone Wilress Video Data Link
Q1. Can I have a sample order for Drone Wireless Video Data Link?
A1: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.Customzied one will based on your requirements and quantity.
Q3. What is your MOQ for Drone Wireless Video Data Link?
A3: Low MOQ, 1 set (including transmitter and receiver)
Q4. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on Drone Wireless Video Data Link?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
