Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: ST9901HH
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Check with sales person
Packaging Details: normal packaging or according to your requirements
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000set
Working Frequency: |
1300-1500MHz Or 600-800MHz |
Bandwidth: |
5/10MHz |
Using Technical: |
FPGA |
RF Transmitted Power: |
1W |
NLOS Distance: |
300-500m |
Encryption Mode: |
DES/AES128 / AES256 (Optional) |
Receive Sensitivity: |
-100dBm@5MHz |
Protection Grade: |
IP65 |
Working Frequency: |
1300-1500MHz Or 600-800MHz |
Bandwidth: |
5/10MHz |
Using Technical: |
FPGA |
RF Transmitted Power: |
1W |
NLOS Distance: |
300-500m |
Encryption Mode: |
DES/AES128 / AES256 (Optional) |
Receive Sensitivity: |
-100dBm@5MHz |
Protection Grade: |
IP65 |

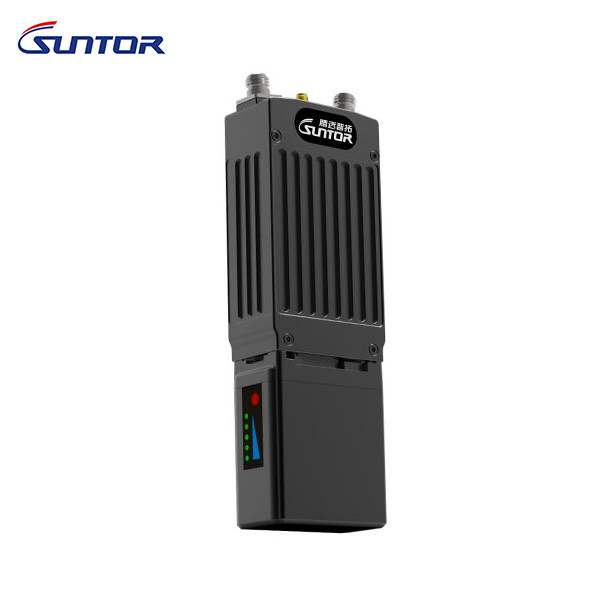

FPGA Self-healing MIMO Mobile Ad Hoc networking Tranmsitter and Receiver
1.Main feature of Mobile Ad Hoc networking
Secure/Encryption: DES/AES128/AES256(optional)
Receive sensitivity:-100dbm@5MHz
Modulation: COFDM
Support for 64 nodes
Transparent transmission of IP date
Power Consumption: 20W
Air to Ground: 20KM
Los distance:5KM
NLOS distance: 300-500M
2. Description of Mobile Ad Hoc networking
Handheld mesh(ad hoc) radio is a 2×2 MIMO radio, delivering best-in-class performance and efficiency in a miniature package. It is ideal for use in portable and embedded applications where size, weight, power or cost are key.
With mall size,light weight,equipped with removable lithium battery,can be held in hand,but also can be placed on the shoulder and back of a individual solider to carry.
3. Specification of Mobile Ad Hoc networking
System Parameter | ||
Operating frequency | 1300~1500MHz(200MHz-1.5GHz can be customized) | |
Bandwidth | 5/10MHz,Flexible and configurable | |
Transmission system | COFDM | |
Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
Transmission capacity | Peak rate 26Mbps@10MHz | |
RF Transmitted power | 1W | |
Receive Sensitivity | -100dBm@5MHz | |
Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) | |
Networking function | Networking capable | ≥64 nodes |
Networking hops | >10 hops | |
Network topology | Centerless network, star network, chain network, mesh network, etc | |
Encryption mode | DES/AES128 / AES256 (Optional) | |
Power supply mold | Allocate DC 12.6V removable lithium battery | |
Power Consumption | ≤20W | |
Equipment interface | ||
Antenna interface | TNC-K×2 | |
WIFI interface | SMA-K | |
Network Interface | Aviation interface | |
Voice interface | Aviation interface | |
Physical indicators | ||
Dimension | ≤230×74×39mm(include battery) | |
Equipment Weight | 1200g(include battery) | |
Protection degree | IP65 | |
Operating temperature | -40℃~+75℃ |
4. Application of Mobile Ad Hoc networking
Fast network access,automatic multi-hop relay,can provide multimedia communication services such as voice group call, video backhaul, and relay transmission for individual soldiers, tactical teams, and tactical police dogs, so as to achieve efficient collaboration.
5. Accessories of Mobile Ad Hoc networking
1 X of Handheld Wireless IP ad hoc Radio Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Hand microphone
1 X Network port air plug
1 X Charger
1 X Guarantee card
6. FAQ
Q1. Can I get a sample order for Mobile Ad Hoc networking?
A1: Yes, we welcome our customer to place the sample order for test and check quality.
Q2. How about the lead time?
A2: Sample usually needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on Mobile Ad Hoc networking?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Payment term
A6: Support T/T 100% before production.
