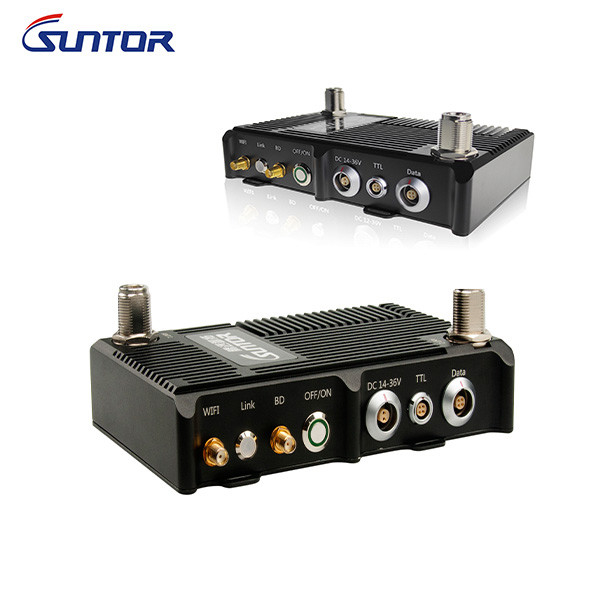

Advanced Wilreless Data Links Communications For Drones / UAV / UGV / USV

  • Advanced Wilreless Data Links Communications For Drones / UAV / UGV / USV
Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST9602US01
Minimum Order Quantity 1PCS
Price Checking with Sales
Packaging Details normal packing
Delivery Time in 12 days
Payment Terms T/T
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Frequency 1.4GHz Bandwidth 5/10/20 MHz
RF Power 2W/4W Video Input IP Network And WIFI
LOS 10KM NLOS 300-1000m
Application UAV,UAS,UGVUSV Etc Interface Ethernet Port
High Light

UGV USV Wilreless Data Links

,

UAV UGV Wilreless Data Links

,

1.4GHz Mesh Network radio
Leave a Message
Product Description



Advanced Wilreless Data Links and Communications for drones,UAV,UGV,USV



1. Quick detail Of Wireless Data Links for drones,UAV,UGV,USV



   1.1 Typical Working frequency: 1.4GHZ

   1.2 Bandwidth: 2/5/10/20MHz

   1.3 Transmitting powe: 2W

   1.4 Power supply: DC15-36V

   1.5 Transmission Rate: 90Mbps

   1.6 NLOS distance: 300-1000m

   1.7 LOS distance: over 10KM

   1.8 Weight: 660g(include the battery)

   1.9 Safe/Encryption: AES128/AES256





2. Description of Wireless Data Links for drones,UAV,UGV,USV



    Unmanned System Mesh Network radio,with small size, light weight, easy to install,



    The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.



    The transmission distance can reach more than 10km in the open environment on the ground, 300-1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.







3. Specification of Wireless Data Links for drones,UAV,UGV,USV



System Parameter
Operating frequency 1428~1448MHz
Bandwidth 5/10/20MHz,Flexible and configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacity Peak rate 90Mbps@20MHz
RF Transmitted power 2W
Receive Sensitivity -97dBm@1MHz
Video input Support IP network video input and WIFI video access(HDMI/AV need to be customized)
Networking function Networking capable ≥52 nodes
Networking hops ＞10 hops
Access time 5s after start up of the system
Network topology Centerless network, star network, chain network, mesh network, etc
Encryption mode DES (default) AES128 / AES256 (Optional)
Power supply mold DC 15-36V supply
Power Consumption ≤30W
Equipment interface
Antenna interface N type×2
GPS interface SMA surface
WIFI interface SMA surface
Ethernet interface Aviation interface
Physical indicators
Dimension ≤163×113×54mm
Equipment Weight ≤660g
Protection degree IP65
Working temperature -30℃～+65℃







4. Interface of Wireless Data Links for drones,UAV,UGV,USV
Advanced Wilreless Data Links Communications For Drones / UAV / UGV / USV 0

5. Application of Wireless Data Links for drones,UAV,UGV,USV

    Suitable for UVA, unmanned vehicles, unmanned boats, robots, and other application scenarios with lightweight networking requirements,fast network access, automatic multi-hop relay, can quickly form an interconnected three-dimensional network with handheld individual soldier system, vehicle-mounted system and surrounding base station networking equipment to achieve efficient collaboration

    It can provide wireless broadband communication as soon as possible for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" tasks.

    Our unmanned system radio is special for UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles) and other robotic platforms for the Government and enterprise sectors.



6. Accessories of Wireless Data Links for drones,UAV,UGV,USV

1 X Unmanned System Radio Host X1
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Network port air plug
1 X Serial Port air plug
1 X Power cable


7. FAQ


Q1. Can I have a sample order for wireless data Links?

A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.

    Customized one will based on the requirements and quantity.



Q3. Do you have any MOQ limit for Unmanned System Radio?

A3: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. Is it OK to print my logo on COFDM Transmitter product?

A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
