Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: MB33
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: contact us
Packaging Details: normal packing or base on your requirements
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 1000SET/DAY
Operating Frequency: |
1428-1448MHz |
Bandwidth: |
5/10/20MHz |
RF Transmitted Power: |
2W |
NLOS Distance: |
300-500m |
Encryption Mode: |
AES128/AES256 |
Power Supply: |
DC25.2V Removable Battery |
Receive Sensitivity: |
-97dBm@1MHz |
Support: |
IP Network,WIFI Access And HDMI |
Operating Frequency: |
1428-1448MHz |
Bandwidth: |
5/10/20MHz |
RF Transmitted Power: |
2W |
NLOS Distance: |
300-500m |
Encryption Mode: |
AES128/AES256 |
Power Supply: |
DC25.2V Removable Battery |
Receive Sensitivity: |
-97dBm@1MHz |
Support: |
IP Network,WIFI Access And HDMI |
MB33 Backpack Mesh Radio Specifications-v1.0_compr...

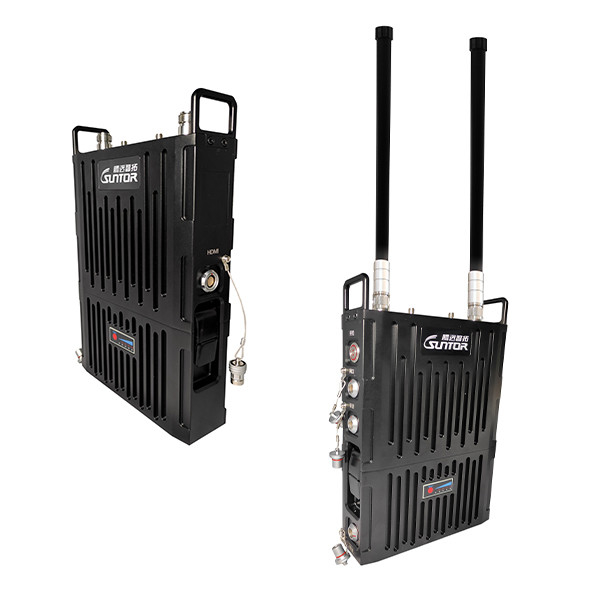

1.Quick detail Of Self Managed IP Mesh Netwoking Radio
1.1 Typical Working frequency: 1428-1438MHz
1.2 Bandwidth: 1/2/5/10/20MHz
1.3 Rugged banckpack (w/ twist-lock battery connector)
1.4 Power supply: removable battery DC25.2V
1.5 Transmission Rate: 90Mbps
1.6 NLOS distance: 300-500M
1.7 Size: 275mmX198mmX52mm(include the battery)
1.8 Interface input: IP+WIFI(HDMI/AV can be customized)
2. Description of Self Managed IP Mesh Netwoking Radio
Individual soldier mesh network transmission device,with small size, light weight, equipped with high-capacity removable batteries, easy to carry on the back of individual soldiers, fully liberating hands.
With Beidou positioning function, but also support WiFi coverage, can cooperate with wifi function intelligent terminal for various communications. The system adopts co-frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
The transmission distance can reach more than 10km in the open environment on the ground, 300~1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.
3. Specification of Self Managed IP Mesh Netwoking Radio
| Equipment interface | |
| Antenna interface | N-K×2 |
| GPS interface | SMA-K |
| WIFI interface | SMA-K |
| Ethernet interface | Aviation interface,Support 100M network interface |
| Audio interface | Aviation interface,Support hand microphone or earphone |
| HDMI interface | Aviation interface,support HDMI input |
| System Parameter | ||
| Operating frequency | 1428~1448MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 90Mbps@20MHz | |
| RF Transmitted power | 2W | |
| Receive Sensitivity | -97dBm@1MHz | |
| Video input | Support IP network video input , WIFI video access and HDMI video input | |
| Video input | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops | |
| Access time | 5s after start up of the system | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | AES128/AES256 | |
| Power supply mold | Allocate DC 25.2V removable lithium battery | |
| Power Consumption | ≤40W | |
| Physical indicators | |
| Dimension | ≤275mm × 198mm ×52mm(include battery) |
| Equipment Weight | ≤3kg(include battery) |
| Protection degree | IP66 |
| Working temperature | -30℃～+65℃ |
-----Transparent transmission of IP date
-----Support two-way intercom
-----Centerless Self-organizing mess network,automatic link selection,flexible networking mode,easy to use
-----Multi hop to expand coverage and distance
-----Long transmission distance
-----Strong anti-interference
-----Good diffraction
-----Safe and stable
-----Low system latency 30ms
5. Application of Self Managed IP Mesh Netwoking Radio
Solider manpack system Radio can provide wireless broadband communication as soon as possible for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" tasks.
6. Accessories of Self Managed IP Mesh Netwoking Radio
1 X Hand microphone
1 X Network port air plug
1 X TTL port air plug
1 X Power supply air plug
1 X Charger
1 X Packing bag
1 X of Backpack ad hoc Radio Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
7.RFQ
Q1. Can I have a sample order for Self Managed IP Mesh Netwoking Radio?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A2: Sample needs 5-7 days, mass production time needs 1-2 weeks,will also based on the products your need.
Q3. How about the MOQ?
A3: 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A5: We usually ship by DHL, UPS, FedEx or TNT.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A5: Yes.We can do this.
Q6. Do you support customized service?
A6: Will based on your requirements,just contact us.
