Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: MF43
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Checking with us
Packaging Details: usual packing or based on customer's requirements
Delivery Time: 12-20 days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Operating Frequency: |
1428～1448MHz |
Band Width: |
1/2/5/10/20MHz |
RF Transmitted Power: |
10W |
Power Supply Mold: |
DC 24-36V Supply |
Size: |
340*240*135mm |
Weight: |
6.5kg |
NLOS Distance: |
1-5KM |
LOS Distance: |
Over 20KM |
Operating Frequency: |
1428～1448MHz |
Band Width: |
1/2/5/10/20MHz |
RF Transmitted Power: |
10W |
Power Supply Mold: |
DC 24-36V Supply |
Size: |
340*240*135mm |
Weight: |
6.5kg |
NLOS Distance: |
1-5KM |
LOS Distance: |
Over 20KM |

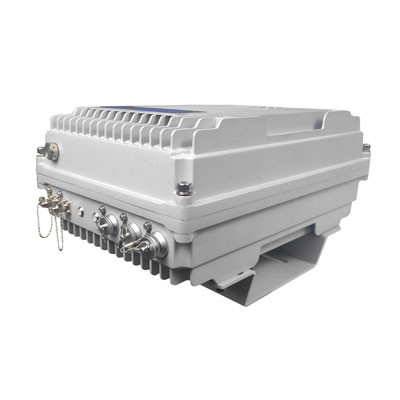

MF43S IP66 Rugged Self-healing MANET Network for Vehicle Tactical Device
MF43 Fixed Mesh Base Station Specifications-v1.0_c...
1. Quick detail Of Rugged MANET Network
-----Typical Working frequency: 1.4GHZ
-----Transmitting power: 10 W
-----Power supply: DC220V adapter to DC24V
-----Transmission Rate: 90Mbps
-----Bandwidth: 2/5/10MHz
-----Encryption: AES128/AES256
-----Modulation: COFDM
-----Interface input: IP+WIFI(HDMI/AV can be customized)
-----Receive sensitivity:-97dbm
2. Description of Rugged MANET Network
Base Station Mesh Network radio,It can be fixedly installed on poles, walls and brackets. It is mainly deployed in outdoor fixed points and ship-borne mobile points.
All nodes do not need a central gateway in line of sight or in non line of sight, and all nodes have equal status that is it can be used as a terminal node,a relay node or a central node,without relying on wired communication lines, and can quickly establish a wireless communication network.
3. Specification of Rugged MANET Network
System Parameter
| Operating frequency | 1428～1448MHz | |
| Bandwidth | 5.0/10.0/20.0MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 52Mbps,The highest optional version can be 100Mbps | |
| RF Transmitted power | 10W | |
| Receive Sensitivity | -100dBm@5MHz | |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) | |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | ＞10 hops | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | DES (default) AES128 / AES256 (Optional) | |
| Power supply mold | DC 24-36V supply | |
| Power Consumption | ≤90W | |
Physical indicators
| Dimension | ≤340×240×135mm |
| Equipment Weight | ≤6.5kg |
| Protection degree | IP66 |
| Working temperature | -40℃～+65℃ |
4. Application of Rugged MANET Network
Base Station is especially suitable for applications such as long-distance coverage link communication, information aggregation and backhaul, regional coverage support, commanding heights enhanced coverage, and relay transmission nodes. It can play a strong advantage in emergency response, anti-terrorism and anti-riot, rescue and disaster relief, large-scale event security, temporary control and relay transmission.
5.Feature of Rugged MANET Network
· 1.Centerless self-organizing
---Node status is equal, that is, it can be used as terminal node, relay node or central node
2. Any organization networking
---Nodes automatically identify and select the optimal route for bandwidth data
3. Security and confidentiality
---Layer-by-layer encryption through operating frequency, carrier bandwidth, scrambling code, etc., supports AES128/256
4. Anti-interference, anti-destruction
---Using COFDM, MIMO, AQR and other technologies to improve data bandwidth and anti-interference performance
5. Multi-node flexible networking
---According to the channel quality, rate, bit error and other indicators, automatically calculate the link routing, flexible networking
6. Accessories of Rugged MANET Network
1 X Hand microphone
1 X Network port air plug
1 X Mounting brackets
1 X Charger
2 X Feeder
1 X Guarantee card
1 X of Mesh Radio Base Station Radio Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Power cable
7. FAQ of Rugged MANET Network
Q1. Can I have a sample order for Rugged MANET Network?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A2: Sample needs 5-7 days, mass production time needs 1-2 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A3: We usually ship by DHL, UPS, FedEx or TNT.
Q4. How about the payment term?
A4. Our payment term is by T/T 100% payment before production
Q5. Would you support customized?
A5. We support customized,it will based on your requirement,pls just checking with us.
