Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: MH33
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: Check with sales person
Packaging Details: normal packaging or according to your requirements
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000set
Working Frequency: |
1438 MHz |
Bandwidth: |
5/10/20MHz，Flexible And Configurable |
Transmission System: |
COFDM |
RF Transmitted Power: |
2W |
Receive Sensitivity: |
-97dBm@1MHz |
NLOS Distance: |
300-500m |
Encryption Mode: |
DES (default） AES128 / AES256 (Optional） |
Ground To Air: |
30KM |
Working Frequency: |
1438 MHz |
Bandwidth: |
5/10/20MHz，Flexible And Configurable |
Transmission System: |
COFDM |
RF Transmitted Power: |
2W |
Receive Sensitivity: |
-97dBm@1MHz |
NLOS Distance: |
300-500m |
Encryption Mode: |
DES (default） AES128 / AES256 (Optional） |
Ground To Air: |
30KM |
MH33 Handheld Mesh Radio Specifications-v1.0_compr...

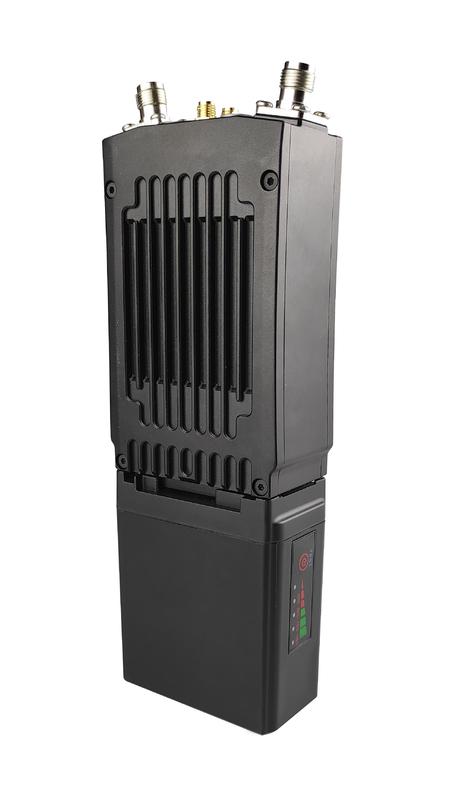

1.Quick detail Of Handheld IP Mesh Radio
2. Description of Handheld IP Mesh Radio
Handheld mesh(ad hoc) radio is a 2×2 MIMO radio, delivering best-in-class performance and efficiency in a miniature package. It is ideal for use in portable and embedded applications where size, weight, power or cost are key.
With mall size,light weight,equipped with removable lithium battery,can be held in hand,but also can be placed on the shoulder and back of a individual solider to carry.
Fast network access,automatic multi-hop relay,can provide multimedia communication services such as voice group call, video backhaul, and relay transmission for individual soldiers, tactical teams, and tactical police dogs, so as to achieve efficient collaboration.
3. Specification of Handheld IP Mesh Radio
| System Parameter | ||
| Operating frequency | 1428~1448MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 90Mbps@20MHz | |
| RF Transmitted power | 2W | |
| Receive Sensitivity | -97dBm@1MHz | |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) | |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops | |
| Access time | 5s after start up of the system | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | DES (default) AES128 / AES256 (Optional) | |
| Power supply mold | Allocate DC 16.8V removable lithium battery | |
| Power Consumption | ≤30W | |
| Equipment interface | |
| Antenna interface | TNC type×2 |
| GPS interface | SMA interface |
| WIFI interface | SMA interface |
| Ethernet interface | Aviation interface |
| Physical indicators | |
| Dimension | ≤240×90*35mm(include battery) |
| Equipment Weight | About 900g(include battery) |
| Protection degree | IP65 |
| Operating temperature | -30℃～+65℃ |
4. Feature of Handheld IP Mesh Radio
4.1 Centerless self-organizing
4.2 Any organization networking
4.3 Security and confidentiality
4.4 Anti-interference, anti-destruction
4.5 Multi-node flexible networking
5. Application of Handheld IP Mesh Radio
Fast network access,automatic multi-hop relay,can provide multimedia communication services such as voice group call, video backhaul, and relay transmission for individual soldiers, tactical teams, and tactical police dogs, so as to achieve efficient collaboration.
6. Accessories of Handheld IP Mesh Radio
1 X of Handheld Wireless IP ad hoc Radio Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Hand microphone
1 X Network port air plug
1 X Charger
1 X Guarantee card
7. FAQ
Q1. Can I get a sample order for Handheld IP Mesh Radio?
A1: Yes, we welcome our customer to place the sample order for test and check quality.
Q2. How about the lead time?
A2: Sample usually needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on Handheld Wireless IP ad hoc Radio?
A5: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Payment term
A6: Support T/T 100% before production.
