Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: MB33
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: contact us
Packaging Details: normal packing or base on your requirements
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 1000SET/DAY
Operating Frequency: |
1438MHz |
Bandwidth: |
1/2/5/20MHz |
LOS Transmission Distance: |
>10KM |
RF Transmitted Power: |
2W |
Video Input: |
IP Network/WIFI Video/HDMI Video Input |
Encryption Mode: |
AES128/AES256 |
Power Supply: |
DC25.2V Removable Battery |
Application: |
Emergency Response, Anti-terrorism And Anti-riot, Covert Reconnaissance, Special Operations, Rescue And Disaster Relief, Daily Patrols |
Operating Frequency: |
1438MHz |
Bandwidth: |
1/2/5/20MHz |
LOS Transmission Distance: |
>10KM |
RF Transmitted Power: |
2W |
Video Input: |
IP Network/WIFI Video/HDMI Video Input |
Encryption Mode: |
AES128/AES256 |
Power Supply: |
DC25.2V Removable Battery |
Application: |
Emergency Response, Anti-terrorism And Anti-riot, Covert Reconnaissance, Special Operations, Rescue And Disaster Relief, Daily Patrols |
MB33 Backpack Mesh Radio Specifications-v1.0_compr...

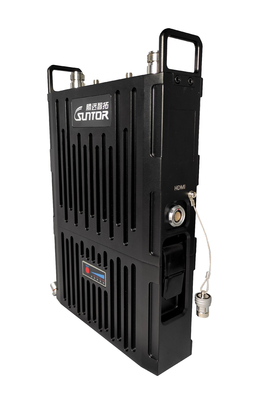

1.Quick detail Of Body-Worn IP Mesh Video Transmitter
1.1 Typical Working frequency: 1428-1438MHz
1.2 Bandwidth: 1/2/5/10/20MHz
1.3 Rugged banckpack (w/ twist-lock battery connector)
1.4 Power supply: removable battery DC16.8V
1.5 Transmission Rate: 90Mbps
1.6 NLOS distance: 500-1000M
1.7 Weight:800g(include the battery)
1.8 Size: 214*71*35.8mm(include the battery)
1.9 Encryption: AES128/AES256
2.0 Receive sensitivity:-97dbm
2. Description of Body-Worn IP Mesh Video Transmitter
Individual soldier mesh network transmission device,with small size, light weight, equipped with high-capacity removable batteries, easy to carry on the back of individual soldiers, fully liberating hands.
Fast network access, automatic multi-hop relay, can provide voice group call, video backhaul, relay transmission and other multimedia communication services for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration.
The transmission distance can reach more than 10km in the open environment on the ground, 300~1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.
3. Specification of Body-Worn IP Mesh Video Transmitter
| System Parameter | ||
| Operating frequency | 1428~1448MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 90Mbps@20MHz | |
| RF Transmitted power | 2W | |
| Receive Sensitivity | -97dBm@1MHz | |
| Video input | Support IP network video input , WIFI video access and HDMI video input | |
| Video input | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops | |
| Access time | 5s after start up of the system | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | AES128/AES256 | |
| Power supply mold | Allocate DC 25.2V removable lithium battery | |
| Power Consumption | ≤40W | |
| Equipment interface | |
| Antenna interface | N-K×2 |
| GPS interface | SMA-K |
| WIFI interface | SMA-K |
| Ethernet interface | Aviation interface,Support 100M network interface |
| Audio interface | Aviation interface,Support hand microphone or earphone |
| HDMI interface | Aviation interface,support HDMI input |
| Physical indicators | |
| Dimension | ≤275mm × 198mm ×52mm(include battery) |
| Equipment Weight | ≤3kg(include battery) |
| Protection degree | IP66 |
| Working temperature | -30℃～+65℃ |
4.1 Centerless self-organizing
Node status is equal, that is, it can be used as terminal node, relay node or central node
4.2 Any organization networking
Nodes automatically identify and select the optimal route for bandwidth data
4.3 Security and confidentiality
Layer-by-layer encryption through operating frequency, carrier bandwidth, scrambling code, etc., supports AES128/256
4.4 Anti-interference, anti-destruction
Using COFDM, MIMO, AQR and other technologies to improve data bandwidth and anti-interference performance
4.5 Multi-node flexible networking
According to the channel quality, rate, bit error and other indicators, automatically calculate the link routing, flexible networking
5. Application of Body-Worn IP Mesh Video Transmitter
It can provide wireless broadband communication as soon as possible for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" tasks.
6. Interface of Body-Worn IP Mesh Video Transmitter
7. Accessories of Body-Worn IP Mesh Video Transmitter
1 X of Backpack ad hoc Radio Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Hand microphone
1 X Network port air plug
1 X TTL port air plug
1 X Power supply air plug
1 X Charger
1 X Packing bag
8.RFQ
Q1. Can I have a sample order for Body-Worn IP Mesh Video Transmitter?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for Unmanned System Radio?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
