Product Details
Place of Origin: China
Brand Name: SUNTOR
Certification: CE
Model Number: PB33
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Contact the sales
Packaging Details: Packing box
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Woking Frequency: |
1438MHz |
RF Transmit Power: |
2W |
NLOS Distance: |
300-500M |
LOS Distance: |
10-20KM |
Secure: |
AES256 |
Power: |
DC 14.8V |
Size: |
52.5*43.7*21.3mm |
Weight: |
14.8KG(include The Battery) |
Woking Frequency: |
1438MHz |
RF Transmit Power: |
2W |
NLOS Distance: |
300-500M |
LOS Distance: |
10-20KM |
Secure: |
AES256 |
Power: |
DC 14.8V |
Size: |
52.5*43.7*21.3mm |
Weight: |
14.8KG(include The Battery) |

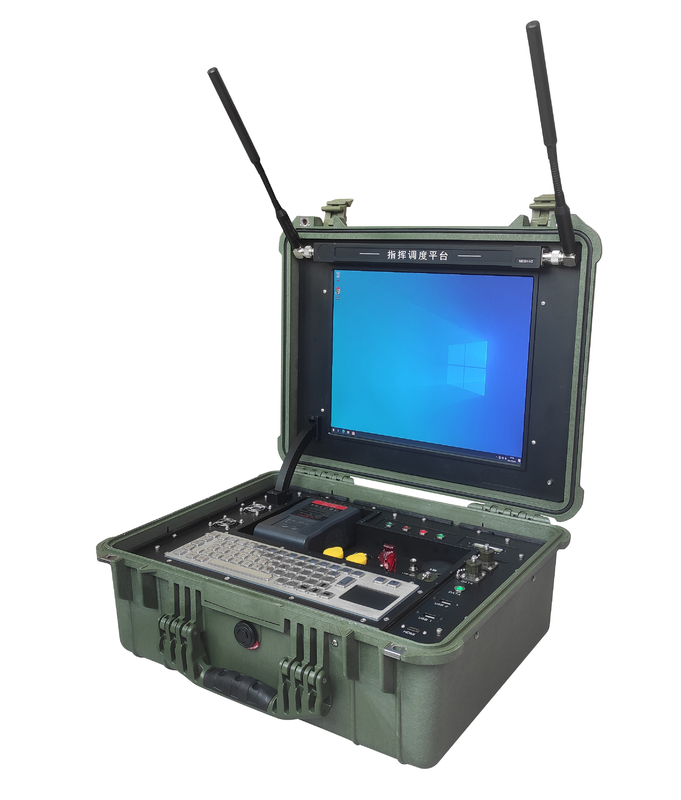

PB33 New Industrial Ground Control Station Portable IP MESH Command Station
PB33 Portable Command & Dispatch Platform Box Spec...
1. Quick details of IP MESH Command Station
--- Typical Working frequency: 1438MHz
--- Bandwidth: 1/2/5/10/20 MHz
--- Transmitting power: 2 W/33dbm
--- Power supply: removable battery DC14.8V
--- Transmission Rate: 80Mbps
--- NLOS distance: 300-500m
--- LOS distance:10-20KM
--- Support for 52 nodes
--- Multiple talk groups
--- Higher throughput
--- Lightning-Fast data rates
2. Description of IP MESH Command Station
Intelligent MESH communication system command box (hereinafter omitted as command box) is an intelligent, portable and multi-functional emergency command and dispatch system independently developed by SUNTOR ELECTRONICS CO., LTD.
The device has the advantages of flexible networking and convenient operation,widely used in various emergencies.
Quickly establish a temporary command center for various emergencies. achieve on-site command and dispatch, remote command and dispatch, video conference, private network access, public network access and other functions, providing a strong guarantee for emergency command and information reporting.
3. Specification of IP MESH Command Station
| Host characteristics | |
| Operating System | WIN10/64 bit |
| CPU | Intel I7 CPU |
| Display screen | 17inch HD bright screen |
| Memory | 16G |
| Storage Mode | 240G SSD |
| Operating Mode | Embedded mouse and keyboard |
| Transport characteristics | |
| Frequency range | 1438MHz(200MHz-1.5G can be customized) |
| Bandwidth | 5M/10M/20M (adjustable) |
| Transmit power | Max 33dBm |
| Constellation map modulation | BPSK/QPSK/16-QAM(adaptive) |
| Forward error correction code | 1/2,2/3,3/4,5/6(optional) |
| Digital Sensitivity | Max-97dBm@1MHz |
| Transmission rate | Peak rate up to 90Mbps |
| Networking capacity | The number of chain hops in the ad hoc network is more than 9 hops, and the number of nodes in the ad hoc network is not less than 52 |
| Data characteristics | |
| RF interface | N*2,SMA*1 |
| Video display | 17inch HD bright screen |
| Cable interface | RJ45 waterproof interface *2 |
| Intercom interface | 6 pin aviation plug |
| Data interface | 3 pin aviation plug(backup) |
| Power interface | 2 pin aviation plug |
| 4G function | All netcom |
| Signal indicator | 5 signal indicators |
| Switch | Toggle self-locking switch |
| Encryption mode | DES (default)AES128 / AES256 (optional) |
| Electrical Characteristics | |
| Operating Voltage | DC 14.8V |
| Operating Voltage | ≤ 7A |
| Power consumption | The average power consumption of the whole machine 60W |
| Battery capacity | 10Ah |
| Physical Characteristic | |
| Operating temperature | -20~+55℃ |
| Storage temperature | -50℃~ +70℃ |
| Dimensions | 52.5*43.7*21.3cm |
| Device weight | 14.8kg(include battery) |
4. Feature of IP MESH Command Station
· Centerless Self-organizing mess network,automatic link selection,flexible networking mode,easy to use
· Multi hop to expand coverage and distance
· Long transmission distance
· Strong anti-interference
· Good diffraction
· Safe and stable
· Transparent transmission of IP date
· Support two-way intercom
· External power supply, and built-in battery power supply, to ensure power supply for about 3 hours
· It does not rely on base stations to form a centerless wireless broadband network efficiently and quickly
5. Application of IP MESH Command Station
Widely used in various emergencies such as power emergency repair, unmanned remote control, public security emergency control, maritime reconnaissance, fire emergency rescue, safety production supervision, etc
6. Interface of IP MESH Command Station
7. Accessories of IP MESH Command Station
1 X of Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Hand microphone
1 X Power adapter cable
1 X Battery
8. Our Services
1. 16 years experience in video audio transmission solutions
2. Excellent pre-sale and after-sale Technical team
3. High quality with competitive price
4. Fast feedback and fast delivery
5. OEM supported
9. Can delivery all around the world
10. Strong development department also be you backing
9. FAQ
Q1: Are you a factory or trading company?
-----We are a factory,Our company mainly sells Wireless Video Transmitter.....
Q2: Do you accept sample order?
------Yes, we can accept sample order.
Q3: What's your warranty policy?
-----We offer 1 year warranty. For goods defected not by personal seasons, we will replace for it.
Q4: What's your payment terms?
------We accept T/T in advance,100% payment before production
Q5:What's the lead time for mass order?
------Normally, it takes about 10-15 days, depends on the order quantity or customers requirements.
