Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: ST9300-N-C
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiate
Packaging Details: Usual packaging or according to customer requirements
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000SET/month
Operating Frequency: |
1428~1448MHz |
Bandwidth: |
5/10/20MHz，Flexible And Configurable |
Transmission System: |
Transmission System |
Power Supply: |
AC220 |
RF Transmitted Power: |
10W |
Standards Protocols: |
AES128 / AES256 |
Antenna Interface: |
N Type*2 |
GPS Interface: |
SMA Interface |
Weight: |
Around 6.4KG |
Operating Frequency: |
1428~1448MHz |
Bandwidth: |
5/10/20MHz，Flexible And Configurable |
Transmission System: |
Transmission System |
Power Supply: |
AC220 |
RF Transmitted Power: |
10W |
Standards Protocols: |
AES128 / AES256 |
Antenna Interface: |
N Type*2 |
GPS Interface: |
SMA Interface |
Weight: |
Around 6.4KG |
1.Product Description

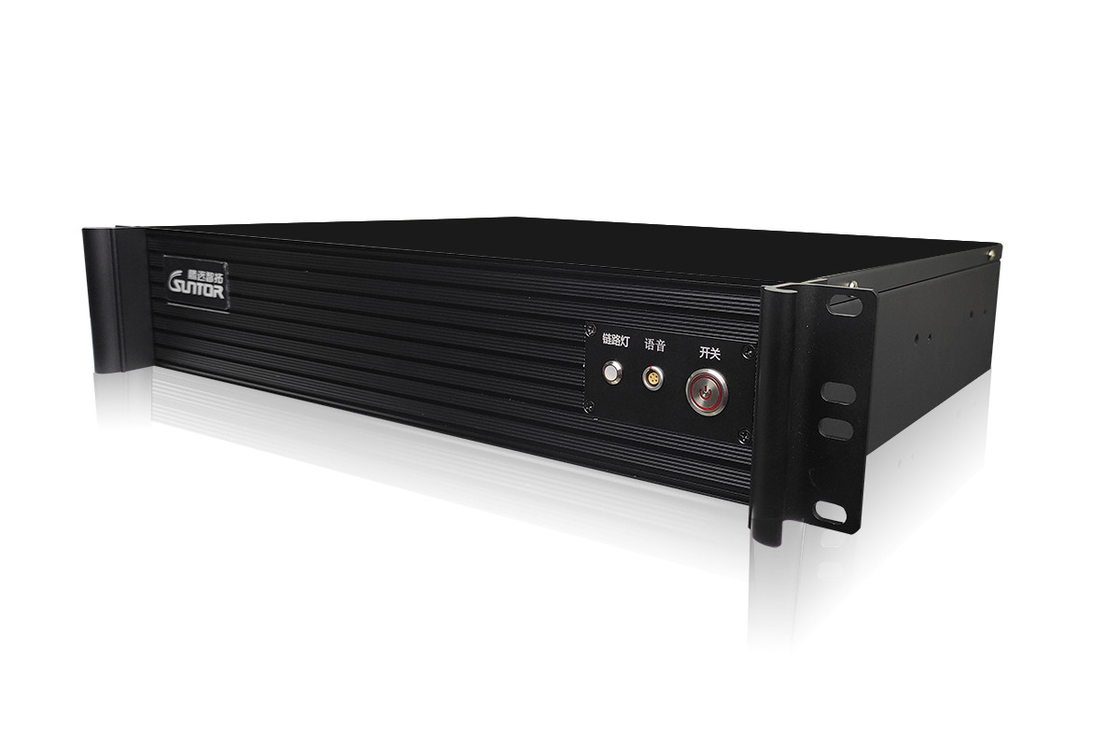

Vehicle Mesh Network radio,standard 2U rack structure for vehicle-mounted systems, mainly for modified special communication command vehicles, rack-mounted installation in large mobile command vehicles.
The device has the function of mesh network communication, which can form a communication network with its own fleet, as well as interconnect with individual soldier device, handheld device, air carriers (helicopter or UAV) and surrounding base stations, and quickly establish chain communication. all nodes do not need a central gateway in line of sight or in non line of sight, and all nodes have equal status that is it can be used as a terminal node,a relay node or a central node,without relying on wired communication lines, and can quickly establish a wireless communication network.
The transmission distance can reach more than 20km in the open environment on the ground, 1-5km in the blocking environment (depending on the blocking environment), and more than 50km from air to ground.
2.Product Feather
3.Product Specification
| System Parameter | ||
| Operating frequency | 1300~1500MHz | |
| bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 52Mbps@20MHz,The highest optional version can be 100Mbps | |
| RF Transmitted power | 10W | |
| Receive Sensitivity | -100dBm@5MHz | |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need to be customized) | |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | ＞10 hops | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | DES (default) AES128 / AES256 (Optional) | |
| Power supply mold | AC220V supply | |
| Power Consumption | ≤90W | |
| Equipment interface | ||
| Antenna interface | N type×2 | |
| GPS interface | SMA interface | |
| WIFI interface | SMA interface | |
| Ethernet interface | Aviation interface | |
| Physical indicators | ||
| Dimension | ≤485×385×90mm | |
| Equipment Weight | ≤6.4kg | |
| Protection degree | IP65 | |
| Working temperature |
-40℃～+65℃
|
|
4.Interface Description
5.Application
It is especially suitable for the application of central communication command vehicles and mobile vehicle marshalling, and can play a strong advantage in emergency response, anti-terrorism and anti-riot, emergency rescue and disaster relief, large-scale event support, temporary control and relay transmission.
6. FAQ
Q1. Can I have a sample order for Unmanned System Radio?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for Unmanned System Radio?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
