Product Details
Place of Origin: CHINA
Brand Name: SUNTOR
Model Number: ST9602MD
Payment & Shipping Terms
Minimum Order Quantity: 1PAIR
Packaging Details: CARTON
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000set/month
RF Power: |
2Watts/0.2W(Wifi) |
Wired Network: |
IP Address Configurable, Subnet Mask Configurable |
Duplex Mode: |
TDD |
Diversity Mode: |
Transmitting And Receiving Diversity |
Upstream And Downstream Bandwidth: |
Two-way Bandwidth Up To 80Mbps, 40Mbps(Wifi) |
Ethernet: |
1*100Mbps Ethernet Interface |
Key: |
1*Reset Button |
Battery: |
12V/21Ah |
RF Power: |
2Watts/0.2W(Wifi) |
Wired Network: |
IP Address Configurable, Subnet Mask Configurable |
Duplex Mode: |
TDD |
Diversity Mode: |
Transmitting And Receiving Diversity |
Upstream And Downstream Bandwidth: |
Two-way Bandwidth Up To 80Mbps, 40Mbps(Wifi) |
Ethernet: |
1*100Mbps Ethernet Interface |
Key: |
1*Reset Button |
Battery: |
12V/21Ah |

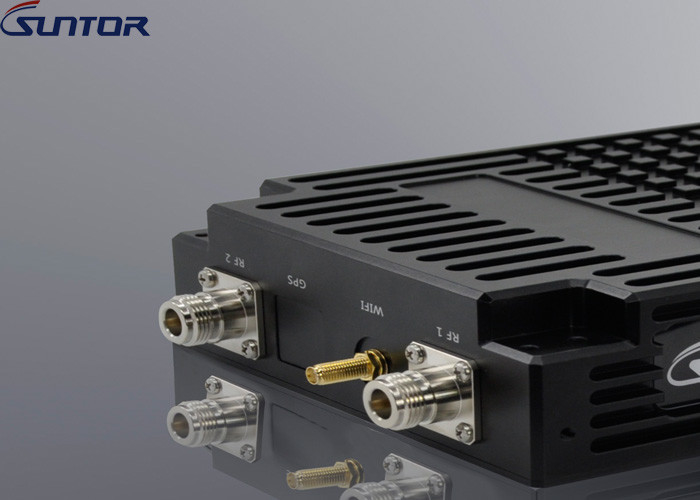

Software Defined Radios (SDRs) and IP Mesh Radios for UAVs, UGVs and Robotics NLOS Transmitter and receiver
Datasheet
Usermanual
Features:
| Antenna | 2*N type Antenna Interface | Wifi | Working Frequency Adjustable |
| 1*Wifi SMA Antenna Interface | RF Power Adjustable | ||
| 1*GPS SMA Antenna Interface | Support AP mode | ||
| Ethernet | 1*100Mbps Ethernet Interface | ESSID Configurable | |
| Serial Interface | Bit rate upto 115200bps (9600-115200bps Adjustable) | ||
| Indicator | 1*System States Indicator Light | Supports adaptive rate mode | |
| 1*Ethernet Status Indicator Light | Support WMM/802.11e QoS | ||
| 1*Wifi States Indicator Light | Support Distance Optimization | ||
| 3*Network Signal Strength Indicator Light | Support RTS/CTS Setting | ||
| Key | 1*Reset Button | Support MAC address filtering | |
| Power | DC9-28V | Connection Status Display | |
| Power Consumption |
Working Voltage: DC12V |
WPA/WPA2/WEP Encryption | |
| Battery | 12V/21Ah | Hidden ESSID | |
| Battery Endurance | 4hours(full charge) | Support Network transparent transmission GPS original positioning data | |
| Dimension | 220mm*155mm*52mm | Support web page management | |
| Temperature | Storage: -30℃~+90℃ | Management | Support SSH security management |
| Working: -20℃~+70℃ | Import/export configuration information | ||
| Waterproof | IP66 | Restore factory configuration | |
| Serial Port | 1*Serial Port(On request) | Update firmware online |
