Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: CD11HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Data Rate: |
3 ~5 Mbps |
RF Power: |
1W |
Video Input: |
Mini HDMI |
Compress Format: |
H.264/H.265 |
Start-up Time: |
≤30s |
Power Supply: |
DC17 ~ 18V Power Supply |
Data Rate: |
3 ~5 Mbps |
RF Power: |
1W |
Video Input: |
Mini HDMI |
Compress Format: |
H.264/H.265 |
Start-up Time: |
≤30s |
Power Supply: |
DC17 ~ 18V Power Supply |

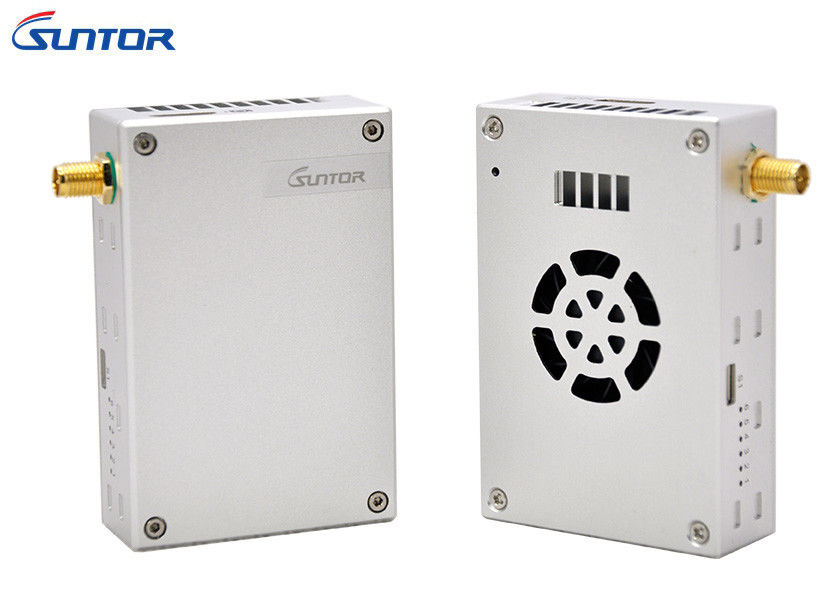

Ethernet to RJ45 Connector Interface on CD11HPT COFDM Transmitter for Data Transmission
CD11HPT Drone Video Transmitter & Receiver Specifi...
1. Intorduce
CD11HPT is special designed for high speed uav data transmission in movement. The transmit rate up to 2~8Mbps, which can meet high quality video, audio and data transmission.
2. Features
3. Parameters
| Wireless | |
| Frequency Range | 2402 ~ 2482MHz |
| Bandwidth | 4MHz/8MHz |
| Transmission System | COFDM |
| Error Detection | LDPC FEC, Video H.264/265 |
| Super Error Correction | |
| Data Rate | 3 ~ 5 Mbps |
| RF Power | 1W |
| Receive Sensitivity | -100dBm@4MHz/-95dBm@8MHz |
| System | |
| Start-up Time | ≤30s |
| Transmission | Video ＋ Duplex Control Data |
| Data Protocol | SBUS/TTL/MAVLINK Telemetry |
| Power | 10W(Transmitter) 6W(Receiver) |
| Power Supply | DC7 ~ 18V Power Supply |
| Security | AES128 Encryption |
| Interface | |
| RF Antenna | SMA ×1 |
| HDMI Interface | Mini HDMI(HDMI Type C) ×1 |
| Serial Port Interface | TTL Serial to USB Connector ×1 |
| Ethernet Interface | Ethernet to RJ45 Connector ×1 |
| Power Input | 2Pin to DC Jack Connector ×1 |
| Video | |
| Video Input | Mini HDMI |
| Resolution | Ultra HD 1080p/60fps |
| Compress Format | H.264/H.265 |
| Color Space | 4:2:0(Default), 4:2:2/4:4:4(Op) |
| Latency | 15 ~ 30ms |
| Physical | |
| Dimension | 72x47x19mm |
| Weight | 94g(Transmitter)+94g(Receiver) |
| Operating Temperature | -40℃ ~ +85℃ |
The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
