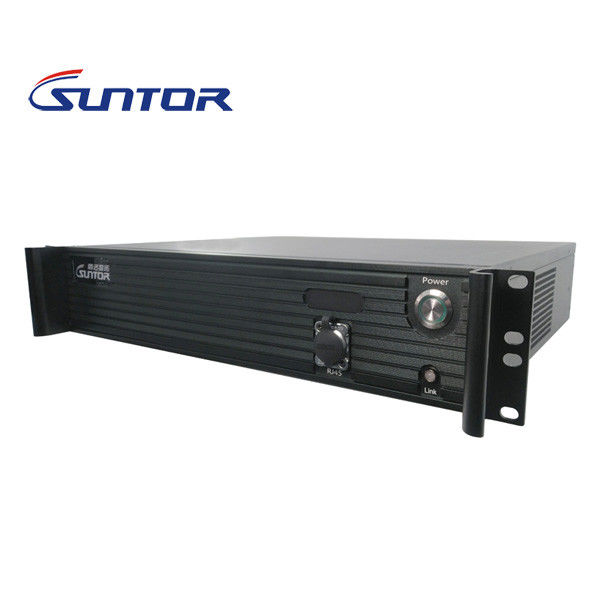

70Mbps Wireless Unmanned Car IP Mesh Network

  • 70Mbps Wireless Unmanned Car IP Mesh Network
  • 70Mbps Wireless Unmanned Car IP Mesh Network
Place of Origin Shenzhen China
Brand Name Suntor
Certification CE SGS RoHS
Model Number ST9643NC
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Aircasing
Delivery Time 15-20days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000SET/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fre Band 1427-1447M How Farrange 200-500m In NLOS
Transmitting IP Video Output Size 485x385x90mm
Latency Rate 8-20ms Value Power 1/2 Watts
Value Rate 70Mbps Encryption AES128/256
High Light

IP Mesh Network

,

UGV IP Mesh Network

,

70Mbps Wireless Mesh Network
Leave a Message
Product Description

70Mbps Wireless Unmanned Car IP Mesh Network



IP Mesh Radio Unmanned Car Wireless Mesh Network



UGV Transmission Solutions

Here download data sheet in pdf file

Specification of ST9633NC.pdf



Product Data Sheet for UGV Transmission Solutions:

Range: 1-3km NLOS in ground to ground,
40km open area in ground to ground, ＞100km in air to ground.
Frequency: Regular L Band 1.4GHz(1427.9-1447.9MHz),
Customized 512~582MHz, 570~590MHz, 1240~1300MHz
Mode: QPSK/16QAM/64QAM/BPSK



Data rate
70Mbps
RF Bandwidth: 5.0/10.0/20.0MHz
Waterproof IP65
Encrypted AES128/256
Weight 7kg
Transmisison IP/HDMI Video
Distance 1km in NLOS
Dimension 163x113x54mm

ST9633NC2 vehicle-mounted mesh networking equipment is individually designed for vehicle-mounted systems, and is particularly suitable for installation in communication command vehicles and large mobile command vehicles. It has an ad hoc network communication function, which can quickly establish a link with other vehicle-mounted vehicles, and can also be used in conjunction with other ad hoc network carriers. All nodes are in LOS or NLOS environments, using a distributed network architecture without a central ad hoc network, no central gateway is needed,
any device in the group is disconnected, and there will be all within the effective antenna coverage Corresponding devices continue to communicate to ensure that the network is not dropped, and realize real-time interaction of multimedia information such as voice, data, and images between each unit node.

The system do not have fixed center node, all part of radios can be a center node, it can adhock networking all of members radios from different locations. It applied for , robot, maritime uav, mapping drones, oil and gas, green energy inspection.If in ground to ground, the range would be 1km in NLOS.

Product Application for UGV Transmission Solutions:

, UGV, Armored Car, Defence

Tech Questions:
1. What's the frequency?
1.4G 1.4279-1.4479GHz Band
2. How about the consumption?
≤90W
3. RF power would be?
20W
4. you have HDMI version?
yes

70Mbps Wireless Unmanned Car IP Mesh Network 0
