70Mbps Drone UAV Video Transmitter 1.4GHz IP Mesh Network 8s Relink

Product Details

Place of Origin: Shenzhen China

Brand Name: Suntor

Certification: CE RoHS SGS FCC

Model Number: ST9633NS2

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negotiation

Packaging Details: Aircasing

Delivery Time: 15-20days

Payment Terms: T/T, Western Union, PayPal

Supply Ability: 1000SET/Month

Get Best Price
Contact Now
Specifications
Highlight:

1.4GHz IP Mesh Network

,

SGS IP Mesh Network

,

70Mbps Drone Mesh Network

Fre:
1.4GHz
Range:
40km Air To Ground
Video:
IP Video Input
Relink:
8s
Latency:
≤8ms
Transmit Power:
1 Watts
Rate:
70Mbps
Encryption:
AES128/256
Fre:
1.4GHz
Range:
40km Air To Ground
Video:
IP Video Input
Relink:
8s
Latency:
≤8ms
Transmit Power:
1 Watts
Rate:
70Mbps
Encryption:
AES128/256
Description
70Mbps Drone UAV Video Transmitter 1.4GHz IP Mesh Network 8s Relink

70Mbps Drone UAV Video Transmitter 1.4GHz IP Mesh Network 8s Relink



70Mbps Networking Radio IP MESH Solutions for Drone UAV Video Transmitter



DRONE mesh adhoc network

Here download data sheet in pdf file

ST9633NF Specification.pdf



Product Specifications for IP Mesh Radios Drone Video Transmitter:


Range: 200-500meters NLOS in ground to ground,

3-5km open area in ground to ground LOS, >20km in air to ground LOS.

Frequency: Regular L Band 1.4GHz(1427.9-1447.9MHz),

Customized 512~582MHz, 570~590MHz, 1240~1300MHz

Mode: BPSK/QPSK/16QAM/64QAM

Data Rate: 70Mbps

Latency: 8-20ms, Relink: 8s



SUNTOR module ST9633NF is the 40-50km range of design for Inspection Drones 1.4G frequency RF module for a video transmission system of drones.

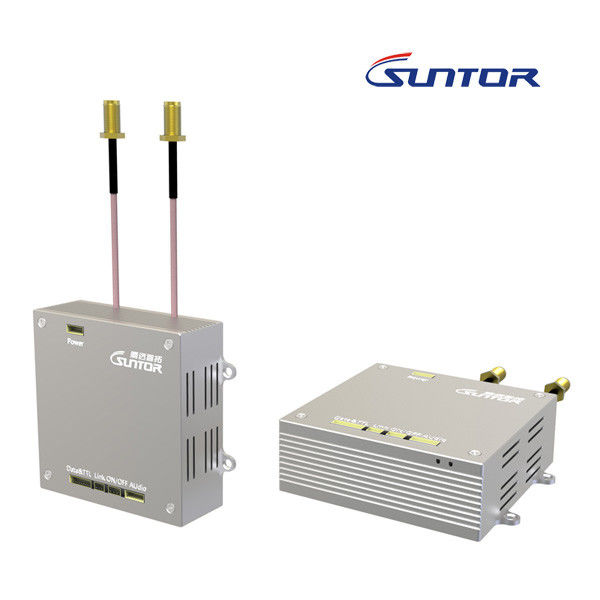

ST9633NF micro airborne mesh networking equipment, the appearance adopts CNC machining design, the equipment is small and exquisitely designed, it is specially designed for the needs of lightweight networking such as unmanned aerial vehicles, unmanned vehicles, unmanned boats, robots, etc. Mobile networking equipment. This model has the function of self-organizing network communication. In the process of actual use, ST9633NF can quickly form an interconnected three-dimensional network with handheld individual soldier systems, vehicle-mounted systems, and peripheral base station networking equipment. It adopts a ring network design without worrying about the ring.

Product Application for IP MESH Solutions:

Mapping Oil gas inspection, harsh environment,Widely used in law enforcement surceillance, mission,
Security & Emergency Response, Mining, Sea Ports, Aerial Surveillance

Product Parts List for IP Mesh Drone Radios :
1. TNC Antenna x 2pcs
2. Wifi Antenna x 1pcs
3. GPS Antenna x 1pcs
4. Ethernet Cable x 1pcs
5. Power Cable x 1pcs
6. Power Adapter x 1pcs


Technical Support:

Q1: What is mesh?

Adhoc networking mesh radio system, every node is center node. Fast communication link.

Q2: Video output type?

Ethernet ip only.

Q3: Mainly Frequency would be?

1.4G

Q4: Transmitting mode?

Mesh networking

Q5: Distance would be?

200-500meters in NLOS grount to ground, 40km from air to ground.
