1W 70mbps 50km LOS IP Mesh Network Ad-Hoc Network Solutions

  • 1W 70mbps 50km LOS IP Mesh Network Ad-Hoc Network Solutions
  • 1W 70mbps 50km LOS IP Mesh Network Ad-Hoc Network Solutions
Place of Origin Shenzhen China
Brand Name Suntor
Certification CE RoHS SGS FCC
Model Number ST9633NS2
Minimum Order Quantity 1 SET
Price negotiation
Packaging Details Aircasing
Delivery Time 3-7days
Payment Terms T/T, Western Union, PayPal
Supply Ability 1000SET/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 1.4G(1427.9-1447.9MHz) Range 30-50km LOS, 200-500meters NLOS

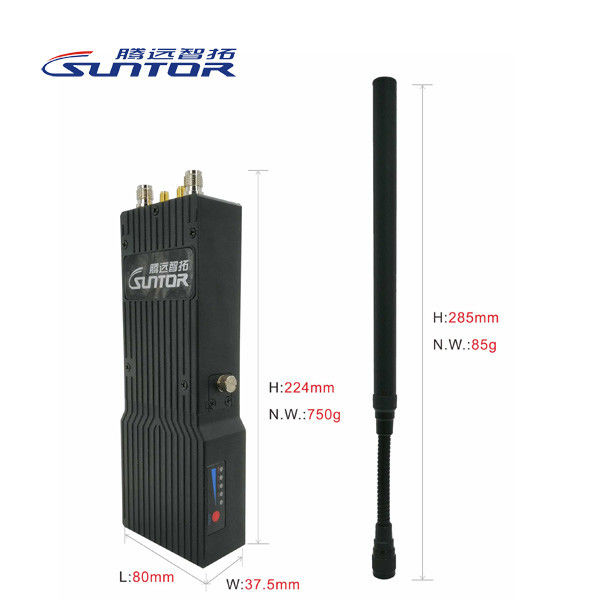

Video Ethernet IP MESH Radio Dimension 224*80*37.5mm
Latency ≤8ms RF Power 1 W
Rate 70mbps Encrypted AES128/256
High Light

50km LOS IP Mesh Network

,

1W LOS IP Mesh Network

,

70mbps IP Mesh Radio
Leave a Message
Product Description

IP MESH Radio Ad-hoc Networking Solutions for

IP MESH Ad-hoc Network Solution for Emergency Operations

Here download data sheet in pdf file

Specification of ST9633NS2.pdf

ST9633NS2 User Manual.pdf

SUNTOR module ST9633NS2 is the 30-50km Inspection Drones 1.4G UAV Video Link Drone Video Transmitter and robot and UAVs unmanned vehicles for drones manufacturer and emergency operations for government.

IP MESH Radio/COFDM IP MESH/IP MESH Network/ip mesh solution/IP Mesh Solutions for UAV/IP Mesh Solutions for UGV/IP Mesh Solutions for Robot/IP Mesh Solutions for UAS
Product Application of IP MESH Ad-hoc Network Solution Drone Video Transmitter:
1W 70mbps 50km LOS IP Mesh Network Ad-Hoc Network Solutions 0


Product Key Features of IP MESH Ad-hoc Network Solution Drone Video Transmitter:

IP MESH Network wireless drone video transmitter:


Range: 200-500meters NLOS in ground to ground,

3-5km open area in ground to ground, ＞20km in air to ground.

Frequency: Regular L Band 1.4GHz(1427.9-1447.9MHz),

Customized 512~582MHz, 570~590MHz, 1240~1300MHz

Mode: BPSK/QPSK/16QAM/64QAM

Data Rate: 70Mbps

Latency: 8-20ms, Relink: 8s

Power: 1W

Receive Sensitivity: -93dBm@5MHz

MESH Node: ＞32

Encrypted: AES128/256

Waterproof: IP65

Bandwidth: 5.0/10.0/20.0MHz

Consumption: ≤24W

Power supply:24V(14V-36V)

Working temperature: -40℃～+75℃

Dimension:202x85x30mm

Device Weight:550g Battery:200g

1W 70mbps 50km LOS IP Mesh Network Ad-Hoc Network Solutions 1


ST9633NS2 is professional designed for handheld or manpack bodyworn outdoor mission for soliders and sniper.

Product Components List:
1.TNC Antenna x 2pcs
2.Wifi Antenna x 1pcs
3.GPS Antenna x 1pcs
4.Ethernet Cable x 1pcs
5.Power Cable x 1pcs
6.Power Adapter x 1pcs
1W 70mbps 50km LOS IP Mesh Network Ad-Hoc Network Solutions 2


Device Warranty: One year since from the date of parcel received.
