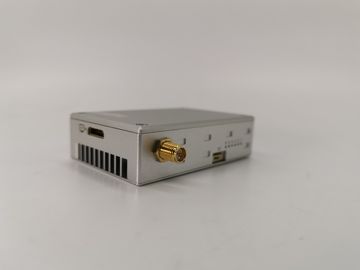

ST5HPT 5KM Long Range Wireless Transmitter , UAV Data Transmitter 2.3-2.5GHz 1080P

Basic Information
Place of Origin: China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST5HPT
Minimum Order Quantity: 1 set
Price: USD 2500-3000 per set
Packaging Details: Normal package
Delivery Time: 4-10days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99999 set per month
Contact Now
Detail Information
Model: ST5HPT Frequency: Frequency For Your Option 2.3GHz/2.4GHz/2.5GHz
RF Transmitted Power: 500mW (Air To Ground 5km) Power Consumption: TX: 9Watts , RX: 6Watts
Frequency Bandwidth: 4MHz Latency: 15-30ms
Transmission Rate: 3-5Mbps Receive Sensitivity: -100dbm@4Mhz
Transmission Distance: Air To Ground 5km HDMI: HDMI Mini/Flexible Flat Cable(FFC)
Dimension: 72×47×19mm Weight: Tx: 94g/Rx: 94g

Product Description

Description:
ST5HPT is a mini HD Video and Data transmission COFDM system for UAV offering control, telemetry & payload in,Video Transmission in 1 RF channel. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission. The system supports two-way(data&image)communication, adjustable video resolution,bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.



Features
 Video Input: HDMI
 Resolution: Full HD 1080P/60
 Frequency: 2.3Ghz-2.5Ghz
 Transmission distance:  Air to ground 5km .
 Latency: 15-30ms.
 Duplex Data Transmission :SBUS/TTL/MAVLINK Telemetry .
 Dimension: 72*47*19mm
 Weight : TX94g/RX94g



Parameters
Frequency: Frequency for your option 2.3GHZ/2.4GHZ/2.5GHZ
Error detection LDPC FEC/Video H.264/265 Super Error Correction
RF transmitted power 500mW(Air to ground 5km)
Power consumption TX: 9 Watts     RX: 6 Watts
Frequency bandwidth 4MHZ
Latency 15-30ms
Transmission rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T 1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264+H.265
Bitrate Can be adjust in software
Encryption AES 128
Transmission Distance Air to ground 5km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/TTL/MAVLINK Telemetry
Serial Port Double Serial ports for bi-directional data and playload
Power supply DC 7- 18V
Interface: 1, 1080P/60 HDMI Mini RX x1
  2, 100Mbps Ethernet to USB / RJ45 on Windows × 1
  3, S1 TTL bidirectional serial port x1
  4, Power Input x1
Indicator Light 1, HDMI input/output Status
  2, Transmitting and receiving
  3,Video board working Status
  4,Power
HDMI HDMI mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature: -40°C ~+ 85°C ,Storage temperature: -55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 72×47×19mm
Weight Tx: 94g/Rx: 94g
