Product Details
Place of Origin: China
Brand Name: SUNTOR
Certification: CE RoHs FCC
Model Number: MB33
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: NEGOTIATION
Packaging Details: AIRCASING BOX
Delivery Time: 3-7DAYS
Payment Terms: T/T, Western Union
Supply Ability: 1000PCS PER WEEK
Transmission System: |
COFDM |
RF Transmitted Power: |
2W |
Receive Sensitivity: |
-97dBm@1MHz |
Power Consumption: |
≤30W |
Encryption Mode: |
AES128/AES256 |
Dimension: |
≤275mm × 198mm ×52mm(include Battery) |
Transmission System: |
COFDM |
RF Transmitted Power: |
2W |
Receive Sensitivity: |
-97dBm@1MHz |
Power Consumption: |
≤30W |
Encryption Mode: |
AES128/AES256 |
Dimension: |
≤275mm × 198mm ×52mm(include Battery) |

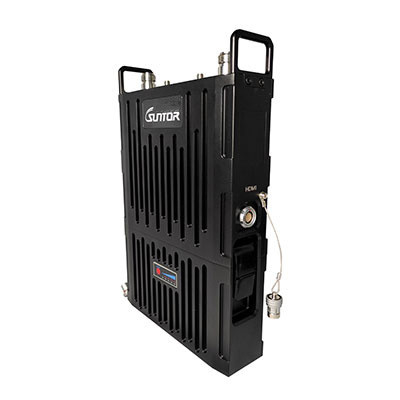

Wireless IP MESH Multi-Hop Ad-Hoc Network Equipment GPS/Wifi/4G
MB33 Backpack Mesh Radio Specifications-v1.0_compr...
Product Introduction
Multi carrier COFDM technology
Peak peer-to-peer bandwidth up to 90Mbps.
Point to point transmission distance > 30Km (Visible distance)
Multi hop ad hoc network (MESH) technology
Automatically construct network and calculate network routing, No manual operation required, effectively saving manpower and resources.
Supports 52-node AD hoc network, automatic multi-hop transmission, and realizes seamless coverage of the area.
Portable and easy to use
No more setup required before using.
Supports configuration functions for Mobile phones, WEB, etc., and can be remotely managed.
Customized functions
Transmission power 2W adjustable.
Working frequency range 200MHz-1.4GHz customizable.
Channel bandwidth 5/10/20MHz adjustable.
Product Features
| System Parameter | ||
| Operating frequency | 1428~1448MHz | |
| Bandwidth | 5/10/20MHz,Flexible and configurable | |
| Transmission system | COFDM | |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
| Transmission capacity | Peak rate 90Mbps@20MHz | |
| RF Transmitted power | 2W | |
| Receive Sensitivity | -97dBm@1MHz | |
| Video input | Support IP network video input , WIFI video access (HDMI video input need to be customized) | |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops | |
| Access time | 5s after start up of the system | |
| Network topology | Centerless network, star network, chain network, mesh network, etc | |
| Encryption mode | AES128/AES256 | |
| Power supply mold | Allocate DC 25.2V removable lithium battery | |
| Power Consumption | ≤30W | |
| Equipment interface | ||
| Antenna interface | N-K×2 | |
| GPS interface | SMA-K | |
| WIFI interface | SMA-K | |
| Ethernet interface | Aviation interface,Support 100M network interface | |
| Audio interface | Aviation interface,Support hand microphone or earphone | |
| Physical indicators | ||
| Dimension | ≤275mm × 198mm ×52mm(include battery) | |
| Equipment Weight | ≤3kg(include battery) | |
| Protection degree | IP66 | |
| Working temperature | -30℃～+65℃ | |
