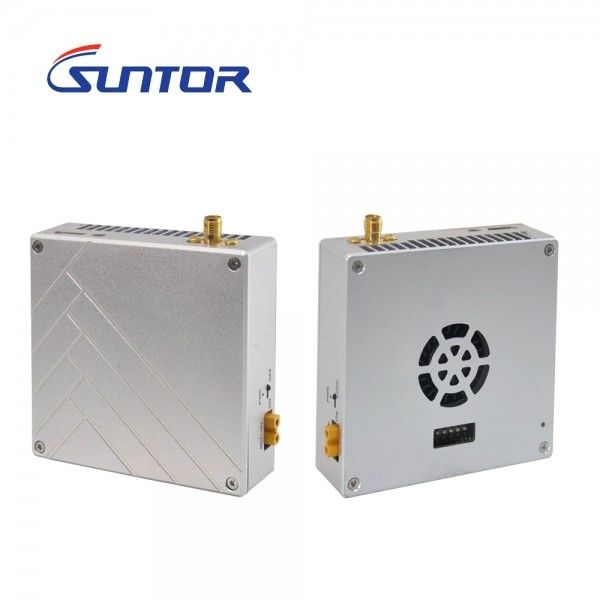

HD UAV Data Link , High Definition Multimedia Interface transmitter wireless for Pixhawk Auto polit System

  • HD UAV Data Link , High Definition Multimedia Interface transmitter wireless for Pixhawk Auto polit System
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST30HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Baud Rate 115200bps(Default) Size TX 73x48x20mm(±0.2)mm
Video Input High Definition Multimedia Interface And Ethernet Video 1080P(1920*1080) 60FPS
Max Speed Rate 450km/h Carrier 2K, 8K
Modulation COFDM Sensitivity -104dbm@2Mhz,-100dbm@4Mhz,-95dbm@8Mhz
High Light

uav video link

,

wireless video transmitter hdmi
Leave a Message
Product Description



HD UAV Data Link , High Definition Multimedia Interface transmitter wireless for Pixhawk Auto polit System





Specs Sheet



User Manual





Introduction





Model ST30HPT is our powerful and long range full HD av and data signals transmitter using the core of mobile communication technology COFDM, which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile. 1.5W rf power and -100dBm@4Mhz sensitivity can the transmisssion distance can upto be 30km. Supportting full HD 1080P(1080i) H.264 +H.265 encoding format and High Definition Multimedia Interface/Ethernet/Bidirectional serial data inputs and compatible well with Pixhawk system.





Feature:





1) COFDM modulation, Stable transmission
2) H.264+H.265+TS video compression, Full HD Video quality
3) Support high speed moving transmission
4) Works well with Pixhawk system
5) Great security by encryption of AES128 bits
6) Modular design, compact structure, OEM design
7) Support custom made for you or add additional functionality.



HD UAV Data Link , High Definition Multimedia Interface transmitter wireless for Pixhawk Auto polit System 0



RX Interface Definition



HD UAV Data Link , High Definition Multimedia Interface transmitter wireless for Pixhawk Auto polit System 1



Technical Parameters
Frequency 2.402-2.478Ghz
Modulation COFDM,4K,QPSK
DC Input DC7-18V
Working Current TX/RX: 1A/0.41A@DC12V
RF Power Output 1.5Watts
Constellation QPSK,16QAM,
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Bandwidth 4/8Mhz
A/V Interface High Definition Multimedia Interface and RJ45
Encryption AES 128/256 bits
Flatness ≤2dB(within full frequency range) ,
≤0.5dB (within 8MHz)
Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Carrier 2K, 8K
SHG >52dBc
Video Compression mode H.264+H.265+TS
Resolution 1920*1080P
Video rate 5Mbps MAX (automatically)
RF Interface SMA
Video Format High Definition Multimedia Interface and IP
Operating Temperature -45ºC~85ºC
Distance 30km
Size TX: 76*73*24mm/RX: 73x48x20mm
Weight TX/RX: 146g/93g
