Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: PB33
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
CPU: |
Intel I7 CPU |
Encryption Mode: |
AES 256 |
Operating Voltage: |
DC 14.8V |
Operating Temperature: |
20~+55℃ |
Storage Temperature: |
-50℃~ +70℃ |
Overall Dimension: |
52.5*43.7*21.3cm |
CPU: |
Intel I7 CPU |
Encryption Mode: |
AES 256 |
Operating Voltage: |
DC 14.8V |
Operating Temperature: |
20~+55℃ |
Storage Temperature: |
-50℃~ +70℃ |
Overall Dimension: |
52.5*43.7*21.3cm |

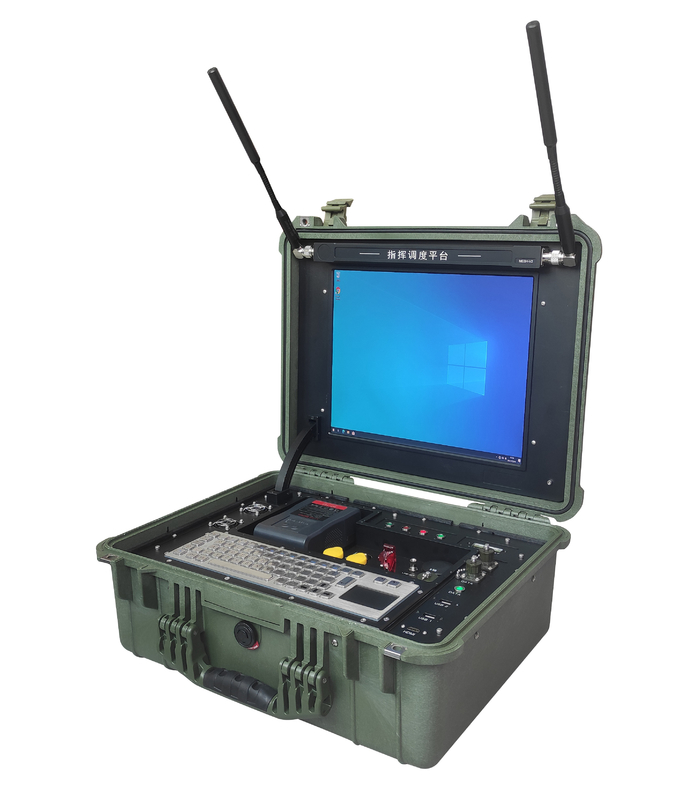

PB33 Portable Command & Dispatch Platform Box Spec...
Introduction
Equipment Characteristic:
| Host characteristics | |
| Operating System | WIN10/64bit |
| CPU | Intel I7 processor |
| Display Screen | 17 inch HD bright screen |
| Memory | 16G |
| Storage Mode | 240G solid state drive |
| Mode of operation | Embedded mouse and keyboard |
| Transmission Characteristic | |
| Frequency Rang | 1438MHz(200MHz-1.5G customizable |
| Channel Bandwidth | 5M/10M/20M (adjustable |
| Transmitted Power | Max 33dBm |
| Constellation Modulation | (BPSK/QPSK/16-QAM (Adaptive)) |
| Forward error correcting code | 1/2, 2/3, 3/4, 5/6 Optional |
| Digital Sensitivity | The highest -93dBm@5MHz |
| Transmission Rate | Peak rates are up to 70Mbps |
| Networking Capability | The number of chain hops in an AD hoc network is more than 9. The number of nodes in an AD hoc network is not less than 32 |
| Data Characteristics | |
| Rf Interface | N*2,SMA*1 |
| Video Display | 17 inch HD bright screen |
| Cable Interface | RJ45 Waterproof port *2 |
| Intercom Interface | 6-core navigational plug |
| Data Interface | 3-core navigational plug (spare) |
| Power Interface | 2-core navigational plug |
| 4G Function | all-netcom |
| Signal Light | Five signal lights |
| Power switch | Flip the self-locking switch |
| Encryption Mode | AES 256 |
| Electrical Characteristics | |
| Operating Voltage | DC 14.8V |
| Working Current | ≤ 7A |
| Power Consumption | The average power consumption of the machine is 60W |
| Battery Capacity | 10Ah |
| Physical Characteristics | |
| Operating Temperature | 20~+55℃ |
| Storage Temperature | -50℃~ +70℃ |
| Overall Dimension | 52.5*43.7*21.3cm |
| Equipment Weight | 14.8kg (including battery) |
