Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST5200W1
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Working Frequency: |
160MHz~860MHz |
Output Power: |
30dBm |
RF Bandwidth: |
2/4/6/8 MHz |
Encryption: |
AES 256 |
Weight: |
136g |
NLOS Range: |
200-500meters |
Working Voltage: |
DC12V |
Modulation: |
COFDM |
Working Frequency: |
160MHz~860MHz |
Output Power: |
30dBm |
RF Bandwidth: |
2/4/6/8 MHz |
Encryption: |
AES 256 |
Weight: |
136g |
NLOS Range: |
200-500meters |
Working Voltage: |
DC12V |
Cofdm Video Camera Signals Wireless High Definition Multimedia Interface Transmitter Sender Full Hd For Eod Robot

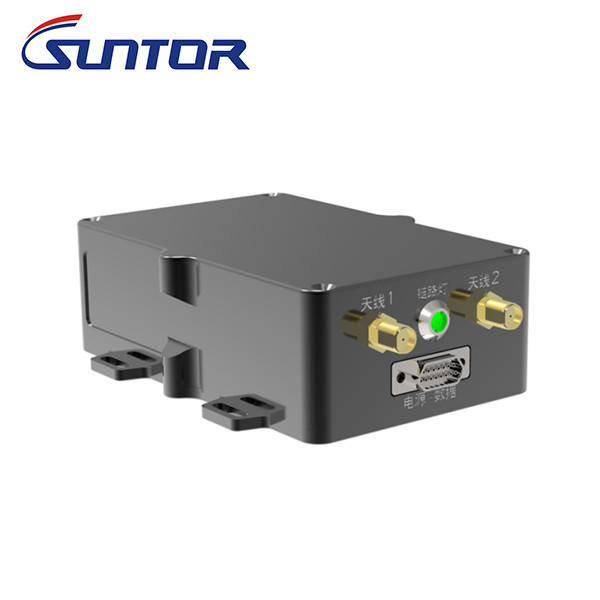

ST5200W wireless HD mini video transmitter is specially designed for robot application with small size and light weight.
Features:
Application:
COFDM mobile microwave wireless AV transmitter is wildly applied for , law enforcement, maritime surveillance, security video surveillance, and unmanned vehicles like UAV, UGV, robot etc.
Tx Parameters
| Power | ||
| Working Voltage | DC12V | |
| Working Current | 2A | |
| RF | ||
| Working Frequency | 160MHz~860MHz | |
| Output Power | 30dBm | |
| RF Bandwidth | 2/4/6/8 MHz | |
| Modulation | COFDM | |
| Serial Port | ||
| Data | Half-duplex transparent data transmission(OSD UART) | |
| Serial Port | Config UART | |
| System | ||
| Convolutional Encode ratio | 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Modulation | QPSK/QAM16/QAM64 | |
| IFFT | 2K/8K | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| High Definition Multimedia Interface | ||
| Version | High Definition Multimedia Interface mini | |
| Resolution Ratio | Max 1080*1920/60P | |
| Video Encoding | H.264 | |
| CVBS | ||
| Video Encoding | H.264 | |
| Video Input Format | PAL/NTSC | |
| Encryption | ||
| Encryption | AES 256 | |
| Antenna | ||
| Omni Antenna | SMA | |
| Weight & Dimension | ||
| Weight | 136g | |
| Dimension | 75*65*28mm | |
