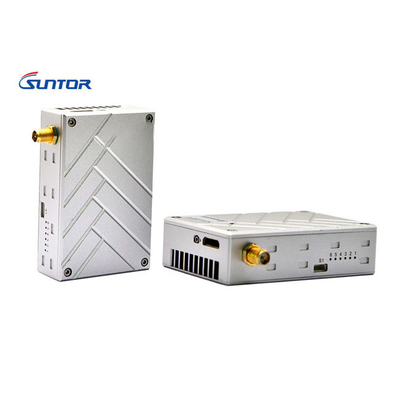

Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case

  • Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST11HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM RF Power 1000mW
Frequency 2.402-2.478GHz Data Support SBUS/PPM/TTL
Transmission Distance Air To Ground 8-12km Encryption AES 125/256
Dimension 72×47×19mm Weight Tx: 94g/Rx: 94g
High Light

drone transmitter and receiver

,

drone wireless video transmitter
Leave a Message
Product Description



Compact Helicopter Video And Data Full Hd Wireless Transmitter Receier 1000mw With Strong Case



ST11HPT Specs.pdf



TDD-COFDM wireless video data links advantages:

  • 1. Long range transmission distance 8-12km;
  • 2. Delay time very short less than 25ms;
  • 3. Perfect image quality, brighter colors and image smoothness.
  • 4. Micro and lightweight less than 100g



Features:

  • Low delay time less than 25ms
  • Lightweight, 94g net weight only
  • Small size
  • 8km to 12km LOS distance on air
  • High quality and cost COFDM video transmitter
  • Aluminum-unibody housings featured, good impact resistance and heat dissipation
  • Special design for economical drone



Parameters

Frequency 2.4GHZ(2.402-2.478GHz)
Frequency Bandwidth 2/4/6/8MHz
Latency ≤12-25ms
Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format H.264+H.265
Adjustment mode of bitrate Software adjustment
Receive Sensitivity -100dbm ~ -90dbm
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Power supply DC 7- 18V (DC 12V advised)
Working Temperature -40℃~+85℃



Parameter

Model

 RF Transmitted Power Transmission Distance (Air to Ground)

Antenna Gain

(Tx: 5dBi)

 Power Consumption Dimension Net Weight
ST5XHPT 400mW 5km Rx: 7dBi Tx: 7W Rx: 5W 73×48×14mm

Tx: 58g

Rx: 58g
ST5HPT 400mW 5km Rx: 7dBi Tx: 6W Rx: 5W 72×47×19mm

Tx: 94g

Rx: 94g
ST11HPT 1W 8-12km Rx: 8dBi Tx: 7W Rx: 5W 72×47×19mm

Tx: 94g

Rx: 94g



Application:

With proven Suntor TDD-COFDM technology and H.264+H.265 encoder technology at its core, the ST11HPT transmitter enables viewers HD images ideal for establishing rugged wireless video links in flight environment.
