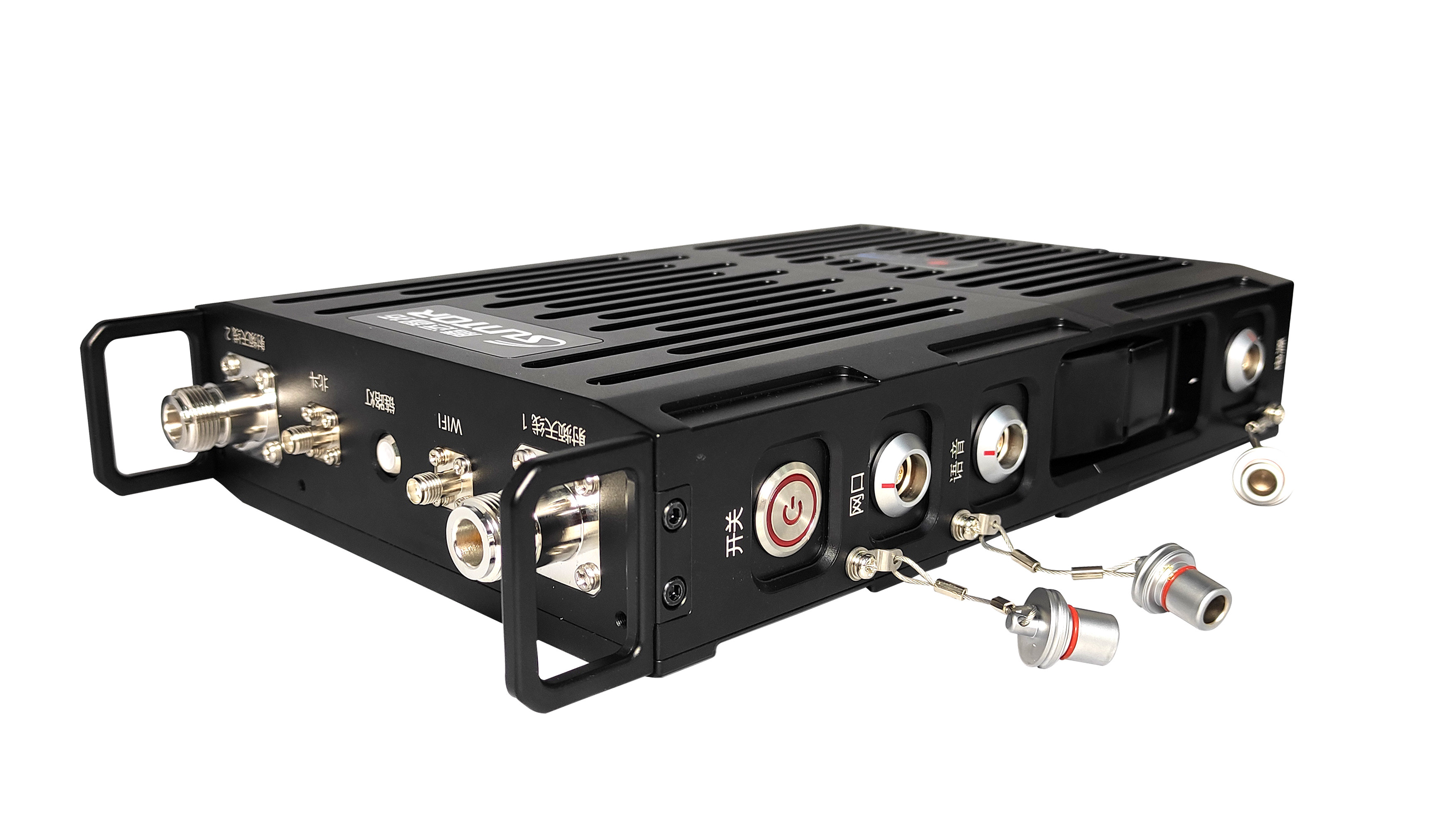

Backpack Ad Hoc Radio

  • Backpack Ad Hoc Radio
Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST9300DB-N
Minimum Order Quantity 1SET
Price Negotiation
Packaging Details normal packing or base on your requirements
Delivery Time in 12 days
Payment Terms T/T
Supply Ability 1000SET/DAY

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Frequency 1428~1448MHz Bandwidth 5/10/20MHz
LOS Transmission Distance >10KM Transmission System COFDM
RF Transmitted Power 2W Video Input IP Network/WIFI Video/HDMI Video Input
Antenna Interface N-K*2 Encryption Mode AES128/AES256
Power Supply DC25.2V Removable Battery Application Emergency Response, Anti-terrorism And Anti-riot, Covert Reconnaissance, Special Operations, Rescue And Disaster Relief, Daily Patrols
High Light

LOS 10KM ad hoc radio

,

backpack ad hoc radio IP66

,

backpack ad hoc radio
Leave a Message
Product Description

LOS 10KM IP66 backpack mesh wireless transmission ad hoc solider radio



1.Quick detail Of Backpack Ad Hoc Solider Radio



1.1 Typical Working frequency: 1.4GHZ

1.2 Bandwidth: 1/2/5/10MHz

1.3 Transmitting powe: 2W

1.4 Power supply: removable battery DC16.8V

1.5 Transmission Rate: 90Mbps

1.6 LOS distance: over 10KM

1.7 Weight:800g(include the battery)

1.8 Size: 214*71*35.8mm(include the battery)

1.9 Encryption: AES128/AES256

2.0 Receive sensitivity:-97dbm

2.1 Interface input: IP+WIFI(HDMI/AV can be customized)





2. Description of Backpack Ad Hoc Solider Radio



Individual soldier mesh network transmission device,with small size, light weight, equipped with high-capacity removable batteries, easy to carry on the back of individual soldiers, fully liberating hands.



Fast network access, automatic multi-hop relay, can provide voice group call, video backhaul, relay transmission and other multimedia communication services for individual soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration.



The transmission distance can reach more than 10km in the open environment on the ground, 300~1000m in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.





3. Specification of Backpack Ad Hoc Solider Radio



System Parameter
Operating frequency 1428~1448MHz
Bandwidth 5/10/20MHz,Flexible and configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacity Peak rate 90Mbps@20MHz
RF Transmitted power 2W
Receive Sensitivity -97dBm@1MHz
Video input Support IP network video input , WIFI video access and HDMI video input
Video input Networking capable ≥52 nodes
Networking hops ＞10 hops
Access time 5s after start up of the system
Network topology Centerless network, star network, chain network, mesh network, etc
Encryption mode AES128/AES256
Power supply mold Allocate DC 25.2V removable lithium battery
Power Consumption ≤40W





Equipment interface
Antenna interface N-K×2
GPS interface SMA-K
WIFI interface SMA-K
Ethernet interface Aviation interface,Support 100M network interface
Audio interface Aviation interface,Support hand microphone or earphone
HDMI interface Aviation interface,support HDMI input


Physical indicators
Dimension ≤275mm × 198mm ×52mm(include battery)
Equipment Weight ≤3kg(include battery)
Protection degree IP66
Working temperature -30℃～+65℃


4. Feature of Backpack Ad Hoc Solider Radio

  • Centerless Self-organizing mess network,automatic link selection,flexible networking mode,easy to use
  • Multi hop to expand coverage and distance
  • Long transmission distance
  • Strong anti-interference
  • Good diffraction
  • Safe and stable
  • Low system latency 30ms
  • Great security by encryption of AES 128 or 256 bits
  • easy to install and simple to operate
  • Rugged “brick” (externally powered)
  • Rugged Backpack (w/ twist-lock battery connector)



5. Application of Backpack Ad Hoc Solider Radio



It can provide wireless broadband communication as soon as possible for emergency response, anti-terrorism and anti-riot, covert reconnaissance, special operations, rescue and disaster relief, daily patrols and other "peace and emergency" tasks.



Backpack Ad Hoc Radio 0





6. Interface of Backpack Ad Hoc Solider Radio



Backpack Ad Hoc Radio 1



7. Accessories of Backpack Ad Hoc Solider Radio



1 X of Backpack ad hoc Radio Host

2 X RF Antenna

1 X WIFI Antenna

1 X Beidou Antenna

1 X Hand microphone

1 X Network port air plug

1 X TTL port air plug

1 X Power supply air plug

1 X Charger

1 X Guarantee card
