High power 33dBm manpack nlos 1km+ Wireless Network Bridge With GPS WiFi Function

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9601MS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Duplex Mode TDD Frequency Range 570~590MHz/1400~1420MHz
RF Power 33dBm Bandwidth 5/10/20MHz
Rx Sensitivity -92dBm Operating Voltage DC 9~28V

mesh wifi equipment


mesh network module

Leave a Message
Product Description

High power 33dBm manpack nlos 1km+ Wireless Network Bridge With GPS WiFi Function


ST9601MS Specs.pdf


Based on the growing demand of the proprietary communications market,our 1st Mesh product model module can able to deliver video,voice,and data signals over IP networks in a complex environment with a wide coverage,strong diffraction ability,high transfer rate and self-defined security encryption.The Mesh is suitable not only for PTP communication,but also centerless multi-hop ad hoc network. According to the work environment and the number of nodes, it throughput up to 80Mbps, transmit distance can be extended through multi-hop. As Mesh self-organizing / self-healing features make it very suitable for motion surveillance with high quality image and emergency communication.


The main key function

  • No need Wireless Mesh central gateways

  • Any equipment can self form and self heal to ensure the whole system working smoothly.

  • One master board can combine 3 RF radios for the gathering of wider bandwidth from different directions.

  • GPS Function

  • In the status of 200km/h high-speed mobile, it can automatically judge and hop onto different base station according to signal strength.



  • Event security

  • Perimeter surveillance

  • Covert / concealed surveillance

  • SWAT / quick reaction teams

  • Inter-vehicle networking

  • Air-to-ground

  • Backhaul

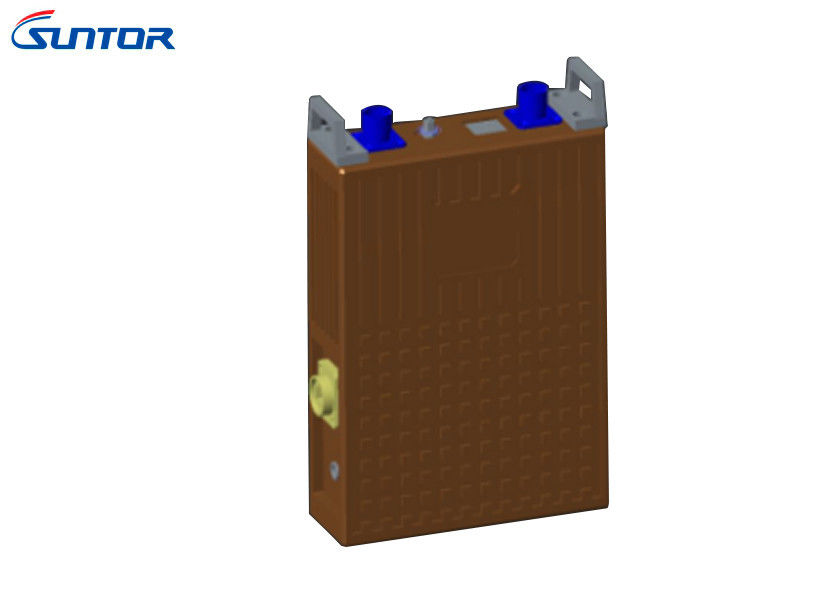

High power 33dBm manpack nlos 1km+ Wireless Network Bridge With GPS WiFi Function 0

Technical Parameters

Working Frequency


500~1400MHz(On request)

Bootloader U-boot
2412-2462MHz(Wifi) Linux 3.18.19
1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz Subnet Mask Configurable
20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 2Watts Bandwidth Adjustable
0.2W(Wifi) RF Power Adjustable
Rx Sensitivity -92dBm Support Adhoc
Support 42 node max
-90dBm(Wifi) ESSID/BSSID Configurable
Duplex Mode TDD Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps Support RTS/CTS Setting
40Mbps(Wifi) Connection Status Display
Antenna 2*N type Antenna Interface Wifi Working Frequency Adjustable
1*Wifi SMA Antenna Interface RF Power Adjustable
1*GPS SMA Antenna Interface Support AP mode
Ethernet 1*100Mbps Ethernet Interface ESSID Configurable
Serial Interface Bit rate upto 115200bps (9600-115200bps Adjustable)
Indicator 1*System States Indicator Light Supports adaptive rate mode
1*Ethernet Status Indicator Light Support WMM/802.11e QoS
1*Wifi States Indicator Light Support Distance Optimization
3*Network Signal Strength Indicator Light Support RTS/CTS Setting
Key 1*Reset Button Support MAC address filtering
Power DC9-28V Connection Status Display
Power Consumption

Working Voltage: DC12V

Standby Current 500mA

Max work Current 3A

WPA/WPA2/WEP Encryption
Battery 12V/21Ah Hidden ESSID
Battery Endurance 4hours(full charge) Support Network transparent transmission GPS original positioning data
Dimension 220mm*155mm*52mm Support web page management
Temperature Storage: -30℃~+90℃ Management Support SSH security management
Working: -20℃~+65℃ Import/export configuration information
Waterproof IP66 Restore factory configuration
Serial Port 1*Serial Port(On request) Update firmware online
Moving Speed >200km/h
