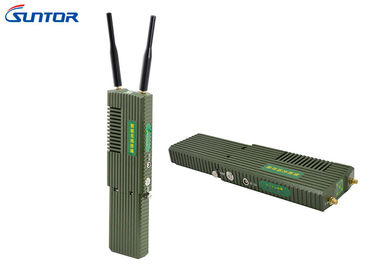

Wireless Mesh Network Products 1W NLOS Wireless Mobile Ad Hoc Mesh Networks Bridge

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9601MS
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: TDD Frequency Range: 570~590MHz/1400~1420MHz
RF Power: 1W Frequency Bandwidth: 5/10/20Mhz
Support Moving Speed: >200km/h Function: 2*2 MIMO/ GPS

Product Description

Wireless Mesh Network Products 1W NLOS Wireless Mobile Ad Hoc Mesh Networks Bridge



ST9601MS Specs.pdf



Suntor provide air to ground application with the performance of Ad-Hoc Network and the ease and flexibility of IP. Suntor’ revolutionary Mobile Networked MIMO technology utilizes a powerful combination of IP mesh and Multiple Input Multiple Output (MIMO) antenna techniques to enable unprecedented throughput, range, spectral efficiency, mobility, and robustness.



Unlike WiFi-based technologies, Suntor’ 100% proprietary solution provides robust, bi-directional or mesh communications in a variety of environments from dense urban to sprawling rural plains. The radios combine to form a single frequency network, operating in your choice of licensed and unlicensed bands from 4800MHz to 6GHz. Suntor provides unmatched mission reliability.



Features

  • No need Wireless Mesh Central Gateways, any equipment can wireless ad hoc network with other equipment
  • 5/10/20MHz frequency bandwidth to choose, strong anti-interference.
  • GPS function to real time position the device.
  • Coordinate position and topological graph can be display in the device
  • The device Can be located out of latitude and longitude and altitude



Application:
Military grade machine design, lightweight, for portable. Shell-case of metal material,military level designed and lightweight to take full consider of heat dissipation, security, harsh working conditions and other factors, and easy for deployment and operation. We design and manufacture the all IP mesh products and the core technology and intellectual property rights in our own hands,so that some sensitive customers and projects can be assured of purchasing from us. And we accept of flexible customization based on user needs.Product is widely used in public security, armed police, fire, disaster relief and other emergency communications systems; UAV aerial, electricity, water, waterway, border and other monitoring.



Technical Parameters

Working Frequency

570~590MHz/1400~1420MHz

500~1400MHz(On request)

Bootloader U-boot
2412-2462MHz(Wifi) Linux 3.18.19
1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz Subnet Mask Configurable
20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 1W Bandwidth Adjustable
0.2W(Wifi) RF Power Adjustable
Receive Sensitivity -92dBm Support Adhoc
-90dBm(Wifi) ESSID/BSSID Configurable
Duplex Mode TDD Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps Support RTS/CTS Setting
40Mbps(Wifi) Connection Status Display
Antenna 2*N type Antenna Interface Wifi Working Frequency Adjustable
1*Wifi SMA Antenna Interface RF Power Adjustable
1*GPS SMA Antenna Interface Support AP mode
Ethernet 1*100Mbps Ethernet Interface ESSID Configurable
Serial Interface

Support RS232

(Bit rate 9600-115200bps Adjustable)

Indicator 1*System States Indicator Light Supports adaptive rate mode
1*Ethernet Status Indicator Light Support WMM/802.11e QoS
1*Wifi States Indicator Light Support Distance Optimization
3*Network Signal Strength Indicator Light Support RTS/CTS Setting
Key 1*Reset Button Support MAC address filtering
Power DC9-28V Connection Status Display
Power Consumption

DC12V

Standby Current 320mA

Ad Hoc Network Current 460mA

Data Transmission Current 1.2A

WPA/WPA2/WEP Encryption
Battery 12V2600mAh Hidden ESSID
Encryption AES128
Battery Endurance 2hours Support Network transparent transmission GPS original positioning data
Dimension 141.5mm*88mm*30mm Support web page management
Temperature Storage: -30℃~+90℃ Management Support SSH security management
Working: -20℃~+65℃ Import/export configuration information
Weight 820g(Including Battery) Restore factory configuration
Serial Port 1*Serial Port(On request) Update firmware online
Moving Speed >200km/h
