5km COFDM UAV/Drone Video and data link compatible with 2.4G FUTABA RC

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST5HPT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFMD Frequency Range: 2.402-2.478GHz
Transmission Power: 0.4W (26dBm) Transmission Range: Air To Ground 5km
Transmission Mode: Point To Point / Point To Multipoint Latency: ≤12-25ms
Small Size: 72×47×19mm Light Weight: 94g

Product Description

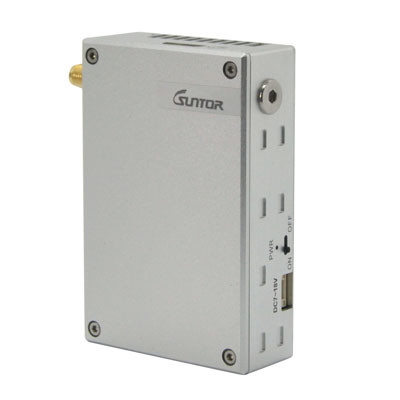

5km COFDM UAV/Drone Video and data link compatible with 2.4G FUTABA RC



Data Sheet



User Manual





Introduction:
This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation, provide high quality of picture in resolution 1080P, short latency.



This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.



Features:

  • COFDM modulation, CABAC (h.264) compression
  • Support 1080P / 720P resolution
  • Micro dimension, micro lightweight, easy to carry, heat dissipation of aluminum case
  • Only 50ms delay for whole system working
  • Built-in with HDMI ethernet and RS232 interface (multi selection)
  • Supports two-way(data&image&voice)communication
  • Ultra-distance ~1080P/ 300 meters altitude up to 5 km transmission distance



Application:
Advanced Microwave Products offers high quality video and data transmission products designed for rugged drones, UAS, UAV, UGV, and Military applications.



Parameters

Frequency 2.4GHZ(2.402-2.478GHz) Adjustable
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power

ST5HPT: 400mW (Air to ground 5km)

ST11HPT: 1Watt (Air to ground 10km)

ST30HPT: 1.5Watts (Air to ground 30km)


Frequency Bandwidth 2/8/20MHz Adjustable
Latency 12-25ms
Receive Sensitivity -100dbm/95dbm/90dbm
Transmitter Interface 1080P 60 HDMI Mini RX
100Mbps Ethernet Port
S1 S2 TTL bidirectional serial port
DC7-18V
SMA RF
Receiver Interface 1080P 60 HDMI Mini RX
100Mbps Ethernet Port
S1 S2 TTL bidirectional serial port
DC7-18V
SMA RF
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX Support the voice function
Video Compressed Format H.264 TS Support the bitrate output
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 5km
Start-up time < 30s
Total delay of the system 12-25ms of 1080P60/720P60 coding and decoding
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module Optional
Power supply DC7-18V DC7-18 V Optional
Total Power Dissipation

Transmitter: 7Watts

Receiver: 5Watts

Maximum value
Temperature Range Operating temperature:-40°C ~ 85°C
Storage temperature:-55°C ~ 100°C
Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1 Software adjustment
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 72×47×19mm
Weight Tx: 94g Rx: 98g
