SD COFDM Wireless Mini Video Transmitter Receiver 2W Body Worn

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200DB-SD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Working Frequency 300MHz~4.4GHz
Output Power 1~5W Adjustable On LCD Encryption Mode AES 128Bit
Video Format PAL / NTSC LCD Display Display And Manually Adjust Parameters
Weight 1.5kg Size 200×125×50mm (L×W×H)
High Light

micro fpv quadcopter

,

micro video transmitter

Leave a Message
Product Description

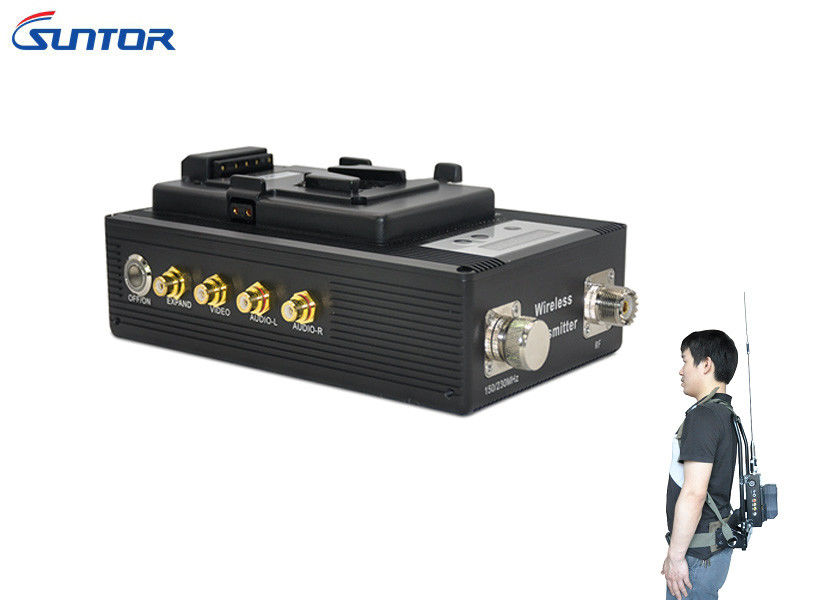

2W body worn SD COFDM mini wireless video transmitter receiver



Product description:
ST6200DB-SD wireless real-time video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology, has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.



Picture quality reach to DVD (720*576@ PAL / 720*480@ NTSC)via MPEG-2 encode, with the advantage of high definition & good color performance.



Product Features:

  • High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power;
  • Support NLOS transmission, strong diffraction capability;
  • Applied COFDM modulation technology, MPEG-2 video compression.
  • Working frequency could be customized within 300MHz~4400MHz
  • High quality digital video process & MPEG-2 video encoder and DVD video quality
  • System latency less than 300ms
  • Could transmit steady video and audio in high-speed mobile and multi-interfere circumstance
  • Double standard CVBS video output



Applications:
The product is widely applied to a lot of industries, likes: Public Policing, Fire&Security, Air Defense, &Guard, Smash Smuggling, TV Broadcasting, Environment Protection, Maritime Affairs, Large Mine, High Security Surveillance. And also applied to any rugged terrains where there is no wired cable link for audio,video, datas transmission: Mountain, Forest, Countryside, Desert, River, Island, Oil Field, Large Mine, Maritime, Spacial, Firing, Earthquake, Riot etc



Transmitter parameter

Modulation Working frequency 300MHz~4.4GHz
Output power 1~5W adjustable on LCD
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth 2/2.5/4/8MHz
Encryption mode AES 128Bit/SUNTOR Basic Scrambling
Code stream 2Mbps~12Mbps
Audio and video Compression format H.264(Embedded Audio)
AV input BNC
Video Resolution

PAL 720 x 576

NTSC 720 x 480

Image frame rate 30fps
Video Input Interface BNC female port
Audio Input Interface BNC female port
Power supply

1. Built-in Lithium Battery: DC 14.4V

2. External Power In: DC12V~16.8V

LCD display Display and Manually Adjust Parameters
Power switch ON/OFF
Size 200×125×50 mm (L×W×H)
Weight 1.5kg
