Manpack COFDM Full Hd Sdi Transmitter , Wireless Audio Video Transmitter

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200DB-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300MHz~4.4GHz
Output Power 1~5W LCD Adjustable Channel Bandwidth 2/2.5/4/8MHz
Code Stream 2Mbps~12Mbps Range 10km(LOS) 1km(NLOS)
Weight 1.5 Kg
High Light

wireless hd transmitter

,

wireless hdmi video transmitter

Leave a Message
Product Description

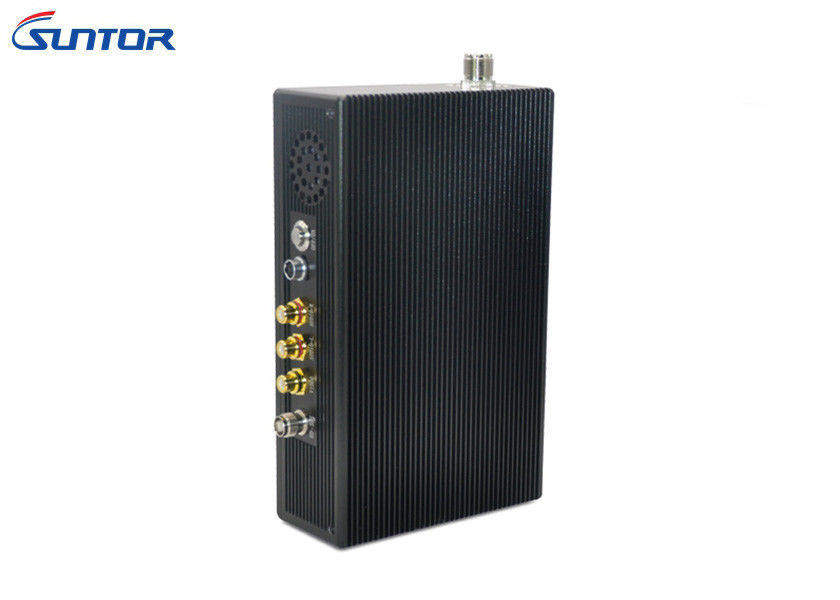

Manpack SDI COFDM Wireless Transmitter COFDM H.264 Audio Video Wireless Transmitter



Introduction:

It is used for high quality video transmission in environment of serious multipath effect (sea clutter) such as cities of skyscrapers or sea surface. With excellent diffraction and building-penetrating ability, it can be applied to urban, mountain and motion environment.



ST6200DB-HD is a backpack transmitter, mainly used as individual soldier equipment, with bi-directional voice, easy for individual backpack and use. Besides, ST6200DB-HD can also be used for various vehicles as on board transmitter. Allowed motion speed of the vehicle can reach more than 180 kilometers. It is an ideal equipment applicable to individual soldiers, urban environment and motion platform.



Feature:

  • One high definition image
  • Bidirectional full-duplex voice
  • Voice
  • Fully encrypted
  • Work frequency: 300~4400MHz(or customized))
  • Power adjustment: manually adjustable, changing range 1w ~ 5 w; ensure the safety of personnel or expand transmission distance.
  • Easy to use. No need to unload station when switch channels and adjust transmission power, one person can handle on the move.
  • Transmission can bypass the buildings, from indoor to outdoor , basement to ground, or underground tunnel to ground
  • Low latency allows for responsive remote joystick control









Modulation

Working frequency 300MHz~4.4GHz
Output power 1~5W LCD adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz
Encryption mode manual operation AES double encryption
System Standard H.264 standard
Code stream 2Mbps~12Mbps
Range 10km(LOS) 1km(NLOS)
Usage mode Manpack
Audio and video Compression format H.264
AV input HD-SDI or High Definition Multimedia Interface,CVBS(optional)
Audio input BNC female port, HD-SDI or High Definition Multimedia Interface standard interface
Image resolution

HD1080P(1920*1080), compatibility 1080I,720P,480P and standard

resolution

Image frame rate HD1080P/60fps, HD1080I/50fps
Video input physical interface BNC female port, High Definition Multimedia Interface standard interface
Audio input physical interface BNC female port, High Definition Multimedia Interface standard interface
Others Power supply special battery DC14.4V
LCD display Display Work Instructions and the Parameters
Size 200×125×50 mm (L×W×H)
Weight 1.5kg



Applications:

  • Commercial
  • Industrial

Available for Long Range Line-of-Sight and Urban Non-Line-of-Sight applications.
