Portable Ethernet COFDM Transmitter , Microwave Video Transmitter For

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST-3080TDA
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency Range 300~800MHz
Transmission Mold Full-Duplex Bandwidth 5/8MHz
Output Power 2W/5W/10W(optional) Transmission Rate 2Mbps~8Mbps
Transmission Distance NLOS: 2-8km, LOS 10-15km, Horizontal On Sea 10-30km(LOS) Weight 1.2kg
Highlight

cofdm hd wireless transmitter

,

wireless hd video transmitter

Leave a Message
Product Description

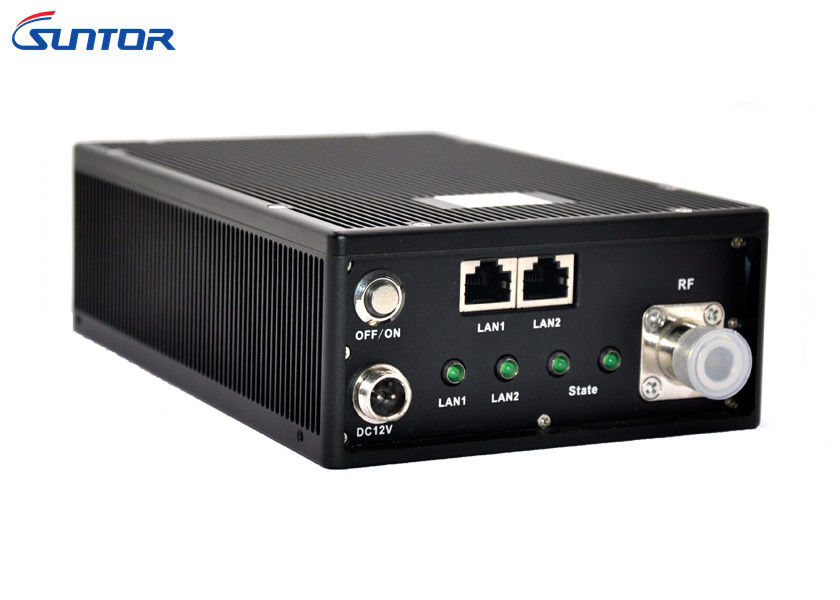

Rugged and portable microwave COFDM ethernet transmitter for



Introduction:
ST-3080TDA for data communication equipment, with TDD-COFDM two way data communication
It is newly designed and with AES data encryption and excellent data safety.



Multi transceiver uses the advanced data processing technology and leading division COFDM modulation.



It has encrypted network data transfer channel and used in UAV and .
Radio modem NLOS rs232 rs485 rs422 audio video wireless data link achieves real-time live broadcast, anti-multipath, high-speed mobile data, voice and image duplex module transmission.



Advantage:

  • Two-way communication NLOS by signal frequency

  • Support PTP&PTMP network composing

  • Support dual-way transmission, support to package form data, audio and video data, asynchronous serial data communication

  • UHF 300~800MHz, Strong transmission ability in NLOS

  • Stable digital signal transmission in high speed movement and multi interference environment

  • Double standard Ethernet port, facilitate extension

  • Portable plug &play with omni antenna to receive

  • Support customized design



Application:
It is a multimedia transmission system designed and developed specifically for mobile environment. It can realize video and voice signals synchronous transmission even under high-speed motion and block NLOS environment. This system has the advantages of high sensitivity, strong anti-interference ability and penetrating ability, high transmission rate and strong stability. It provides an ideal solution for the construction of emergency communication systems such as command, rescue, reconnaissance and field .





Modulation

Frequency

300~800MHz customize

Modulation

TDD COFDM

Bandwidth:

5/8MHz

Output power

2W/5W/10W(optional)

System

Transmission mold

Full Duplex

Transmission Protocol

Standard TCP/IP, transparent transmission

Transmission type

10/100Bate-T, Ethernet self-adapting

Transmission rate

2~8Mbps

Error rate

≤10-6

Transmission distance

NLOS: 2-8km, LOS 10-15km, Horizontal on sea 10-30km(LOS)

Receiving sensitivity

-92dBm

Receiving mode

Omni

Mode of application

Hang, Fixed

Other

RF interface

N-type Female

Ethernet interface

Two RJ45 Ports with connection indicator light

Signal strength indicator light

STATE1,STATE2

Power supply

DC 12V/5A

Power connector

Aviation plug

Operating humidity

No less than 95% (Non - Condensing)

Power switch

Press lock with light switch

Dimension

186×126×58mm (L×W×H)

Weight:

1.2KG
