HD Audio Wireless Video Sender And Receiver For UAV Large Live Broadcast Movie Film Shooting Aerial

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6200BM-HD

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 3-5 Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

AES Wireless Video Sender And Receiver

,

UAV Video Wireless Transmitter And Receiver

,

UAV Wireless Video Sender And Receiver

Modulation:
COFDM
Frequency Range:
138MHz-2GHz
Resolution:
720P
Transmission Range:
Air To Ground: 1-5km LOS: 1-2km NLOS≥200m
Power Supply:
DC 9-16V
Light Weight:
120g
Encryption Mode:
AES
Modulation:
COFDM
Frequency Range:
138MHz-2GHz
Resolution:
720P
Transmission Range:
Air To Ground: 1-5km LOS: 1-2km NLOS≥200m
Power Supply:
DC 9-16V
Light Weight:
120g
Encryption Mode:
AES
Description
HD Audio Wireless Video Sender And Receiver For UAV Large Live Broadcast Movie Film Shooting Aerial

Small Size 400mW Mini HD Video Audio Sender for UAV Large Live Broadcast Movie Film Shooting Aerial



Introduction:
Mini UAV transmitter High Definition Multimedia Interface video transmitter COFDM video transmitter ST6200BM-HD is new generation of real-time broadcast-quality and high-resolution . It adopts the current leading COFDM modulation technology and relative narrow-band frequency 6MHz, it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.



Features:

  • High quality digital video processing
  • COFDM modulation, H.264 coding and encoding
  • Vibration and shock resistant
  • Real-time transmission system, delay time for end-to-end is less than 300ms
  • Great action ability, can transmit images voice stably in the condition of high speed movement and multi-path interference
  • Support NLOS (non-line of sight) transmission, strong diffraction capability
  • Long range transmission distance
  • Spatial diversity reception ability, support high-speed mobile transmission
  • Stable signals, image clear and stable, has no mosaic or drag phenomenon
  • Extreme lightweight and rugged housing ,mini size

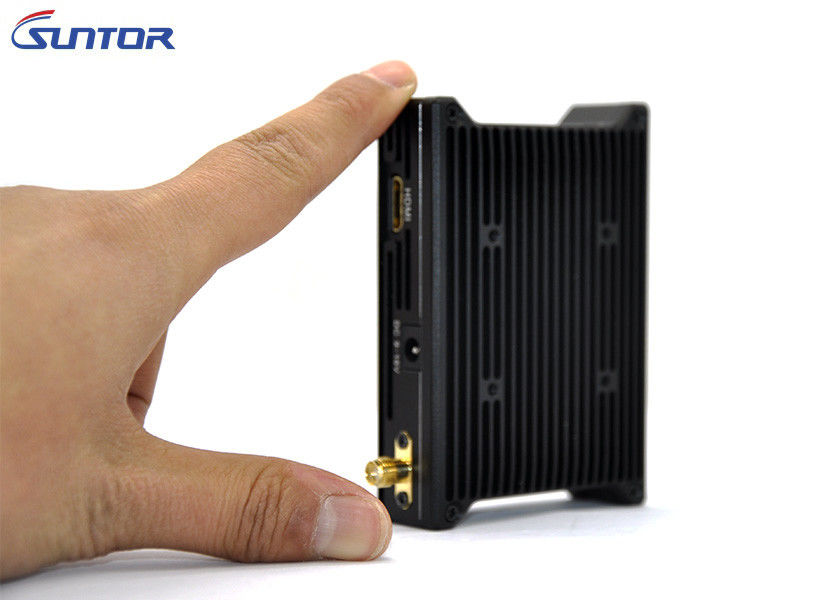

Mini HD COFDM Video Transmitter ST6200BM-HD is widely used in UAV aviation filming,,covert investigation,image monitor and real-time wireless video transmission.



RF-modulation Part
Frequency Range 138MHz~2GHz (customizable)
Modulation COFDM
Output Power 400mW
Transmission Distance LOS: 1~2KM, Air to earth: 1~5KM, NLOS>200m
Channel Bandwidth 6MHz
Error Correcting Mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Technical Standard H.264
Code Stream 2Mbps~8Mbps
Usage Mode Easy carrying, aerial photo, Hidden, NLOS transmit
Video Audio Part
Image Resolution HD720P (1280*720)
Compression Format H.264/MEG-2
Image fps Standard 24,50,60 fps
Video Audio Input/output port Digital High Definition Multimedia Interface port
RF Physical Interface SMA
Transmitter Light Video screen, channel shows
Receiver Signal Light shows the signal strong
Alarm Output Video loss, image loss
Receiving Polarization Vertical
Other Part
Other Function Comes with restart button and channel checking button
Power Supply Transmitter DC2.75 port, DC9-16V
  Receiver DC5.5, DC9-16V
Size Transmitter 89*62*22mm
  Receiver 108*88*21mm
Net Weight Transmitter 120g
  Receiver 170g
