Frequency Adjustable Wireless COFDM Video Transmitter 1080P HD For Remote Monitor

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200TPS-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300MHz~2GHz Adjustable
Transmission Power 20~27dBm Adjustable Channel Bandwidth 2/2.5/4/8MHz Adjustable
Resolution 1080P Compression Formats H.264 / MEG-2
Transmission Range LOS: 1-8KM, Air To Ground: 8-20km, NLOS: >400meters Encryption Mode AES
Video Interface SDI / High Definition Multimedia Interface / CVBS
High Light

hd wireless video sender

,

video wifi transmitter

,

Remote Monitor COFDM Transmitter

Leave a Message
Product Description

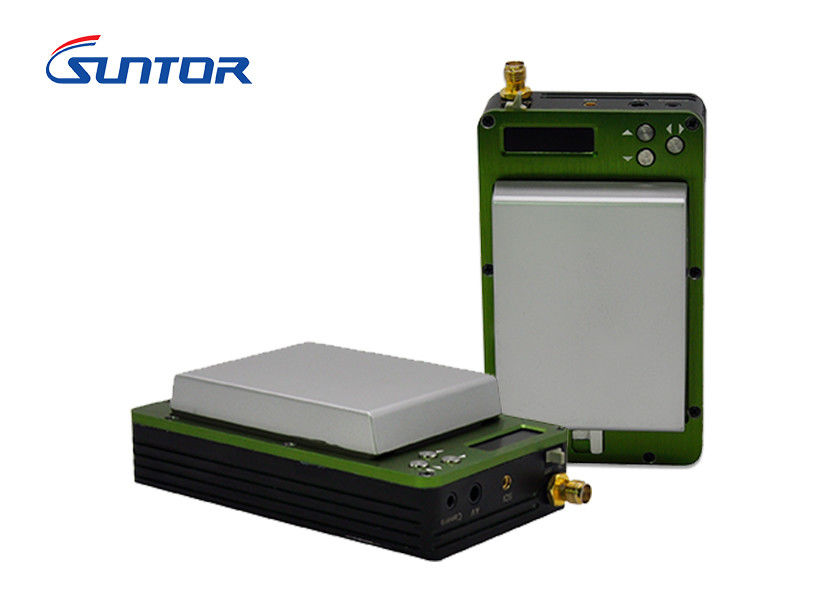

Frequency adjustable ultra small wireless 1080P HD COFDM video transmitter for remote monitoring



Introduction:
Mainly used in UAV video Aerial photography transmission scenario, the device will transmit video signal to the receiver and display video images,can do real-time monitoring.



ST6200TPS-HD mini portable HD wireless video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency 1.25/2.5/6/7/8MHz(optional), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.



Features:

  1. High definite resolution: 1080P(1920*1080)compatible with 720*576.
  2. High quality digital video processing&video encoding and decoding&DVD picture.
  3. Excellent anti-interference performance under complex electromagnetic condition.
  4. Transmit distance up to 15km LOS for UAV and 400m NLOS block transmission.
  5. Small size and light weight easy for carry.
  6. Can stably transmitter video&audio signal under the condition of high-speed mobile and multipath interference.
  7. Low delay time less 300ms.



Transmitter Parameter
Working frequency 300MHz~2GHz adjustable
Output power 100~400mW adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz adjustable
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Encryption mode manual operation AES double encryption
System part
Standard H.264
Code stream 1.5Mbps~12Mbps
BER ≤10-6
Transmission distance LOS: 1-8km, air to ground: 8-20km, NLOS: >400meters
Usage mode portable, aerial transmission, hidden transmission and short range NLOS av transmission
Audio and video part
Compression format H.264
Audio input igital HD-SDI,analog CVBS complex standard 2.5 and 3.5 double input
Image resolution HD1080P(1920*1080), compatibility 1080I,720P,480P and standard resolution
Image frame rate 30 frame/s
AV input physical interface digital HD-SDI
Video input physical interface standard 2.5 interface, standard 3.5 interface
Audio input physical interface standard 2.5 interface, standard 3.6 interface
Others
Battery powered DC 7.2V/140mA or external DC 7-16V
Built-in LCD display the parameters and adjust parameters function, the display will shut up within 3 seconds
Power switch ON/OFF
Size 100*58*18mm(L×W×H)
Weight 175g



Packaging Details:
1* Transmitter;
1* Receiver;
1* Airborne Antenna;
2* Omni antenna;
1* RF cables.
