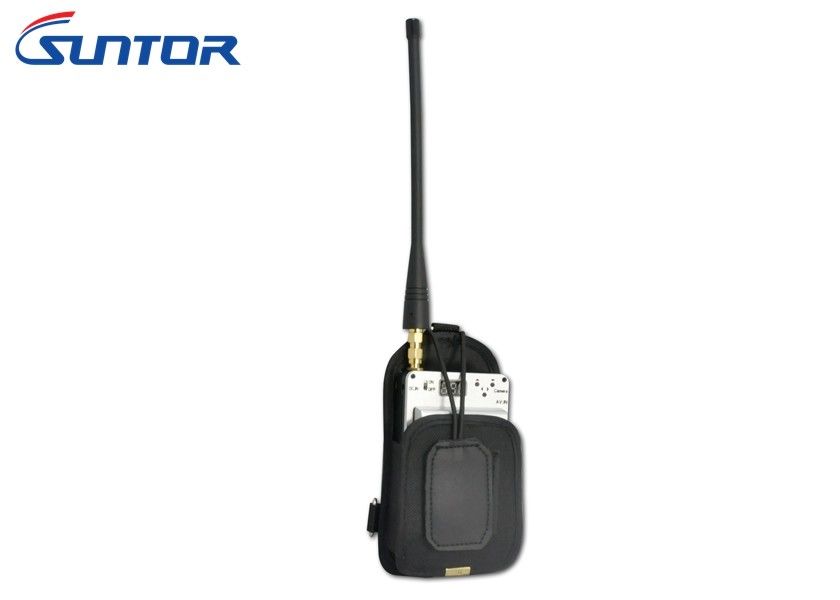

Handheld Hidden Camera Video Transmitter Invisible Transmission Up To 500m

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6200TPS-SD
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 3-5 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Frequency: 300MHz~900MHz(normal) 900MHz~2GHz (customized)
Output Power: 100~400mW Adjustable Channel Bandwidth: 2/2.5/4/8MHz
Compression Formats: H.264/ MEG-2 Transmission Signal: Analog Video Signal
Transmission Distance: Invisible Transmission Up To 500m Weight / Size: 175g / 100*58*18mm

Product Description

Handheld lightweight hidden camera wireless video transmitter invisible transmission up to 500m



System Introduction

The hidden camera video transmitter (ST6200TPS-SD) is a new concept in remote surveillance, designed specially to meet the special requirements of covert missions. The equipment is highly integrated and can realize wireless video transmission in mobile and NLOS (Non line-of-sight) conditions. With professional clothes and camera, it can be used in public security bureau or security department to finish covert missions. The transmission range can be up to 500m in NLOS (non-line-of-sight) condition.



Functions & Features:

  1.  Super low latency
  2.  Working frequency and RF bandwidth self-adapted within specified range
  3.  Low power consumption, small size and portable usage
  4.  Separately workable and also compatible with external power amplifier
  5.  Vest and pin-hole camera compatible
  6.  Military aviation plug for A/V and power interfaces;Different pins for different function interface to avoid misplug
  7.  Disconnectable lithium battery, easy operation and battery replacement



Product Application

By using a pinhole camera, the first responder can get live scenes. Then the mini transmitter transmits real-time video to the receiving center. In the receiving center we use a rack mount receiver which can be installed in the van/vehicle to realize LOS / NLOS (non line-of-sight) condition



Transmitter parameter

Working frequency 300MHz~2GHz adjustable
Output power 100~400mW adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz
Error correction mode FEC@Viterbi (1/2,2/3,3/4)
Protection interval 1/32,1/16,1/8,1/4
Encryption Dual AES encryption can be set manually
System section
Standard MPEG-2
Date rate 1.5Mbps~6Mbps
BER ≤10-6
Transmission distance Air to ground: 10-30km; LOS: 1-10km; NLOS: >500m
Use Portable , aerial , close shot secret visit , video transmission in short NLOS distance
Audio video section
Compression formats H.264/MPEG-2
Video input PAL/NTSC
Audio input Left / right
Image clarity Resolution :720*576,Frames per Second: 25 f/s
Video input port Standard able 2.5 AV connect port with 5V power output
Audio input port Standard able 3.5 AV connect port with 5V power output
Other section
Display LED display function parameters and adjust parameters , boot 3 seconds automatically turn off the display
Battery power supply DC7.2V/1400mA or 2200mA
External power supply Standard DC 2.5 connect port, Voltage:DC 7 -- 16 V
Power switch ON/OFF
Coloer Pure black , green, black, silver optional
Size 100*58*18mm (L×W×H)
Weight 175g

Handheld Hidden Camera Video Transmitter Invisible Transmission Up To 500m
