Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6200DB-HD
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Frequency: |
138-4400MHz |
Transmit Power: |
1~5W LCD Adjust |
Transmit Range: |
Onboard Application > 70 Km; Marine Application: > 30 Km; Suburban Application > 5 Km |
Modulation: |
COFDM |
Frequency: |
138-4400MHz |
Transmit Power: |
1~5W LCD Adjust |
Transmit Range: |
Onboard Application > 70 Km; Marine Application: > 30 Km; Suburban Application > 5 Km |

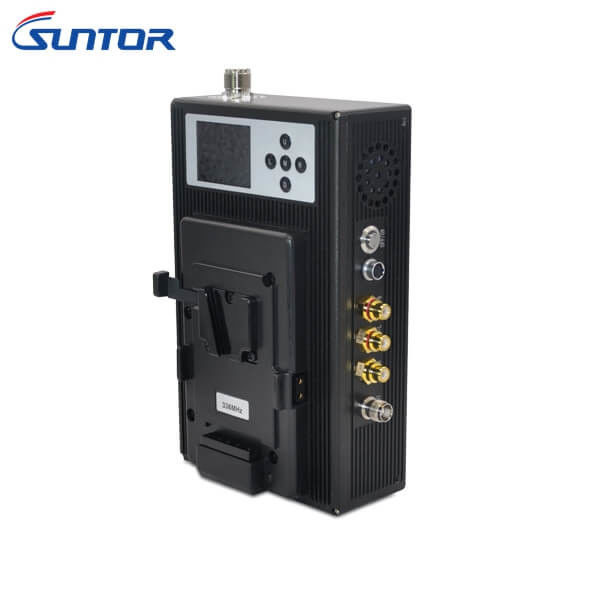

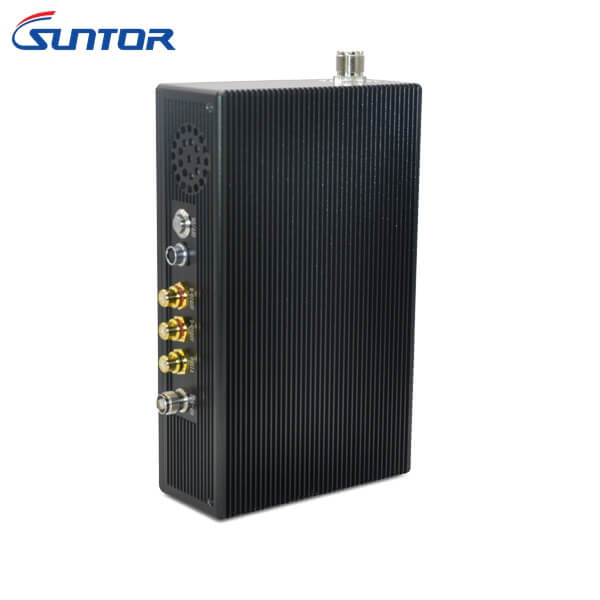

5W 5-70km NLOS Manpack COFDM video transmission System for monitoring
Introduction
ST6200DB-HD manpack HD wireless video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology, has the strong anti-jamming capability,overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.
Features
Picture quality reach to Full HD via H.264 encode & decode, of course the picture quality downward compatibility to 1080I, 720P or 480P. Support digital interface and analog interface, like HD-SDI & High Definition Multimedia Interface and simulation port CVBS. The advantage of the production include high resolution & contrast ratio, good color performance.
Parameter
Working frequency | 138MHz~4400MHz (customized) |
Output power | 1~5W LCD adjust |
Modulation | COFDM |
Channel bandwidth: | 2/2.5/4/8MHz |
Encryption mode | manual operation AES double encryption |
System part | |
Standard | H.264 standard |
Code stream | 2Mbps~12Mbps |
Usage mode | Manpack |
Audio and video part | |
Compression format | H.264 |
AV input | HD-SDI,CVBS or High Definition Multimedia Interface,CVBS(optional) |
Image resolution | HD1080P(1920*1080), compatibility 1080I,720P,480P and standardresolution |
Image frame rate | 30fps |
Video input physical interface | BNC female port, High Definition Multimedia Interface standard interface |
Audio input physical interface | BNC female port, High Definition Multimedia Interface standard interface |
Others | |
Power supply | special battery DC14.4V |
LCD display | LCD display for adjust parameter |
SIze | 200×125×50 mm (L×W×H) |
Weight | 1.5kg |
Application
This product has wide application, such as Public security, Fire control, traffic, Civil defense emergency, City management,Environment monitoring, Flood control,Electricity rescue,Railway rescue,Maritime law enforcement,Maritime surveillance inspections,Customs and Border Protection,Pier monitoring,Forest Fire,Oilfield theft, reconnaissance,living broadcast, and so on. It is suitable for urban area, seaborne, mountainous region and other complex environment high quality image mobile transmission.
