Drone Mesh Radio MD36Pro 52Mbps IP65 AES256 for UAV & Emergency Communications

Name: Drone Mesh Radio MD36Pro 52Mbps IP65 AES256 for UAV & Emergency Communications
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: MD36Pro
Price: 5,500.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: MD36Pro

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T,Western Union,Paypal

Supply Ability: 1000 set/ month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Drone Mesh Radio MD36Pro 52Mbps, IP65 AES256 UAV emergency radio, Ad Hoc Network wireless communication


Product Type:	Drone Mesh Radio	Frequency Band:	1.3GHz-1.5GHz
Data Rate:	52Mbps	Encryption:	AES256
Communication Range:	50KM	Protection Level:	IP65

Product Type:	Drone Mesh Radio
Frequency Band:	1.3GHz-1.5GHz
Data Rate:	52Mbps
Encryption:	AES256
Communication Range:	50KM
Protection Level:	IP65

Description

Drone Mesh Radio MD36Pro 52Mbps IP65 AES256 for UAV & Emergency Communications

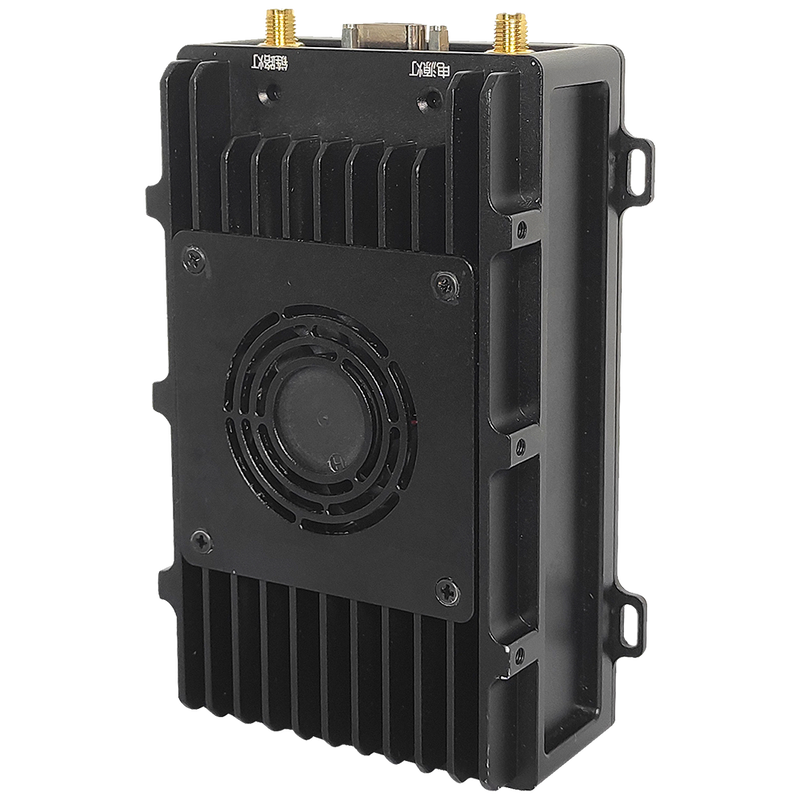

MD36Pro Drone Mesh Radio - High-Performance Wireless Communication

The MD36Pro Drone Mesh Radio is a high-performance wireless communication solution designed for UAV operations, emergency response, public safety, and tactical networking. Featuring advanced IP Mesh Network technology, the MD36Pro supports more than 64 mesh nodes, delivers up to 52Mbps throughput, and provides secure long-range connectivity with AES128/256 encryption.

With a compact IP65-rated design, dual 4W transmission power, FHSS frequency hopping capability, and up to 50KM air-to-ground communication range, the MD36Pro ensures reliable data transmission in complex and mission-critical environments.

Key Features

Long-Range Transmission: Up to 50KM air-to-ground communication distance
High-Speed Data Rate: Supports up to 52Mbps throughput at 20MHz bandwidth
Advanced Mesh Networking: Connects more than 64 nodes in a self-healing IP Mesh network
Defense-Grade Security: AES128/AES256 encryption protects sensitive communications
FHSS Frequency Hopping: Improves anti-interference and communication reliability
Fast Network Access: Network establishment within 5 seconds after startup
IP65 Rugged Design: Resistant to dust, rain, and harsh outdoor environments
Compact and Lightweight: Dimensions of only 128 × 88 × 42 mm and weight below 450g

Designed for Mission-Critical Applications

UAV and Drone Communications
Emergency Response Operations
Public Safety Networks
Disaster Recovery Communications
Border Security and Surveillance
Defense and Tactical Communications
Industrial Inspection Drones
Remote Monitoring and Data Collection

Technical Specifications

Model	MD36Pro
Frequency Range	1300-1500 MHz (Customizable)
Transmission Technology	COFDM
RF Power	2W × 2 (4W Total)
Maximum Data Rate	52Mbps
Networking Capability	64+ Mesh Nodes
Network Hops	More Than 10 Hops
Encryption	AES128 / AES256
Transmission Distance	Up to 50KM Air-to-Ground
Protection Level	IP65
Operating Temperature	-40°C to +65°C
Power Supply	DC 12V-26V
Weight	≤450g

Why Choose MD36Pro Drone Mesh Radio?

Combining long-range communication, high-speed networking, advanced encryption, and resilient mesh architecture, the MD36Pro delivers a reliable wireless networking solution for demanding UAV and mission-critical applications. Its ability to support large-scale mesh deployments while maintaining stable performance makes it an excellent choice for organizations seeking dependable airborne communication systems.
