Wireless IP MESH Radio NLOS Ethernet Ground Station for Control Center

  • Wireless IP MESH Radio NLOS Ethernet Ground Station for Control Center
Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST9300-N-JZ
Minimum Order Quantity 1PCS
Price Checking with us
Packaging Details usual packing or based on customer's requirements
Payment Terms T/T
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Frequency 1300~1500MHz Or Customized Band Width 5/10/20MHz
RF Transmitted Power 10W Power Supply Mold DC 24-36V Supply
Size 340*240*135mm Weight 6.5kg
High Light

1.4GHZ Frequency IP MESH Radio

,

10 W IP MESH Radio

,

Base Station Mesh Network radio
Leave a Message
Product Description

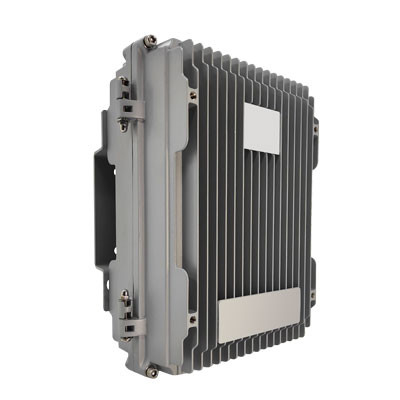

Wireless IP MESH Radio NLOS Ethernet Ground Station for Control Center





1. Quick detail Of IP MESH Radio





1.1 Typical Working frequency: 1.4GHZ



1.2 Bandwidth: 2/5/10MHz



1.3 Transmitting powe: 10 W



1.4 Power supply: DC220V adapter to DC24V



1.5 Transmission Rate: 90Mbps



1.6 NLOS distance: 1-5Km



1.7 LOS distance: over 20KM



1.8 Encryption: AES128/AES256



1.9 Receive sensitivity:-97dbm



2.0 Interface input: IP+WIFI(HDMI/AV can be customized)





2.Description of IP MESH Radio





Base Station Mesh Network radio,It can be fixedly installed on poles, walls and brackets. It is mainly deployed in outdoor fixed points and ship-borne mobile points.



It is waterproof and dustproof, easy to install and simple to operate.The device has high transmission power and covers a long communication distance.



All nodes do not need a central gateway in line of sight or in non line of sight, and all nodes have equal status that is it can be used as a terminal node,a relay node or a central node,without relying on wired communication lines, and can quickly establish a wireless communication network.



The transmission distance can reach more than 20km in the open environment on the ground, 1-5km in the blocking environment (depending on the blocking environment), and more than 50km from air to ground.





3. Specification of IP MESH Radio





System Parameter


Operating frequency 1300~1500MHz
Bandwidth 5.0/10.0/20.0MHz,Flexible and configurable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM(self-adaption)
Transmission capacity Peak rate 52Mbps,The highest optional version can be 100Mbps
RF Transmitted power 10W
Receive Sensitivity -100dBm@5MHz
Video input Support IP network video input and WIFI video access(HDMI/AV need to be customized)
Networking function Networking capable ≥64 nodes
  Networking hops ＞10 hops
  Network topology Centerless network, star network, chain network, mesh network, etc
Encryption mode DES (default) AES128 / AES256 (Optional)
Power supply mold DC 24-36V supply
Power Consumption ≤90W


Equipment interface



Antenna interface N type ×2
GPS interface SMA surface
WIFI interface SMA surface
Ethernet interface Aviation interface


Physical indicators

Dimension ≤340×240×135mm
Equipment Weight ≤6.5kg
Protection degree IP66
Working temperature -40℃～+65℃






4. Application of IP MESH Radio





    Base Station is especially suitable for applications such as long-distance coverage link communication, information aggregation and backhaul, regional coverage support, commanding heights enhanced coverage, and relay transmission nodes. It can play a strong advantage in emergency response, anti-terrorism and anti-riot, rescue and disaster relief, large-scale event security, temporary control and relay transmission.







5. Interface of IP MESH Radio



Wireless IP MESH Radio NLOS Ethernet Ground Station for Control Center 0









6. Accessories of IP MESH Radio



Wireless IP MESH Radio NLOS Ethernet Ground Station for Control Center 1

1 X Mounting brackets

1 X Charger

2 X Feeder

1 X Guarantee card

1 X of Mesh Radio Base Station Radio Host

2 X RF Antenna

1 X WIFI Antenna

1 X Beidou Antenna

1 X Power cable

1 X Hand microphone

1 X Network port air plug







7. FAQ



Q1. Can I have a sample order for IP MESH Radio?

A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A2: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than



Q3. How do you ship the goods and how long does it take to arrive?

A3: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4. How about the payment term?

A4. Our payment term is by T/T 100% payment before production



Q5. Would you support customized?

A5. Some part we support customized,will based on your requirement,pls just check with us.
