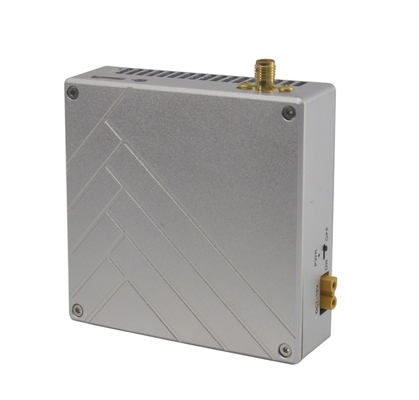

30km 2.4ghz Drone Wireless Video Transmitter TTL AES128 Drone Radio

Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST30HPT
Minimum Order Quantity 1sets
Price contact us
Packaging Details Packing box
Delivery Time in 12 days
Payment Terms T/T
Supply Ability 5000set/month
Product Details
Working Frequency 2.4GHz Transmission Distance 30KM
RF Transmit Power 2W Bandwidth 4/8MHz
Weigth 146g Size 76*73*23mm
High Light

30KM Drone wireless Video Transmitter

,

AES128 Drone wireless Video Transmitter

,

TTL Drone Radio

Leave a Message
Product Description

30KM 2.4GHz Drone wireless Video Transmitter TTL AES128 Drone Radio



1. Fast details of Drone wireless Video Transmitter



Working Temperature: -40℃~+85℃



Support TTL/232/MAVLINK TELEMETRY



Double Serial Ports for bi-directional Data



Video: Video sources self-adaptive(Max 1080P/60), Support HDMI Input/output



Support Video and Duplex Data



100Mbps Ethernet for option



Omni Antenna for Tx and Rx



2. Description of Drone wireless Video Transmitter



      ST30HPT is a mini HD Video and Duplex data transmission COFDM system for UAV.



      It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 30km) with double tx and rx antennas design and low delay(15-30ms) transmission.



      The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay.



      Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.





3. Specification of Drone wireless Video Transmitter



Frequency 2.4GHz(2.402-2.482GHz)
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 2Watts
Power Consumption TX: 19Watts/RX: 6Watts
Distance(air to ground) 30km
Bandwidth 4/8MHz
Video Input/output Interface On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX
Bitrate and channel adjustment mode DIP or SPI2MCU
Antenna 1T1R/ Tx: 4db(Omni Antenna) Rx: 8db(Omni Antenna)/14dbi Directional Antenna
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format AVC adds H.265 feature TS stream
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Ethernet Protocol TCP/UDP
Video Record By software
Transmission Mode point to point
Start-up time 25s
Latency 15-30ms
Transmission Rate 3~5Mbps
Receive Sensitivity

-100dbm@4Mhz

-95dbm@8Mhz

Two-way function Support video and duplex data simultaneously
Data Support TTL/MAVLINK

Interface

(same interface on TX & RX)

1. 1080P 60 HDMI Mini RX x1
2. 100Mbps Ethernet to USB / RJ45 on Windows x1
3. S1/ S2 TTL bidirectional serial port for data/control/playload/MAVLINK/TELEMETRY
4. Power Input (DC7-18V) x1
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/double aluminum alloy shell with waterproof design
Power supply DC 7- 18V (DC 12V advised)
Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C

Dimension Tx/ Rx: 76×73×23mm
Weight Tx/ Rx: 146g





4. Device Application of Drone wireless Video Transmitter



ST30HPT can be reach real distance(from ground to air) 30KM,with ligth weight and small size,verysuitable for Drone.



30km 2.4ghz Drone Wireless Video Transmitter TTL AES128 Drone Radio 0



5. Size of the Drone wireless Video Transmitter

30km 2.4ghz Drone Wireless Video Transmitter TTL AES128 Drone Radio 1





6. FAQ



Q1. Can I have a sample order for Drone wireless Video Transmitter?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than



Q3. Do you have any MOQ limit for COFDM Transmitter order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. Is it OK to print my logo on COFDM Transmitter product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
