High Range Wireless COFDM Transmitter And Receiver ST9500DBH 1 Watts Robot UGV Mobile

Place of Origin China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500DBH
Minimum Order Quantity 1 set
Price USD 3000-5000 per set
Packaging Details Normal packing
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 set per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model ST9500DBH Weight 1.8KG
Range 2-8km NLOS Resolution 1080P
Latency 200ms Encryption AES256

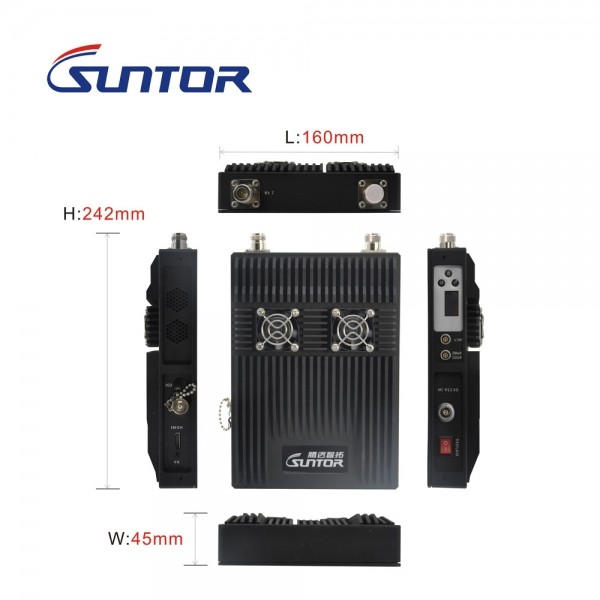

RF Power 5Watts/37dBm Dimension 242×160×45MM
Video Input High Definition Multimedia Interface/SDI & CVBS Working Temperature -20℃~65℃
Frequency 300-860MHz(Acceptable Customized)
High Light

cofdm hd wireless transmitter


wireless hd video transmitter

Leave a Message
Product Description

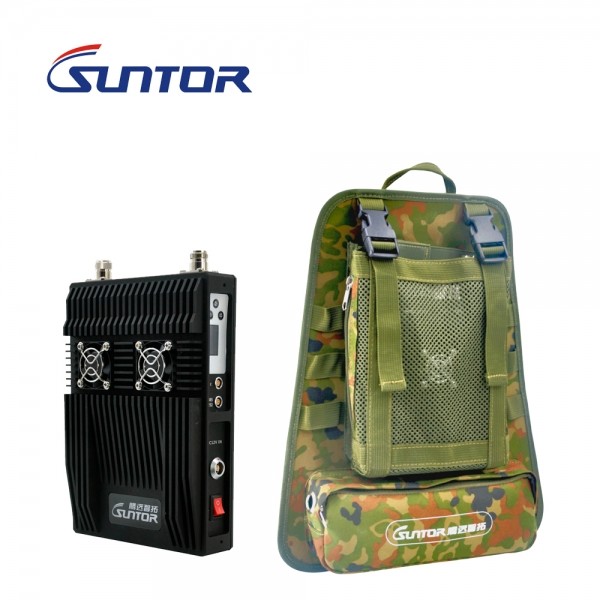

The ST9500DBH transmitter is a body-worn dual audio COFDM video transmitter from SUNTOR, it supports two way voice intercom, designed specifically for government surveillance, law enforcement, border control, internal security, critical infrastructure protection, command, emergency rescue, maritime surveillance video transmission applications.



1.High quality digital video processing , H.264 coding and encoding;
2.Real-time transmission system, delay time for end-to-end is less than150ms;
3.Great action ability, can transmit images voice stably in the condition of high speed movement and multi-path interference.
4.Strong NLOS (non-line of sight) transmission capacity;
5.2km-8km Long distance transmission;
6.Spatial diversity reception ability, support high-speed mobile transmission.
7.Stable signals, image clear and stable, has no mosaic or drag phenomenon.
8.Support multi- video sources, standard definition & high definition compatible.
9.Removable battery, ensure the long working time.

COFDM duplex mode Bodyworn wireless video transmitter receiver long range
Frequency/Video 300-860MHz
Frequency/Data 200-400 MHz/(option)
Constellation QPSK,16QAM
RF Power 10W
Voltage DC12V
Modulation COFDM
Bandwidth 2/4/6/8 MHz(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8
Type Bodyworn
Guard Interval 1/32,1/16,1/8,1/4
AV Input (BNC) Audio:Analog stereo left and right channels
Video: for High Definition Multimedia Interface/SDI/ analog camera connection
Video H.264
Data encryption AES 256 bits
RF Interface N(F)
Video Format PAL/NTSC(auto adaptation)
Model ST9500DBH
Data interface 1 ports,RS485/RS232/TTL @1200/2400/9600/19200pbs
Flatness Full band≤2dB, 8MHz≤0.5dB
Carrier 2K,8K
Video resolution 1080P
Case Material Aluminum alloy, Rain-proof
Work environment -30~70℃
Size 200*130*60mm
Weight 2kg
