Real Time Wireless Mesh Network Products Video Surveillance System For NLOS 2x2 MIMO Radios

Basic Information
Place of Origin: CHINA
Brand Name: SUNTOR
Certification: CE SGS
Model Number: ST9602MD
Minimum Order Quantity: 1sets
Price: Negotiation
Packaging Details: Aircasing
Delivery Time: 5-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sets/month
Contact Now
Detail Information
Bandwidth: 2Watts Rx Sensitivity: -92dBm
Wireless Network: Support 42 Node Max Wifi: Support WMM/802.11e QoS
Dimension: 220mm*155mm*52mm Indicator: 1*Ethernet Status Indicator Light
Temperature:Working: -20℃~+70℃ MIMO: 2x2

Product Description

Real-Time Video Surveillance System 2km for NLOS 2x2 MIMO Radios



ST9602MD Specs.pdf

ST9602MD User Manual.pdf



Real Time Wireless Mesh Network Products Video Surveillance System For NLOS 2x2 MIMO Radios



Real Time Wireless Mesh Network Products Video Surveillance System For NLOS 2x2 MIMO Radios

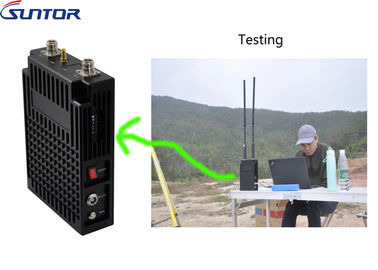

ST9602MD is A 2x2 MIMO-based Ethernet radio, ST9602MD is designed for mission-critical video, voice, and data.Can be used to create point-to-point, point-to-multipoint, mesh, and mobility networks Up to 80 Mbps usable throughput for outdoor Ethernet radio links.MPLS transmission protocol with intelligent QoS.



Advantage



1.IP connectivity for additional backhaul offering beyond mesh
2.Low latency IP communication
3.GPS transmitter
4.Built in encryption AES256 available subject to export control



Equipment Characteristics
Frequency range 570-590MHz(350MHz-1400MHz on request)
Channel bandwidth 5M/10M/20MHz(adjustable)
Transmission power 33dBm
Constellation modulation BPSK/QPSK/16-QAM/64-QAM
Forward error correction 1/2, 2/3, 3/4, 5/6(option)
Digital sensitivity Maximum -102dBm
Transmission rate Maximum 80Mbps
Networking capability Ad-hoc network 16 hop, nodes more than 42 units
Data characteristics
RF interface 2.4G WIFI SMA*1, 570-590MHz N type *2
Network interface 10/100(self-adaption)
Serial Interface RS232(115200bps adjustable)
Expansion interface debug uart*1 (built-in)
Wireless Network ESSID/BSSID Configurable
Encryption AES 256
Electrical characteristics
Voltage DC 9-28V
Current Standby Current 500mA
Max work Current 3A
Power dissipation 10W
Physical characteristics
Working temperature -20~+70℃
Storage temperature -30℃~ +90℃
Measurement 220mm*155mm*52mm
Weight 1.4KG



Package

1 x ST9602MD,
2 x Manpack Antenna,
1 x Battery(12V/21Ah),
1 x Manpack Harness,
1 x Power Cable,
1 x RS232 Data Cable,
1 x Battery Charger
1 x Wifi Antenna
1 x Hand Grip
