UGV / UAV Wireless Audio Video Transmitter Two Way Communication Mesh Video Data Receiver

Place of Origin China
Brand Name SUNTOR
Certification CE, FCC
Model Number ST9602MD
Minimum Order Quantity 1Set
Price Negotiation
Packaging Details Aircasing
Delivery Time 1-2 Weeks
Payment Terms T/T, Western Union
Supply Ability 5000 Sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Frequency 2412-2462MHz(Wifi) Bandwidth 2Watts
Rx Sensitivity -90dBm(Wifi) Duplex Mode TDD
Wireless Network Support 42 Node Max Antenna 1*Wifi SMA Antenna Interface
Serial Interface Bit Rate Up To 115200bps (9600-115200bps Adjustable) Indicator 1*System States Indicator Light
Highlight

cofdm hd wireless transmitter

,

wireless hd video transmitter

,

2x2 mimo based ethernet radio

Leave a Message
Product Description

UGV And UAV Two Way Communication Mesh Video Data Transmitter and Receiver



ST9602MD Specs.pdf

ST9602MD User Manual.pdf

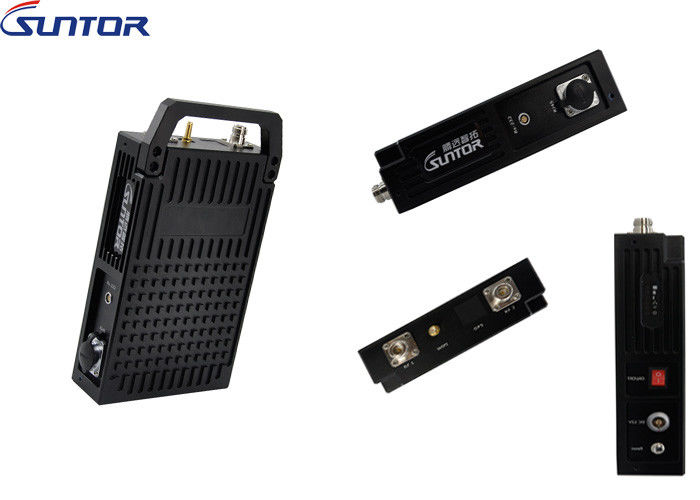

UGV / UAV Wireless Audio Video Transmitter Two Way Communication Mesh Video Data Receiver 0



Introduction for ST9602MD



A 2x2 MIMO-based Ethernet radio, ST9602MD is designed for mission-critical video, voice, and data.Can be used to create point-to-point, point-to-multipoint, mesh, and mobility networks Up to 80 Mbps usable throughput for outdoor Ethernet radio links.MPLS transmission protocol with intelligent QoS.

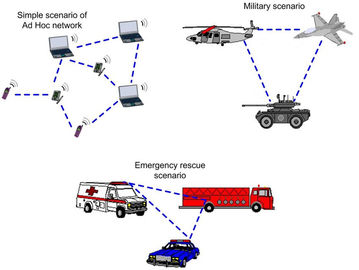

UGV / UAV Wireless Audio Video Transmitter Two Way Communication Mesh Video Data Receiver 1



Main Features

1.Tri Band capability offered in L-band (1.559-1.577GHz), S-band (2.412-2.462GHz) and UHF-band (300-900MHz)
2.Self-forming, self-healing Mesh architecture
3.Ideal for use for wide area coverage & multi-hop, mobile applications such as robotics and city NLOS wireless video transmission

Model Characteristics
Frequency range 570~590MHz/1400~1420MHz
Channel bandwidth 5M/10M/20MHz(adjustable)
Transmission power 33dBm
Modulation Support BPSK/QPSK/16-QAM/64-QAM
Forward error correction 1/2, 2/3, 3/4, 5/6(option)
Digital sensitivity Maximum -102dBm
Transmission rate Maximum 80Mbps
Networking capability Ad-hoc network 16 hop, nodes more than 42 units
Data characteristics
MIMO 2*2
Network interface 10/100(self-adaption)
Serial Interface RS232(115200bps adjustable)
Expansion interface debug uart*1 (built-in)
Network connect time Uptime approx. 56s, connected standby less than 100ms
Encryption AES 256
Electrical characteristics
Voltage DC 9-28V
Current Standby Current 500mA
Max work Current 3A
Power dissipation Average power consumption 10W
Physical characteristics
Working temperature -20~+70℃
Storage temperature -30℃~ +90℃
Measurement 220mm*155mm*52mm
Weight 1.4KG



Package

1 x ST9602MD,
2 x Manpack Antenna,
1 x Battery(12V/21Ah),
1 x Manpack Harness,
1 x Power Cable,
1 x RS232 Data Cable,
1 x Battery Charger
1 x Wifi Antenna
1 x Hand Grip
