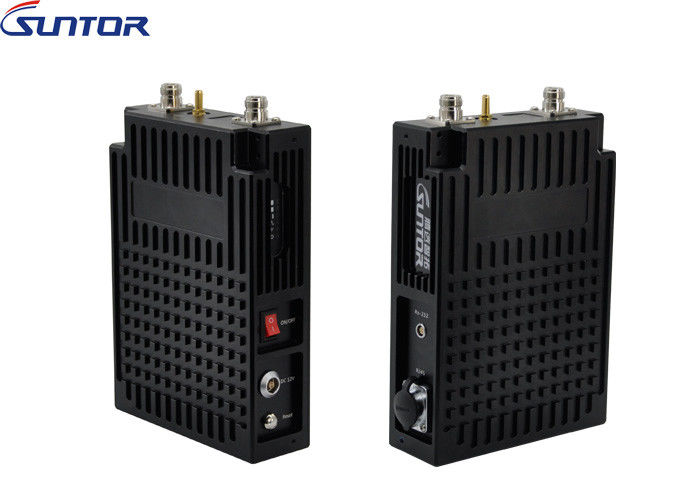

Long Range Wireless Mesh Network Products Air To Ground Network Transmitter 5/10/20MHz

Basic Information
Place of Origin: CHINA
Brand Name: SUNTOR
Model Number: ST9602MD
Minimum Order Quantity: 1PAIR
Packaging Details: Carton
Delivery Time: 10-15work days
Payment Terms: T/T, Western Union
Supply Ability: 1000set/month
Contact Now
Detail Information
Working Frequency: 570~590MHz/1400~1420MHz 500~1400MHz(On Request) Bandwidth: 5/10/20MHz
Wired Network: IP Address Configurable Rx Sensitivity: -92dBm
Upstream And Downstream Bandwidth: Two-way Bandwidth Up To 80Mbps Key: 1*Reset Button
Power: DC9-28V Power Consumption: Working Voltage: DC12V Standby Current 500mA     Max Work Current 3A

Product Description

True and most advanced mesh wireless long range air to ground network transmitter



Datasheet

Usermanual



Introduction:



Suntor's highly flexible IP Mesh technology means that data can be exchanged between wireless Nodes in point-to-point or more commonly, point-to-multipoint configurations. A truly mobile system – one which will deliver in environments too tough for other radio solutions to cope with. Unlike traditional wireless options, the Suntor's IP Mesh continues to readjust itself as Nodes join and leave the mesh or move relative to one another. Through DTC’s proprietary variable flow rate algorithm and “Interlink” mode, one can use other IP bearers to form a flat but geographically wide area mesh network.



Feartures:



  • RF Frequency of operation in the UHF, S-Band
  • TDD Modulation
  • Mesh configuration, Ad-Hoc, selflink freely
  • On line node up to 24 node
  • Plug and Play
  • A rapidly deployed video surveillance solution for covert and overt operations
  • Wifi connection, easy to get datas

Technical Parameters



Working Frequency

570~590MHz/1400~1420MHz

500~1400MHz(On request)

Bootloader U-boot
2412-2462MHz(Wifi) Linux 3.18.19
1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz Subnet Mask Configurable
20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 2Watts Bandwidth Adjustable
0.2W(Wifi) RF Power Adjustable
Rx Sensitivity -92dBm Support Adhoc
Support 42 node max
-90dBm(Wifi) ESSID/BSSID Configurable
Duplex Mode TDD Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps Support RTS/CTS Setting
40Mbps(Wifi) Connection Status Display
Antenna 2*N type Antenna Interface Wifi Working Frequency Adjustable
1*Wifi SMA Antenna Interface RF Power Adjustable
1*GPS SMA Antenna Interface Support AP mode
Ethernet 1*100Mbps Ethernet Interface ESSID Configurable
Serial Interface Bit rate upto 115200bps (9600-115200bps Adjustable)
Indicator 1*System States Indicator Light Supports adaptive rate mode
1*Ethernet Status Indicator Light Support WMM/802.11e QoS
1*Wifi States Indicator Light Support Distance Optimization
3*Network Signal Strength Indicator Light Support RTS/CTS Setting
Key 1*Reset Button Support MAC address filtering
Power DC9-28V Connection Status Display
Power Consumption

Working Voltage: DC12V

Standby Current 500mA

Max work Current 3A

WPA/WPA2/WEP Encryption
Battery 12V/21Ah Hidden ESSID
Battery Endurance 4hours(full charge) Support Network transparent transmission GPS original positioning data
Dimension 220mm*155mm*52mm Support web page management






Application:



Long Range Wireless Mesh Network Products Air To Ground Network Transmitter 5/10/20MHz
