Two Way Communication COFDM Transmitter MIMO Radios TDD COFDM IP Mesh Video Audio Data Ethernet Transceiver

  • Two Way Communication COFDM Transmitter MIMO Radios TDD COFDM IP Mesh Video Audio Data Ethernet Transceiver
  • Two Way Communication COFDM Transmitter MIMO Radios TDD COFDM IP Mesh Video Audio Data Ethernet Transceiver
Place of Origin CHINA
Brand Name SUNTOR
Certification CE, FCC
Model Number ST9602MD
Minimum Order Quantity 1Set
Price Negotiation
Packaging Details Aircasing
Delivery Time 1-2weeks
Supply Ability 500sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Waterproof IP66
MESH 2*2 MIMO RF Power 2watts
Antenna 2*N-Type Female Encryption AES256
Power DC12V Power Consumption 25Watts
High Light

cofdm hd wireless transmitter

,

wireless hd video transmitter
Leave a Message
Product Description

MIMO Radios TDD COFDM IP Mesh Video + Audio + data Ethernet Transceiver Two-way Communication



Data Sheet



User Manual



Key features



  • Ad-Hoc MESH Network
  • Rapidly Deployable Wireless Surveillance System
  • Robust Reliable Wireless IP network
  • Ruggedised Design
  • Instant Ad-Hoc Networks
  • Non Line of Sight
  • Operates Between Fast Moving Vehicles
  • High Data Rates Suitable for HD Video

Introduction



SUNTOR’s Mesh technology provides proven high-capacity multi-domain IP connectivity in challenging environments that sits seamlessly alongside existing public or private infrastructure. The ability to project a significant bi-directional capability into areas unreachable by existing technologies is tremendously powerful and can play a pivotal role in surveillance operations. SUNTOR Mesh is a proven and flexible MANET (Mobile AdHoc Networking) solution which has successfully been deployed in the most adverse environments

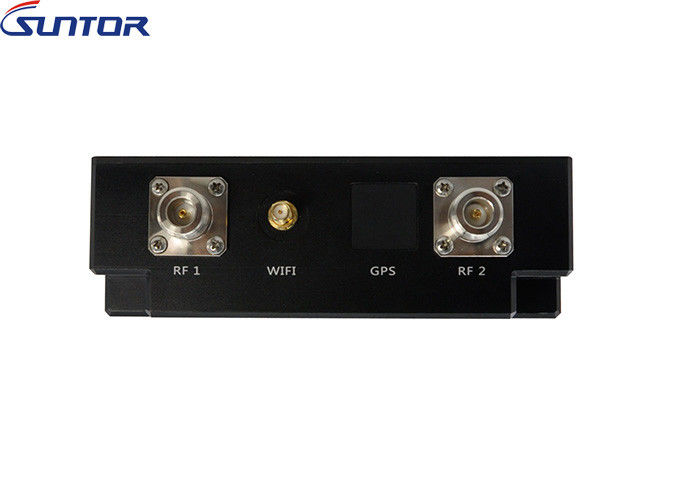

Connectors
Camera Standard RJ45 Interface
RF connectors N-Type female
Battery
Weight 1.6kg
Voltage DC12V
Duration up to 4 hours
Dimension 245*52*75mm
Fixing Clip in
RF Interfaces
Antenna 1 TDMA transmit and receive
RF frequency UHF, L-Band, S-Band
Frequency tuning 1MHz
Modulation COFDM
Subcarrier modulation QPSK, 16 QAM,
64 QAM (adaptive)
Output power +33dBm (2W) Max
Bandwidth 5 to 20 MHz
Bandwidth tuning 1 MHz
MESH capacity Up to 87 Mbps
Power
DC input DC9-28V
Power consumption 26Watts
System Control
Unit power On/off Button
RF power Through web interface and button
Node control Through web interface
Frequency control Through web interface
Encryption control Through web interface
Mesh
Number of nodes Up to 42
MESH configuration Ad-hoc, P2MP, P2P
Routing Smart routing
Physical
Dimensions 220mm*155mm*52mm
Weight (excl. battery) 1.2kg
Weight (incl. battery) 2.8kg
Enclosure IP66
Mount Free standing/tripod mount
Temperature -20℃~+70℃
Operating humidity 0 to 90%
Accessories & Compatible Products
Additional Battery
Ethernet Interface Cable
Battery Charger
Antenna*2
ST9602MD
Package Box
Data Cable
Manpack Harness
Power Cable
wifi antenna
