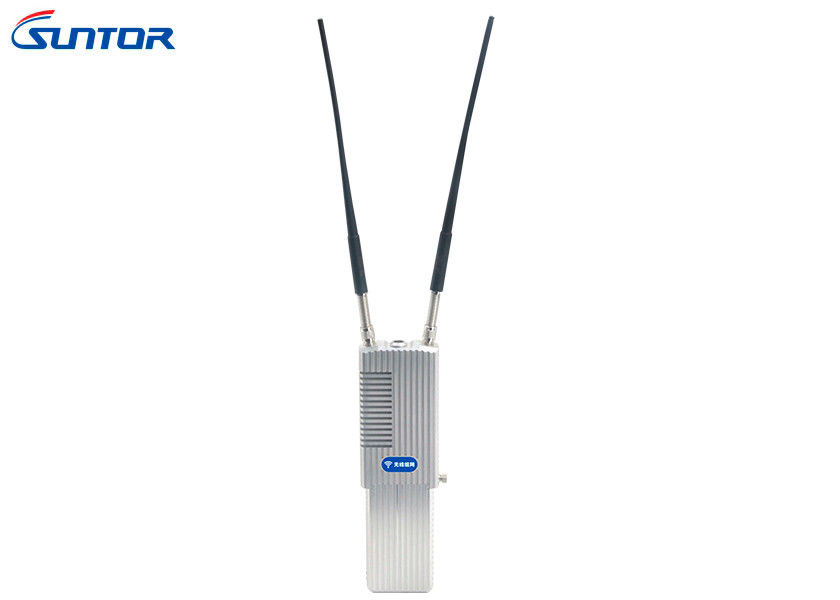

TDD - OFDM Duplex Mode Wireless Ip Transmitter Easy Connection For Cameras

  • TDD - OFDM Duplex Mode Wireless Ip Transmitter Easy Connection For Cameras
Place of Origin Shenzhen, China
Certification FCC, CE, RoHS
Model Number ST9601MS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Frequency 570-1443MHz Bandwidth 5/10/20MHz
RF Power 0.5-1W Receive Sensitivity -92dBm
Duplex Mode TDD Serial Interface RS232
Power Supply DC9-28V Battery Endurance 2hours
High Light

mesh wifi equipment

,

mesh network module
Leave a Message
Product Description

1W IP Mesh TDD-OFDM Transceiver Data Radio Wireless IP Transmitter & Receiver



ST9601MS Specs.pdf



Description:
Suntor OFDM IP Mesh offers true networked integration of video, audio and GPS, with seamless transfer of video even when the mesh is reconfiguring to a different shape.

The robust, self-healing mesh architecture makes the product ideal for use in mobile surveillance applications, command and control, or advanced robotics.



TDD-OFDM IP Mesh Features:

  • IP interface as standard for easy connection of cameras, sensors and data
  • GPS and/or RS232 interface and mapping software available
  • Mesh allows range extension by making chains, or easy bidirectional relays
  • Composite video and audio output options for connection to recorders
  • Easy control of cameras for PTZ
  • Encryption for security with AES128/256
  • IP Mesh capability
  • Automatic Adaptive modulation



Technical Parameters



Working Frequency 570-1443MHz Bootloader U-boot
  2412-2462MHz(Wifi) Linux 3.18.19
  1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz   Subnet Mask Configurable
  20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 0.5-1W   Bandwidth Adjustable
  0.2W(Wifi)   RF Power Adjustable
Receive Sensitivity -92dBm   Support Adhoc
  -90dBm(Wifi)   ESSID/BSSID Configurable
Duplex Mode TDD   Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity   Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps   Support RTS/CTS Setting
  40Mbps(Wifi)   Connection Status Display



Custom-designed for the security and markets, the IP Mesh radios employ the unique Suntor TDD-OFDM modulation scheme and therefore have excellent RF penetration and performance in the presence of multipath.


The mesh radios can provide over 8 Mb/s of IP data (data rate depends on mode, number of nodes and range between nodes), and this can be symmetric to match network requirements. Diversity gives protection against fading, and there are built-in guard intervals and error correction.
Security of the entire mesh network can be ensured by the use of the optional AES128 or AES256 encryption. Control of the whole deployed mesh is achieved using a comprehensive web browser application with a built-in user-loaded mapping facility and PTZ controls.
