5 Watt COFDM Wireless Transmitter

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range UHF 300MHz~860MHz
RF Power 5W Video Port High Definition Multimedia Interface/ SDI/ AV
Transmission Range LOS: 5-10km, NLOS: 0.5-2km Power Input DC12V 3.5A
Highlight

5 Watt COFDM Wireless Transmitter

,

DC12V COFDM Wireless Transmitter

,

5W Wireless Video Camera Transmitter

Leave a Message
Product Description

5 Watt COFDM Wireless Transmitter

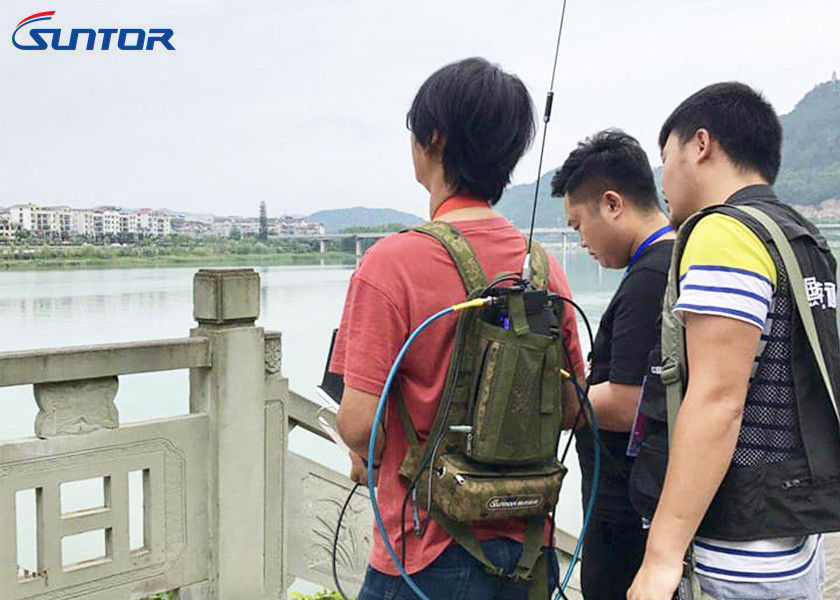

Manpack RF link microwave COFDM wireless video camera transmitter



ST9500T Specs Sheet.pdf

Using effect: https://youtu.be/bYKR3BQdw9s



Introduction:

  • This backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission when in the condition of heavy obstacles,such as many building barriers,severe electromagnetic interference, remote mountain town or other harsh environments, which cause command vehicle can’t directly reach the site and forced to parked in vicinity.
  • At the front-end personnel, scouts, firefighters,rescue personnel or television interview personnel using small size,backpack or Buckle format transmitter transmit the live signals to the rear command vehicle.Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.



Features:

  • BNC video interface, 1280P*720P high quality video
  • Strong safety with AES 128 bit encryption
  • Integrative design of back-pack, 20A battery, and robust transmitter
  • Compact design, low consumption and low latency
  • Support NLOS and fast moving environments but stable signals transmission
  • Easy operation by digital panel configuration, and LCD display
  • Designed in -grade level
  • Support transmitter function customized (including video interface, RF power, frequency, battery volume, add data & two way audio function etc.)



Application:
Beyond Visual Line of Sight (BVLOS) UAV IndustriesBeyond Visual Line of Sight (BVLOS) UAV Industries, patrol mission,long range wireless video broadcast.



TX Parameters

Frequnecy Video: 300MHz~860MHz
Power 37dBm (5Watts)
Video Coding H.264
Video Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Latency 40-80ms
Power Input DC12V 3.5A
Size 140*45*215mm
Net Weight 1.2kg
