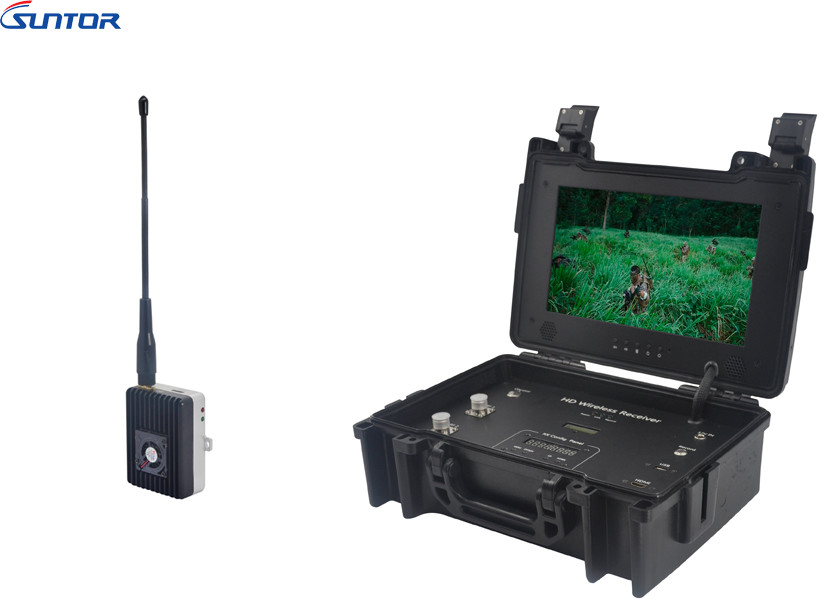

EOD Robot Video COFDM Transmitter NLOS 300meters Transmission System

  • EOD Robot Video COFDM Transmitter NLOS 300meters Transmission System
  • EOD Robot Video COFDM Transmitter NLOS 300meters Transmission System
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500MH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Encryption AES256
Tx Weight 130g Rx Battery Built In Lithium Battery
Battery Endurance 3-4hours Latency 200ms
Video Input High Definition Multimedia Interface And CVBS Video Record Locally Recording In Receiver
High Light

cofdm hd wireless transmitter

,

wireless hd video transmitter
Leave a Message
Product Description

EOD Robot Video Wireless NLOS 300meters transmission system





Data Sheet

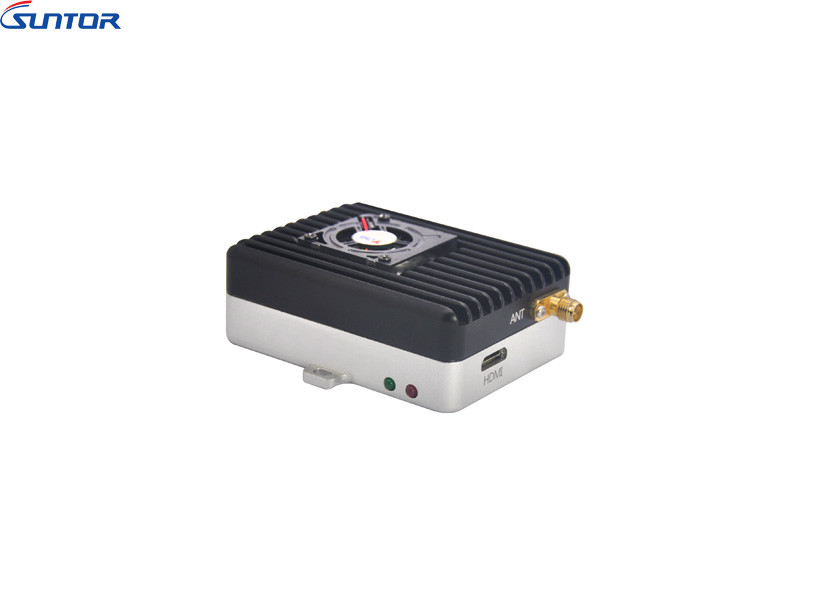

The ST9500MH unit is ideal for body-worn or other mobile applications where it is necessary to connect to a High Definition Multimedia Interface or CVBS Camera and be able to transfer HD or SD video. The unit can be supplied with an external rechargeable battery which provides upto 3-4hrs of operation.





Features



• Compact design
• Easily integrated into existing or new equipment
• Range 200M+NLOS using dual Rx antennas
• Point to Point/Multipoint/Repeater operating modes
• Hardware-based 256-bit AES encryption
• Packet prioritisation
• Rechargeable battery support
• RSSI indication mode
• Low power consumption
• Direct connection for High Definition Multimedia Interface/SDI and CVBS cameras
• Automatic config and connect





Applications



High performance video assist & broadcast
HD camera links for UAV/UGV/AUV
High end missions



Specifications
RF Output 1W (+30 dBm)
RF Channels 16, configurable through PC GUI
Video SDI/High Definition Multimedia Interface formats auto detected; HD -1080p60, 1080p30, 1080p25, 1080i30, 1080i25, 720p60, 1080Psf24, 1080Psf23.97 and 1080p/25Psf; SD- 480i/30 and 576i/25
CVBS: PAL/NTSC
Encoding H.264 (MPEG4, Part 10) AVC
Audio Embedded audio in High Definition Multimedia Interface/SDI/HD-SDI input or stereo line-level analog audio input (600bal)
Inputs BNC (75 ohm) for HD-SDI/SDI and Composite Video through 4 pin LEMO power connector
User Data RS232 interface, 1200-115K Baud, set through GUI (option –D)
User Interface Serial Com port, HD/Composite SD selection, Audio source selection & Video presence indicator
Power 9 – 20V DC input
Size 75*55*35mm
Weight 0.3 lbs (130 gms)



Package List





Item Qty
Transmitter 1Unit
Receiver 1Unit
Tx Antenna 1Unit
Rx Antenna 1Unit
High Definition Multimedia Interface Cable 2Pcs
CVBS Cable 2Pcs
SDI Cable 1Pcs
Antenna Cable 2Pcs
Power Cable 2Pcs
Package Box 1Unit
