20km NLOS excavator Wireless COFDM Transmitter for front pilot view systems

  • 20km NLOS excavator Wireless COFDM Transmitter for front pilot view systems
  • 20km NLOS excavator Wireless COFDM Transmitter for front pilot view systems
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9520CZ-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
RF Power 20-40watts Application Vehicle-mounted
Transmission Environment NLOS/LOS Frequency 160-860Mhz
Video Res Full HD 1080P/60fps Video Input High Definition Multimedia Interface/SDI
Atenna Dual Antenna Baud Rate Upto 115200bps
High Light

cofdm hd wireless transmitter

,

wireless hd video transmitter
Leave a Message
Product Description

20km NLOS excavator Wireless communication system for front pilot view systems for construction machinery





Introduction



ST9520CZH is a digital wireless video transmitter, specially dsigned for vehicle-mounted application, could transmit high quality video signal in city or on sea where appears multipath effect always. It can realise wide signal coverage without directional antenna depend on its excellent "Diffract" ability. It can simultaneously transmit one way image, one way Full-duplex bidirectional audio and data.





Main Features

  • Transmitting one way high-quality(DVD) video, bidirectional audio
  • HD 1080P/I
  • Transmitting two way RS232/RS485 Data
  • With GPS/Compass satellite positioning function(Optional)
  • Realise high quality real-time video transmission while carrier speed is up to 280KM/Hr
  • Encrypted Video, Audio, Data transmission.
  • Frequency: 160MHz~860Mhz
  • Frequency band is adjustable by ±10MHz
  • Power is adjustable (20W~40W)
  • High sensitivity, up to-103dBm(QPSK @8MHz)
  • Excellent diffract ability.
  • Anti-multipath interference, Suitable for ship-to-ship, ship-to shore, ship-to-aircraft transmission

20km NLOS excavator Wireless COFDM Transmitter for front pilot view systems 0



Specification
Frequency 227-860Mhz
Bandwidth 2/4/6/8 MHz optional
Compression H.264/MPEG2
Video-in High Definition Multimedia Interface/SDI/PAL/NTSC
Audio-in left and right channels(stereo)
Video Quality Full HD 1080P/60fps, D1, 720×576 pixels(DVD), 25fps
Modulation TDD-COFDM, QPSK/16QAM
FEC 1/2, 2/3, 3/4, 5/6, 7/8(optional)
Guard interval 1/32, 1/16, 1/8, 1/4(optional)
Encryption AES, 128-Bit key, Customized
Output Power Max 40W, Customised for higher power
Power Adjustment 20W ~ 40W, stepping is 1dB
Carrier Moving Speed Adapt up to 280KM/Hr
Antenna Interface 50Ω, N-type female
Video and audio Interface RCA@75 Ω unbalanced
Data Interface Aviation
Auxiliary data Two way RS232, baud rate 150bps ~115200bps(optional)
Power supply AC220V/DC12V
Power consumption <50W
Working temperature -20℃~60℃(-40℃~+80℃ standard)
Storage Temperature -40°C~+80°C
Humidity <95%,non-condensing

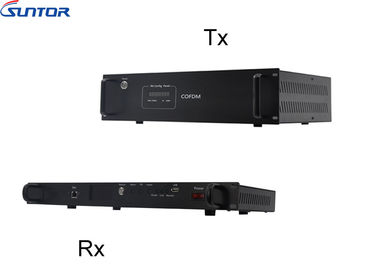

Dimension Tx: 2U, 19inch crate/Rx: 1U
Weight Tx: 5Kg/Rx: 4kg



20km NLOS excavator Wireless COFDM Transmitter for front pilot view systems 1

Our Services
1. Lifelong maintainance
2. 24 hour technical support
3. Strong R&D capability; Customized project is welcomed
4. High quality product with competitive price, short delivery time and responsible after-sale service


Warranty
Twelve months free warranty for equipment
Three months for components
Replacement parts for free
