Pocket high encryption nlos COFDM wireless video transmitter 300-860MHz

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500MH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 3-5 Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300-860MHz
RF Power 1W NLOS Range 200-500 Meters
Video Port High Definition Multimedia Interface/SDI/CVBS Resolution FHD 1080P
High Light

wireless video camera transmitter

,

cctv camera wireless transmitter and receiver

,

Pocket COFDM transmitter

Leave a Message
Product Description

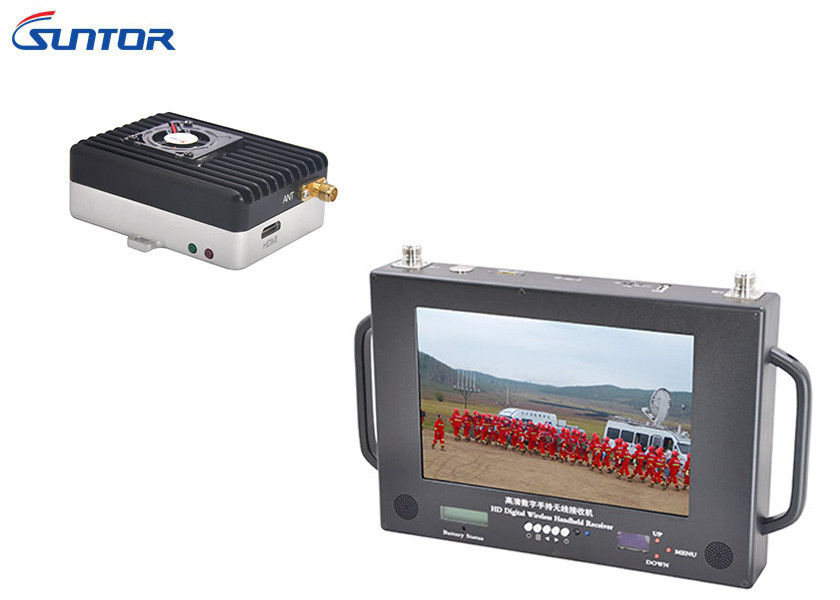

Pocket carrying fan cooling high encryption nlos wireless video transmitter for Legal evidence



ST9500MH Specs Sheet.pdf





This mobile video transmitter supports High Definition Multimedia Interface/ SDI/ CVBS input. The processor collects video signal, using efficient H.264 compression and COFDM technology. It has advantages of small size, light weight, low power consumption, long distance, strong anti-interference and good security. It is a high integrated mobile ZLOS digital video transmission system, independently developed by Suntor.



Main features:

  • Modulation: COFDM
  • Frequency: UHF 300-860MHz
  • Transmit power: 1W
  • Antenna type: External omni antenna
  • Video input: High Definition Multimedia Interface/SDI/AV
  • Resolution: HD1080P
  • NLOS: 200-500 meters
  • LOS: 5km+
  • Power supply: Lithium Battery
  • Function: Video & audio signal
  • Weight: Tx:130g Rx: 2.2kg



Tx Parameters

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 30dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface
Version High Definition Multimedia Interface mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 130g
Dimension 75*55*35mm



Application: Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security etc.
