Fire fighting robot NLOS 500 meters wireless COFDM video surveillance transmitter

  • Fire fighting robot NLOS 500 meters wireless COFDM video surveillance transmitter
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500MH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 3-5 Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300-860MHz
RF Power 1W Video Port High Definition Multimedia Interface/SDI/CVBS
NLOS Range 200-500 Meters Weight 130g
High Light

wireless hd transmitter

,

wireless hdmi video transmitter
Leave a Message
Product Description

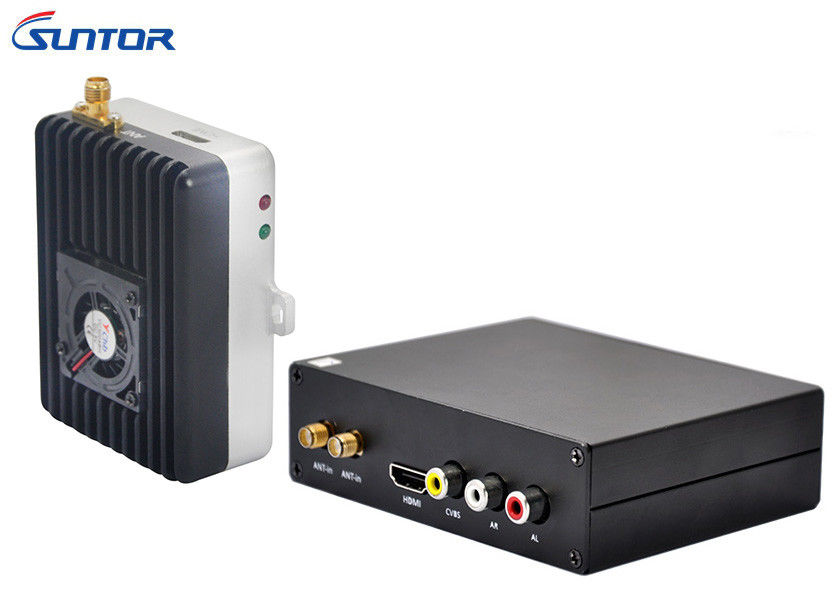

Fire fighting robot NLOS 500 meters wireless COFDM video surveillance transmitter



ST9500MH Specs Sheet.pdf



Using effect: https://youtu.be/8YUxyS_8R4Y



Suntor ST9500MH is a new wireless transmission system special designed for UAV, UGV and robot. Advanced modulation technique and special design make it an ideal choice for remote wireless transmission of UAV, UGV, helicopter, fixed wing aircraft, racing car and other special vehichles.



Main features:

  • Modulation: COFDM
  • Frequency: UHF 300-860MHz
  • Transmit power: 1W
  • Antenna type: External omni antenna
  • Video input: High Definition Multimedia Interface/SDI/AV
  • Resolution: HD1080P
  • NLOS: 200-500 meters
  • LOS: 5km+
  • Power supply: Lithium Battery
  • Function: Video & audio signal
  • Weight: Tx:130g Rx: 248g



Tx Parameters

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 30dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface
Version High Definition Multimedia Interface mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 130g
Dimension 75*55*35mm



Application:Traffic Management, Technical Support Units, Special Forces, Command and Control Posts, Airport, Border Control, Major Incident Support etc.
