PB33 Portable Command & Dispatch Platform Box For Outdoor Application

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: PB33

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

Command Dispatch Platform Box

,

Portable Command Dispatch Box

,

IP MESH command center

Frequency Rang:
1438MHz(200MHz-1.5G Can Be Customizable)
Operating Voltage:
DC 14.8V
Encryption Mode:
AES 256
Battery Capacity:
10Ah
Operating Temperature:
20~+55℃
Overall Dimension:
52.5*43.7*21.3cm
Frequency Rang:
1438MHz(200MHz-1.5G Can Be Customizable)
Operating Voltage:
DC 14.8V
Encryption Mode:
AES 256
Battery Capacity:
10Ah
Operating Temperature:
20~+55℃
Overall Dimension:
52.5*43.7*21.3cm
Description
PB33 Portable Command & Dispatch Platform Box For Outdoor Application

10km~20km Unmanned Vehicle Signal Channel Video Audio Signal Receiver and Transmitter



PB33 Portable Command & Dispatch Platform Box Spec...

Product Introduction



PB33 is the wireless IP MESH command center station, which is designed for outdoor application like in urban coverage, drones video surveillance, tactical mission deploy, etc..
The PB33 COFDM IP MESH is integrated with tablet computer for wireless mesh network system operation and video monitoring, and MESH network topology.

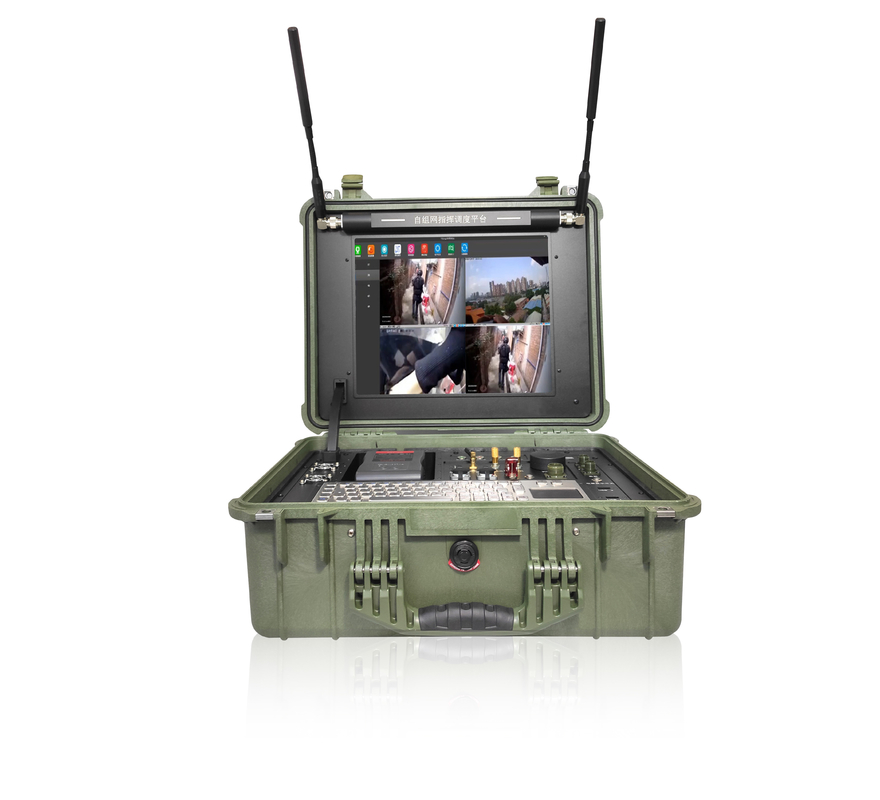

PB33 Portable Command & Dispatch Platform Box For Outdoor Application 0

Features

  1. Operating frequency 1438MHz (200MHz-1.5GHz can be customized).
  2. Maximum code stream up to 80Mbps.
  3. Line-of-sight transmission distance 10-20 kilometers.
  4. Transparent IP data transmission.
  5. Support two-way intercom.
  6. Adopts self-developed technologies such as COFDM waveform, efficient channel coding and decoding, and multi-hop self-organizing network protocol.
  7. Independent of the base station, efficiently and quickly form a centerless wireless broadband network.
  8. With data and video output ports, real-time storage and other functions can be realized.
  9. With a 17-inch display for real-time viewing of the video display.
  10. External power supply, and built-in battery power supply, to ensure that the power supply for about 3 hours.

PB33 Portable Command & Dispatch Platform Box For Outdoor Application 1



Application



Realize the network, audio and video, data information interconnection between the emergency scene and the temporary command center, and realize on-site command and dispatch, remote command and dispatch, video conference, private network access, public network access and other functions. To provide a strong guarantee for emergency command and information reporting. The command box has 4G routing function, which can connect to the central command and dispatching platform, and truly realize the multi-level command and dispatching application of local linkage and central interaction.



Product Specification
Operating System WIN10/64-bit
CPU Intel I7 processor
Display Screen 17 inch HD bright screen
Memory 16G
Storage Mode 240G solid state drive
Mode of operation Embedded mouse and keyboard
Transmission Characteristic
Frequency Rang 1438MHz(200MHz-1.5G customizable
Channel Bandwidth 5M/10M/20M (adjustable
Transmitted Power Max 33dBm
Constellation Modulation (BPSK/QPSK/16-QAM (Adaptive))
Forward error correcting code 1/2, 2/3, 3/4, 5/6 Optional
Digital Sensitivity The highest -93dBm@5MHz
Transmission Rate Peak rates are up to 70Mbps
Networking Capability The number of chain hops in an AD hoc network is more than 9. The number of nodes in an AD hoc network is not less than 32
Data Characteristics
Rf Interface N*2,SMA*1
Video Display 17 inch HD bright screen
Cable Interface RJ45 Waterproof port *2
Intercom Interface 6-core navigational plug
Data Interface 3-core navigational plug (spare)
Power Interface 2-core navigational plug
4G Function all-netcom
Signal Light Five signal lights
Power switch Flip the self-locking switch
Encryption Mode AES 256
Electrical Characteristics
Operating Voltage DC 14.8V
Working Current ≤ 7A
Power Consumption The average power consumption of the machine is 60W
Battery Capacity 10Ah
Physical Characteristics
Operating Temperature 20~+55℃
Storage Temperature -50℃~ +70℃
Overall Dimension 52.5*43.7*21.3cm
Equipment Weight 14.8kg (including battery)
