Outer Rack Backpack COFDM Transmitter Microwave Mobile NLOS Transmitter Handheld Receiver

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 300MHz~860MHz
RF Power 37dBm (5Watts) Video Port High Definition Multimedia Interface/ CVBS
Latency 40-80ms Power Input DC12V 3.5A
High Light

cofdm hd wireless transmitter

,

long range video transmitter

Leave a Message
Product Description

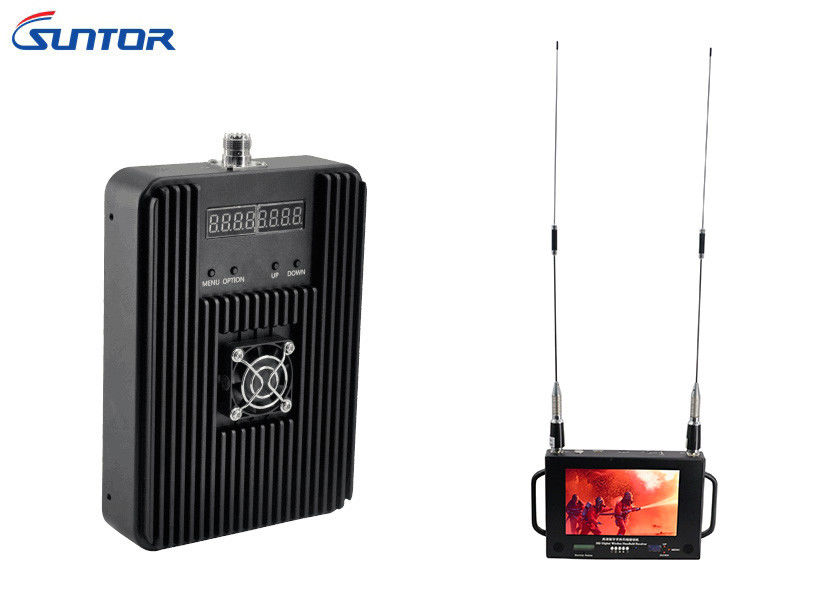

Outer Rack Backpack COFDM Microwave Mobile NLOS Transmitter Handheld Receiver



ST9500T Specs Sheet.pdf



Using effect: https://youtu.be/bYKR3BQdw9s



Describe:

Suntor ST9500T backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission when in the condition of heavy obstacles, such as many building barriers, severe electromagnetic interference, remote mountain town or other harsh environments, which cause command vehicle can’t directly reach the site and forced to parked in vicinity.



Features:

  • Almuminum-unibody housings featured,good impact resisitance and heat dissipation;
  • One channel video and stereo channel audio simultaneously input;
  • Excellent performance in NLOS and movement condition



Application:
This special designed system is for long range distance for any AV equipments , has been widely used in UAV, Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Technical Support Units, Special Forces, Command and Control Posts, Airport, Border Control, Major Incident support.



TX Parameters

Frequnecy

Video: 300MHz~860MHz

Power

37dBm (5Watts)

Video Coding

H.264

Video

Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)

AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)

Audio

Mini HDM

AV in & Audio in

Antenna

UHF

Modulation

Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8

Support QPSK/QAM16/QAM64

Support IFFT: 2K/8K

Guard Interval: 1/4, 1/8, 1/16, 1/32

Bandwidth: 2/3/4/5/6/7/8 MHz

Encryption: AES256

Latency

40-80ms

Power Input

DC12V 3.5A

Size

140*45*215mm

Net Weight

1.2kg
