1Km / 5km NLOS COFDM Transmitter , long range AES 256 wireless High Definition Multimedia Interface transmitter

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST9502T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

cofdm hd wireless transmitter

,

wireless hd video transmitter

Bandwidth:
2/3/4/5/6/7/8 MHz
Encryption:
AES256
Power:
DC12V/3.5A
Weight:
1.6kg
Sensitivity:
≤-104dBm@4Mhz/≤-97dBm@8Mhz
Frequency Range:
300-900Mhz
TX Modulation:
COFDM
Constellation:
QPSK/QAM16/QAM64
Bandwidth:
2/3/4/5/6/7/8 MHz
Encryption:
AES256
Power:
DC12V/3.5A
Weight:
1.6kg
Sensitivity:
≤-104dBm@4Mhz/≤-97dBm@8Mhz
Frequency Range:
300-900Mhz
TX Modulation:
COFDM
Constellation:
QPSK/QAM16/QAM64
Description
1Km / 5km NLOS COFDM Transmitter , long range AES 256 wireless High Definition Multimedia Interface transmitter

1Km/5km NLOS COFDM Video Transmitter , long range AES 256 wireless High Definition Multimedia Interface transmitter





Specification Sheet





Introduction



COFDM audio video transmitter for audio video covert surveillance equipment (ST9502T) is backpack portable uav cofdm video transmitter. Long range digital transmitter & receive can gather information and news through buildings, electromagnetic interference, mountains.

COFDM video transmitter transmitt DVD grade video and pictures at a speed of 450km/h in city, moutain or ENG UAV. Wireless video transmitter performs well in NLOS, LOS wireless transmissiom and it is used news, sports, recovery and live broasdcast video transmitting.





Features



  •
  • New arrival, high-fidelity stereo sound and very sharp
  • Broadcast AV senders
  • COFDM modulation
  • Special design for manpack and outer rack backpack​

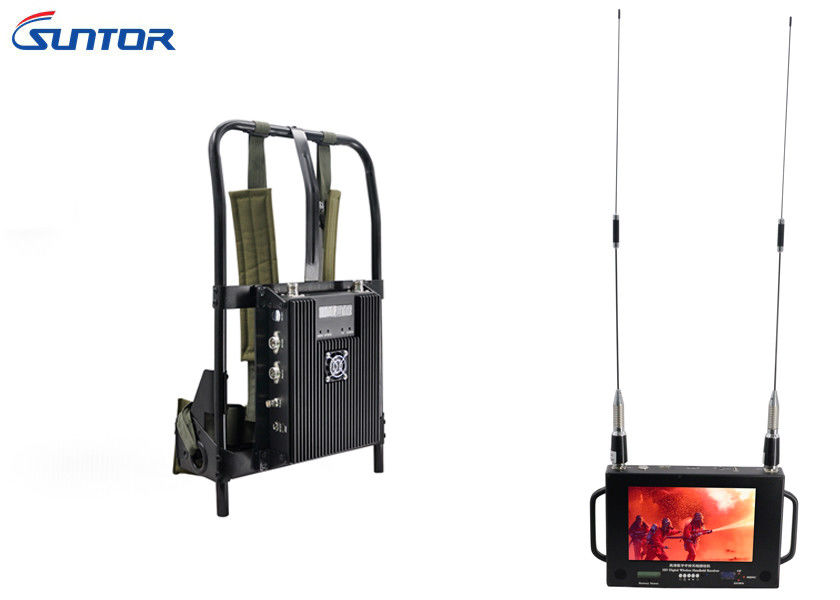

1Km / 5km NLOS COFDM Transmitter , long range AES 256 wireless High Definition Multimedia Interface transmitter 0

1Km / 5km NLOS COFDM Transmitter , long range AES 256 wireless High Definition Multimedia Interface transmitter 1

Power Supply
Working Voltage DC12V/3.5A
Video Transmission
Frequency Output Range 300-900Mhz
RF Bandwidth 2/3/4/5/6/7/8 MHz
Power Output 21-36dbm power output adjustable
Encryption AES256
Constellation QPSK/QAM16/QAM64
FEC 1/2, 2/3,3/4, 5/6, 7/8(optional)
Carrier 2K/8K
GUI 1/4, 1/8, 1/16, 1/32(optional)
RS232 control interface Standard RS232 level, 9600,8,N,1
RS232 data interface Standard RS232 level, support 1200-115200
Encoding
A/V Bitrate 64, 96, 112, 128, 160, 192, 224, 256, 320, 384Kbps
Audio encoding MPEG1 Layer2
MPEG1 Layer2 Min 720x480/60i(720x576/50i)
Max 1920x1080P/60P Self-adapted
Video encoding H.264
Audio Receiving
Audio RX frequency range 300-900Mhz
Audio RX sensitivity ≤-104dBm@4Mhz/≤-97dBm@8Mhz
Audio TX modulation COFDM
Frequency step 150Khz
Audio decoding overall bitrate 4800bps
Audio output 2.1Vp (open circuit output)
Environment
Operating Humidity 10%—95%
Working Temperatue -15℃—60℃
